Views: 0 Author: Site Editor Publish Time: 2026-08-24 Origin: Site
A check valve has a simple purpose: allow fluid to move in the intended direction while preventing it from flowing backward.
This sounds straightforward, but selecting the right check valve for a piping system involves more than choosing a nominal diameter. Installation direction, valve structure, pressure rating, connection standard, material, and the actual function required by the system all need to be considered.
For importers, distributors, and engineering buyers, another important question is whether the valve is actually being used for backflow prevention or whether a manually operated shut-off valve is required instead.
SHUANGLIN VALVE supplies Brass Check Valve solutions in DN15-DN100, including vertical and horizontal configurations, as well as related products such as foot valves and check valves for water-meter applications.
This guide explains how brass check valves work, how vertical and horizontal designs differ, and what buyers should consider before selecting or ordering a check valve.
A Brass Check Valve, also known as a brass non return valve, is an automatic valve designed to control fluid direction.
Unlike a ball valve, gate valve, or globe valve, a check valve does not normally require a person to turn a handle during normal operation. Its internal closing element responds to the direction and pressure of the fluid.
The basic operating logic is:
Forward flow → valve opens
Reverse flow → valve closes
This makes a check valve particularly useful in systems where preventing backflow is more important than manually controlling the flow rate.
Common applications include:
· Water supply systems
· Plumbing systems
· Pump pipelines
· Heating systems
· HVAC systems
· General water circulation
· Pipeline protection
The important point for buyers is that a check valve is primarily a direction-control device, not a replacement for a manual shut-off valve.
Backflow can occur when the pressure or flow conditions in a pipeline change.
For example, when a pump stops operating, the pressure on one side of the pipeline may change. Water that was previously moving forward can then attempt to move in the opposite direction.
Depending on the system, reverse flow can cause problems such as:
· Unwanted water movement
· Loss of intended flow direction
· Reverse flow through pump systems
· Interference between connected pipelines
· Additional stress on downstream equipment
A check valve provides a simple automatic response to this condition.
Instead of relying on an operator to close a valve manually, the internal closing element responds to the flow direction.
That is the fundamental reason check valves are used in water and piping systems.
The working principle of a check valve can be understood through two operating conditions.
When fluid flows in the intended direction, the pressure acting on the internal closing element causes it to move away from the sealing position.
The flow passage opens, allowing fluid to pass through the valve.
In simplified form:
Upstream pressure → opening force → valve opens → fluid flows forward
When the flow direction reverses, the internal closing element moves back toward the sealing position.
The valve closes the passage and restricts reverse flow.
The operating sequence becomes:
Reverse flow → closing movement → valve closes → backflow is restricted
The exact movement of the internal components depends on the valve structure.
This is why buyers should not assume that every Brass Check Valve has identical installation requirements simply because the products perform the same basic function.
The internal closing mechanism responds to changes in fluid pressure and flow direction.
For a check valve to operate correctly, several factors matter:
· Fluid direction
· Differential pressure
· Valve structure
· Internal component design
· Installation orientation
· System operating conditions
This leads to an important selection principle:
A check valve should be selected according to the actual piping conditions, not simply by matching the pipe diameter.
For procurement teams, DN size is only one part of the specification.
SHUANGLIN VALVE supplies both Brass Vertical Check Valve and Brass Horizontal Check Valve products.
Both are designed for backflow prevention, but their structures and intended installation arrangements are different.
The appropriate choice depends on the valve design and the installation requirements of the piping system.
SHUANGLIN VALVE brass vertical check valves are available in:
DN15-DN100

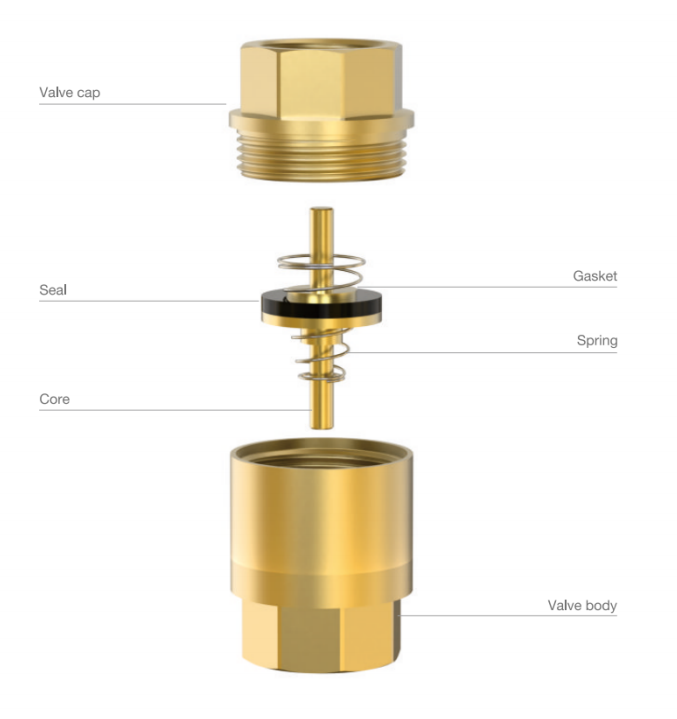

The vertical check valve uses a vertical internal arrangement in which the internal closing components respond to the flow conditions inside the valve.
For this model, the valve body, valve cover, valve core, and other main components use HPb57-3 brass according to the product structure.
When selecting a vertical check valve, buyers should confirm the manufacturer's specified installation direction rather than assuming that any check valve can be installed vertically.
SHUANGLIN VALVE brass horizontal check valves are also available from:
DN15-DN100
The horizontal model has a different internal arrangement from the vertical model.
For this product:
· Valve Body: HPb59-1 brass
· Other components: HPb57-3 brass
This difference is a useful example of why professional valve manufacturing does not necessarily mean using one brass alloy for every component.
The material selection can vary according to the valve structure and the function of individual components.
A common assumption when comparing brass valves is that every component should be manufactured from exactly the same brass alloy.
In practice, valve manufacturers may select materials according to the requirements of individual components and the overall product design.
For example, SHUANGLIN VALVE uses different material combinations for its vertical and horizontal brass check valve designs.
The vertical model uses HPb57-3 brass for its valve body, valve cover, valve core, and other main components.
The horizontal model uses HPb59-1 brass for the valve body and HPb57-3 brass for other components.
For buyers, the more useful question is therefore not simply:
“Is the whole valve made from one type of brass?”
Instead, ask:
“Which materials are used for the valve body and key components, and is the material selection appropriate for the product structure?”
This is particularly important when comparing products from different suppliers.
SHUANGLIN VALVE brass check valves are available in DN15-DN100, covering a broad range of water and plumbing applications.
Specification | SHUANGLIN VALVE Brass Check Valve |
Product Type | Vertical / Horizontal Brass Check Valve |
Size Range | DN15-DN100 |
Pressure Rating | PN16 |
Working Temperature | -10°C to 120°C |
Thread Standard | BSP / NPT |
Vertical Model Material | HPb57-3 brass |
Horizontal Model Material | Valve body HPb59-1 brass; other components HPb57-3 |
The exact component configuration should be confirmed according to the specific model and technical drawing before placing a large order.
Choosing a Brass Check Valve should be treated as a system-matching decision rather than simply a product-size decision.
A practical selection process can follow these steps.
First ask:
Why does the system need a check valve?
If the main requirement is preventing reverse water flow, a check valve may be appropriate.
If the operator needs to manually open, close, or regulate the flow, a different valve type may be required.
For example:
· Backflow prevention → Check Valve
· Manual shut-off → Ball Valve or Gate Valve
· Flow regulation → Globe Valve or Flow Control Valve
This distinction can prevent an incorrect valve selection before the purchasing stage.
The next question is:
Where will the valve be installed?
Determine whether the application requires a vertical or horizontal check valve according to the manufacturer's installation requirements.
This matters because the internal closing mechanism is designed around the valve's structure and intended operating position.
Do not select a valve simply because its nominal size matches the pipeline.
SHUANGLIN VALVE brass check valves cover:
DN15-DN100
The selected size should correspond to the piping system and connection requirements.
However, matching DN alone does not guarantee that the valve is suitable.
Buyers should also consider:
· Connection type
· Flow requirements
· Installation space
· Working pressure
· Valve structure
Thread compatibility is particularly important for international valve purchasing.
SHUANGLIN VALVE provides:
BSP and NPT thread options.
BSP and NPT are different thread systems, so buyers should confirm the required standard before ordering.
A valve with the correct nominal size but the wrong thread standard may still be unsuitable for installation.
For importers supplying multiple markets, this is one of the specifications worth confirming before production.
SHUANGLIN VALVE brass check valves are rated:
PN16
The pressure requirement of the valve should be considered together with the actual operating conditions of the pipeline.
Do not select a valve based only on the nominal pressure of the pipe. The valve, pipeline, fittings, and other connected components should all be suitable for the intended system conditions.
For brass check valves, buyers should confirm the material used for the valve body and other major components.
SHUANGLIN VALVE uses:
· HPb57-3 for the main components of the vertical model
· HPb59-1 for the horizontal valve body
· HPb57-3 for other components of the horizontal model
This provides a more meaningful basis for supplier comparison than simply asking whether the product is “brass.”
Many purchasing problems occur because buyers focus on a single specification instead of looking at the entire valve application.
A DN50 valve is not automatically suitable simply because the pipeline is DN50.
Installation direction, connection standard, pressure rating, and valve structure also need to match the application.
A check valve is primarily designed to prevent reverse flow.
If an operator needs to deliberately shut off the pipeline, a manually operated valve such as a brass ball valve or brass gate valve may be required.
Vertical and horizontal check valves have different structures.
Before ordering, confirm the permitted installation position for the specific model.
International buyers should never assume that the same nominal size means the same thread.
Confirm:
BSP or NPT
before production.
A lower unit price does not necessarily represent a lower total purchasing cost.
Importers should also compare:
· Material specifications
· Valve structure
· Pressure rating
· Thread standard
· Size range
· Inspection requirements
· Standard or customized production
· Lead time
A professional supplier should be able to explain these specifications clearly.
The Brass Check Valve range is part of a broader check valve product group.
For different applications and material requirements, SHUANGLIN VALVE also provides related products.
A Foot Valve combines flow-direction control with an installation configuration designed for applications such as water intake and pump suction systems.
It can be considered when the piping system requires a check-valve function at the intake side.
The appropriate model should be selected according to the actual pump and pipeline configuration.
SHUANGLIN VALVE also provides a check valve solution referred to as a Water Meter Before Gauge valve for relevant water-meter applications.
For procurement purposes, buyers should confirm the actual installation location, connection specification, and required valve configuration before ordering.
In addition to brass models, SHUANGLIN VALVE also has check valve options in other materials.
Available configurations include:

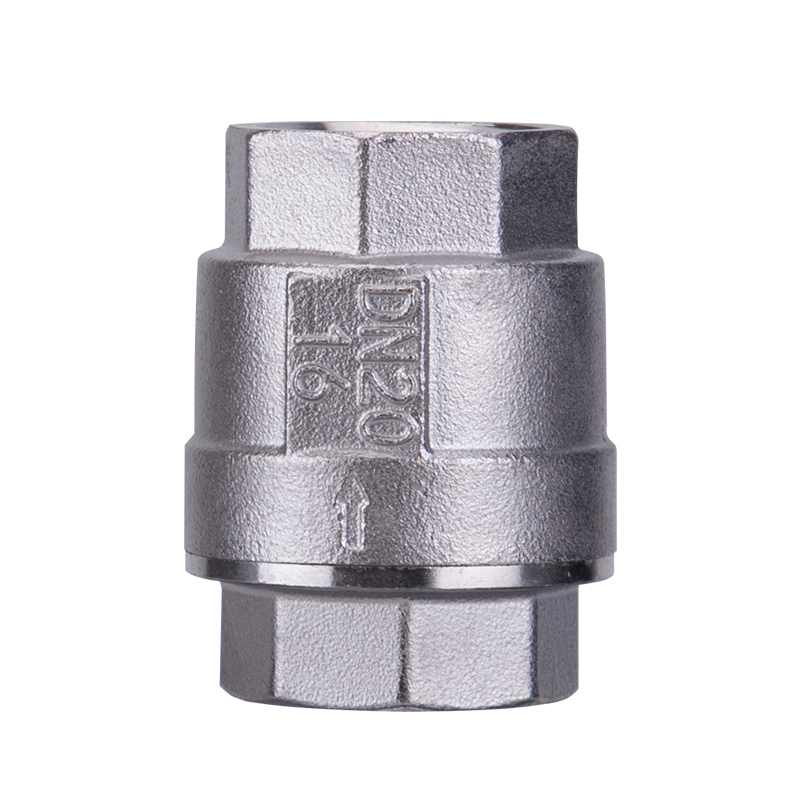

· Stainless Steel Vertical Check Valve
· Stainless Steel Horizontal Check Valve
Size range:
DN15-DN50
SHUANGLIN VALVE also provides:

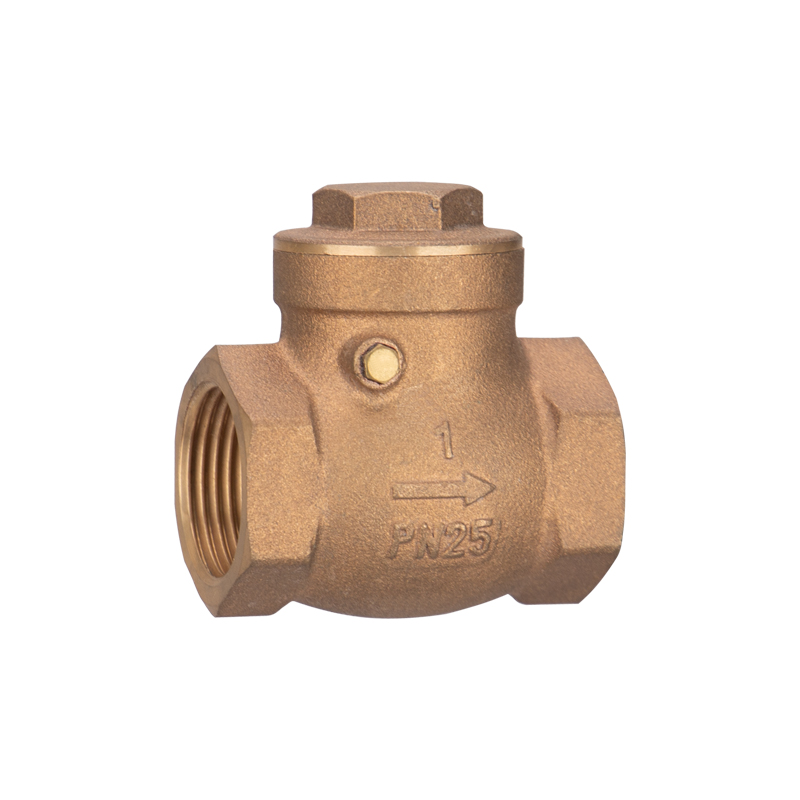

· Bronze Horizontal Check Valve
Size range:
DN15-DN50
These products can be considered when the application or project specification calls for a material other than brass.
However, the material choice should be based on the actual application requirements rather than assuming that stainless steel or bronze is automatically more suitable.
Brass check valves can be used in a variety of water and fluid-control applications.
Check valves can help maintain the intended flow direction within water supply pipelines.

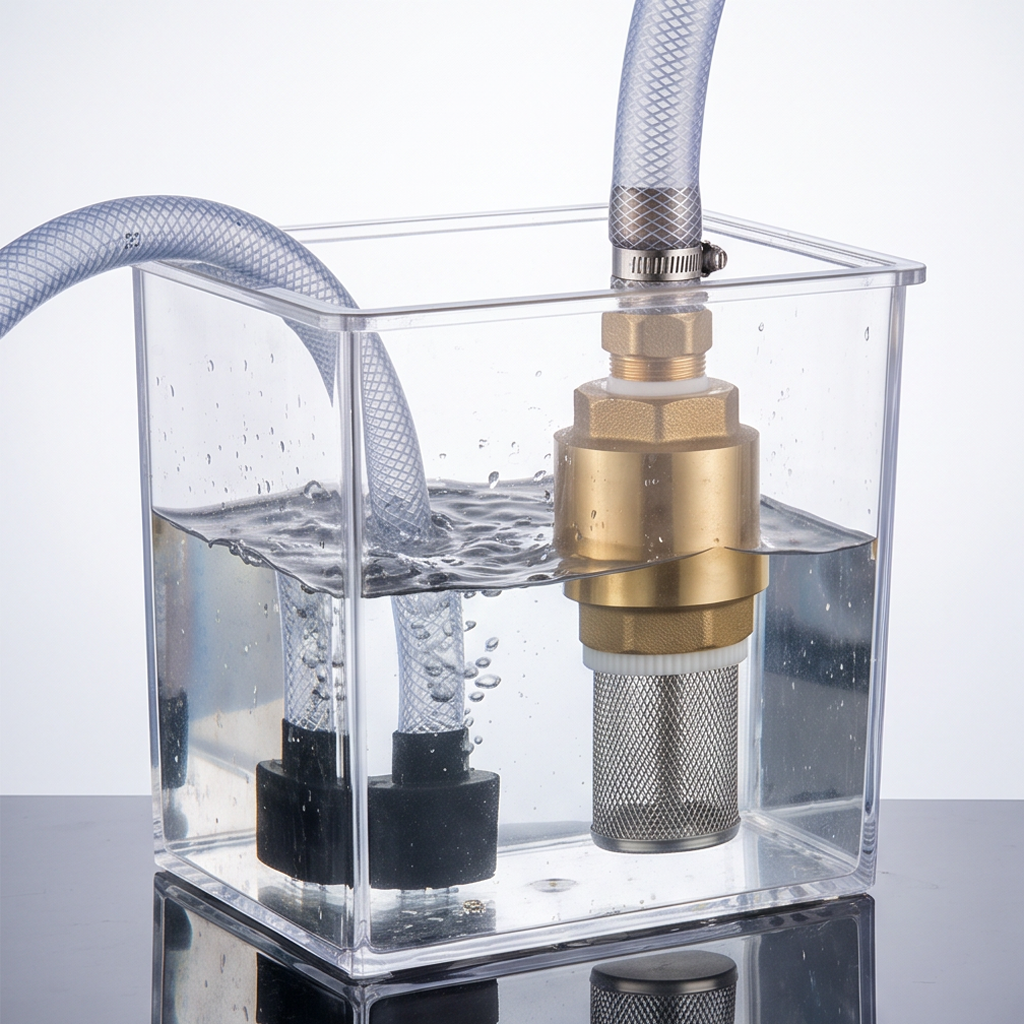

In plumbing installations, check valves can be used where reverse water flow needs to be restricted.

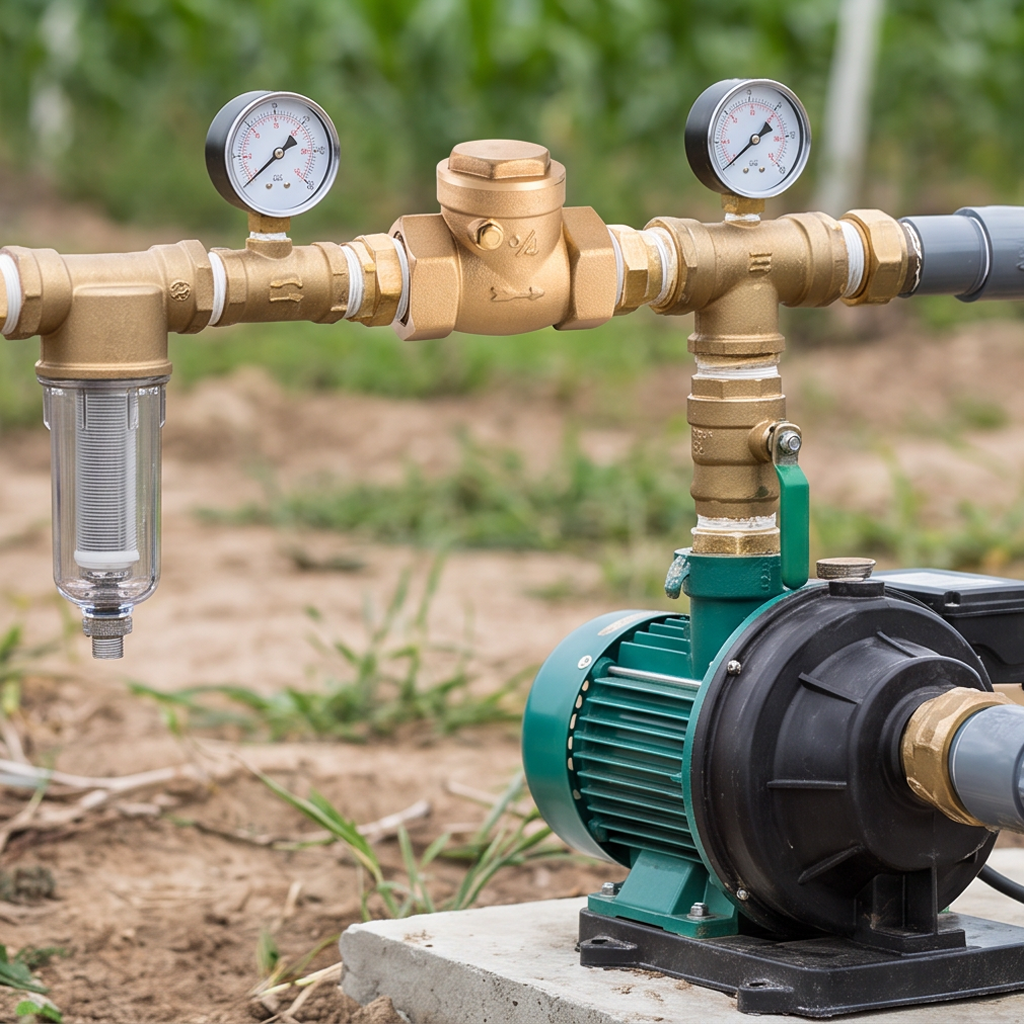

Pump systems are a common application because changes in pump operation can affect flow direction.
A check valve can provide automatic backflow prevention without requiring manual operation.
Where water circulation and flow direction need to be maintained, an appropriately selected check valve can form part of the pipeline system.
The exact valve type should still be selected according to system conditions and the manufacturer's specifications.
It is useful to distinguish these three valve types before making a purchasing decision.
Valve Type | Main Function | Manual Operation |
Brass Check Valve | Prevent reverse flow | Normally automatic |
Brass Ball Valve | Shut-off / on-off control | Yes |
Brass Gate Valve | Pipeline isolation | Yes |
The difference is fundamentally about who or what controls the valve.
A ball valve or gate valve normally relies on an operator to change its position.
A check valve responds automatically to fluid flow conditions.
Therefore, these valves can sometimes appear in the same piping system because they perform different functions rather than because one replaces the other.
For standard valve purchasing, product specifications may be relatively straightforward.
For OEM or customized orders, however, the purchasing process becomes more dependent on the manufacturer's ability to control materials, dimensions, machining, assembly, testing, and production consistency.
SHUANGLIN VALVE provides brass valve manufacturing solutions for importers, distributors, engineering buyers, and OEM customers.
Our standard brass check valve range covers DN15-DN100, with BSP and NPT thread options and PN16 pressure rating.
For standard products, there is no MOQ requirement, and standard products can generally be shipped within one week.
For customized products, the MOQ depends on the product type and size, with a typical range of approximately 3,000-5,000 pieces. Customized production generally requires around 35 days.
For buyers, the advantage of communicating directly with the manufacturer is that product structure, material requirements, dimensions, and customization details can be discussed before production rather than being treated only as a finished-product purchase.
Before placing an order for a brass non return valve or another check valve, we recommend confirming the following information:
· Vertical Check Valve
· Horizontal Check Valve
· Foot Valve
· Other specialized check valve
· DN15-DN100 for brass models
· DN15-DN50 for the stainless steel and bronze models described above
· BSP
· NPT
· PN16
· -10°C to 120°C
Confirm the material of:
· Valve body
· Valve cover
· Valve core
· Other major components
Confirm whether the selected model is designed for the intended installation orientation.
Determine whether the order is for:
· Standard products
· OEM products
· Customized products
This information allows the manufacturer to confirm the appropriate model before production.
A brass check valve allows fluid to flow in the intended direction while restricting reverse flow. It operates automatically according to changes in fluid direction and pressure.
During forward flow, the internal closing element moves away from the sealing position to allow fluid through. When the flow reverses, the closing element moves back toward the sealing position to restrict backflow.
The main difference is the internal structure and intended installation arrangement. The correct choice should be based on the specific valve design and the installation requirements of the piping system.
SHUANGLIN VALVE brass vertical and horizontal check valves are available from DN15 to DN100.
The brass check valves are rated PN16.
SHUANGLIN VALVE provides BSP and NPT thread options for its brass check valve range.
The vertical model uses HPb57-3 brass for its main components. The horizontal model uses HPb59-1 brass for the valve body and HPb57-3 brass for its other components.
A check valve is primarily used for automatic backflow prevention, while a ball valve is manually operated for opening and closing the pipeline.
A foot valve is a check-valve-related product commonly used at the intake side of pump and water suction systems, where maintaining flow direction is important.
The right Brass Check Valve should not be selected by size alone.
A professional selection process starts with the purpose of the valve and then considers:
flow direction → installation orientation → valve structure → DN size → thread standard → pressure → temperature → material → application.
For general water and plumbing systems, SHUANGLIN VALVE provides brass vertical and horizontal check valves from DN15-DN100, with BSP and NPT connection options and PN16 pressure rating.
For projects requiring different materials or specialized configurations, stainless steel, bronze, foot valve, and other check valve solutions are also available.
For standard products, there is no MOQ requirement and shipment is generally within one week. For customized valve projects, SHUANGLIN VALVE can discuss the required structure, size, materials, and production requirements with OEM and wholesale buyers.
If you are unsure which check valve configuration is suitable for your pipeline, provide the pipe size, installation direction, connection standard, working pressure, and application. These details allow the appropriate valve model to be evaluated before ordering.
