Brass Ball Valve Guide: Types, Sizes And Applications

When selecting a brass ball valve for a plumbing, water supply, or HVAC project, buyers usually need to consider more than just the valve appearance.

A suitable brass ball valve selection requires understanding:

· Valve structure

· Size range

· Material specifications

· Thread standards

· Pressure rating

· Application requirements

· Supplier manufacturing capability

For importers, distributors, and engineering companies, choosing the correct valve can directly affect installation efficiency, product reliability, and long-term customer satisfaction.

SHUANGLIN VALVE manufactures brass valves for global customers, providing manual brass ball valves and customized valve solutions for different market requirements.

This guide introduces the structure, specifications, types, and applications of brass ball valves to help buyers better understand how to select the right product and supplier.

What Is a Manual Brass Ball Valve?

A manual brass ball valve is a quarter-turn shut-off valve that uses a rotating ball inside the valve body to control fluid flow.

When the handle is turned 90 degrees:

· The internal ball passage aligns with the pipeline, allowing fluid to flow.

· The ball rotates to block the passage, stopping fluid flow.

Compared with some traditional valve designs, brass ball valves provide quick operation and convenient shut-off control.

Manual brass ball valves are widely used in:

· Residential plumbing systems

· Commercial water supply systems

· HVAC pipelines

· Heating systems

· General fluid control applications

Because of their simple structure and easy operation, brass ball valves are commonly selected by distributors, contractors, and OEM customers.

How Does a Brass Ball Valve Work?

The working principle of a brass ball valve is based on the rotation of the internal ball.

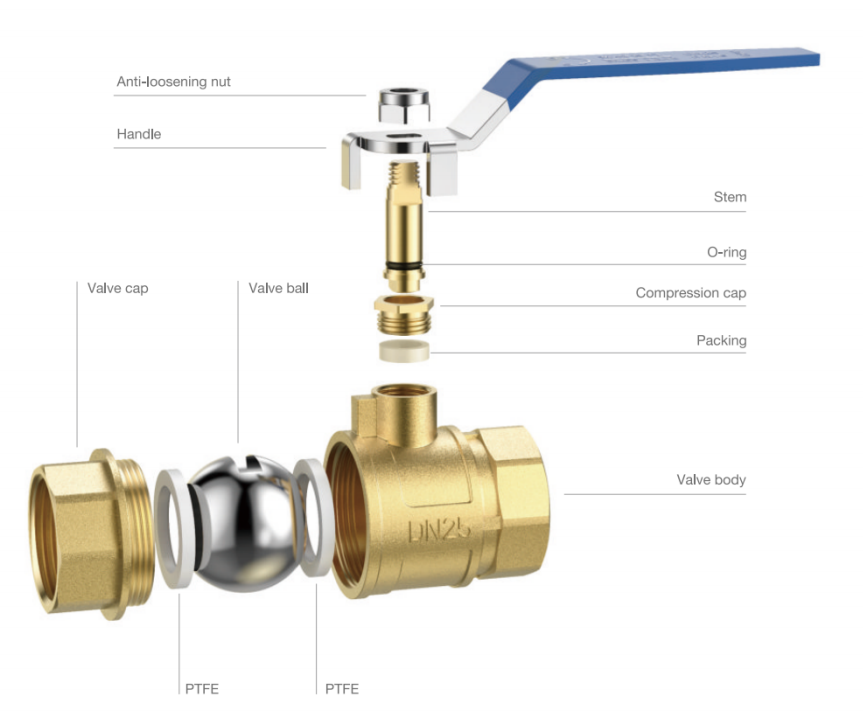

The main components include:

Brass Valve Body

The valve body is the main pressure-bearing component of the valve.

For SHUANGLIN VALVE manual brass ball valves, the valve body is manufactured using HPb59-1 brass.

This material provides suitable strength, corrosion resistance, and machining performance for water-related applications.

Valve Cap

The valve cap connects with the valve body and supports the internal structure.

SHUANGLIN VALVE uses HPb59-1 brass for the valve cap according to product design requirements.

Valve Stem

The valve stem transfers the operating force from the handle to the internal ball.

The valve stem uses HPb57-3 brass to meet functional requirements during operation.

Compression Cap

The compression cap is an important component for maintaining the valve structure and sealing performance.

SHUANGLIN VALVE uses HPb57-3 brass for the compression cap according to product requirements.

Ball and Sealing Components

The internal ball controls the opening and closing function.

When selecting a brass ball valve, buyers should consider:

· Material compatibility

· Sealing performance

· Operating environment

Brass Ball Valve DN15-DN100 Specification Guide

SHUANGLIN VALVE manual brass ball valves are available in sizes from:

DN15 to DN100

Most standard models are commonly produced in the DN15-DN50 range, while larger sizes up to DN100 can be manufactured according to specific product requirements.

The correct valve size depends on:

· Pipeline diameter

· Required flow capacity

· Installation conditions

· Application requirements

For international buyers, confirming the correct valve size before ordering helps avoid installation problems and ensures compatibility with existing systems.

Manual Brass Ball Valve Technical Specifications

BSP and NPT Thread Standards for Brass Ball Valves

Thread standard is an important factor when purchasing brass ball valves for international markets.

SHUANGLIN VALVE provides different connection options according to customer requirements.

BSP Thread

BSP (British Standard Pipe) threads are widely used in:

· Europe

· Asia

· Middle East

· Many international plumbing markets

NPT Thread

NPT (National Pipe Thread) is commonly used in:

· North America

· Markets following US piping standards

Before placing an order, buyers should confirm:

· Local installation standards

· Customer specifications

· Pipeline connection requirements

Choosing the correct thread type helps ensure smooth installation after delivery.

Pressure and Temperature Rating of Brass Ball Valves

When selecting a brass ball valve, working conditions should always be considered.

Working Pressure

SHUANGLIN VALVE manual brass ball valves are designed for working pressure up to:

1.6 MPa

Working Temperature

The typical working temperature range is:

-10℃ to 120℃

Actual valve selection should consider:

· Fluid type

· Operating environment

· Pipeline conditions

· System requirements

SHUANGLIN VALVE Manual Brass Ball Valve Series

Besides standard manual brass ball valves, SHUANGLIN VALVE also provides different ball valve solutions for various applications.

Standard Manual Brass Ball Valve

The standard manual brass ball valve is designed for general shut-off applications.

It is commonly used in:

· Water supply systems

· Plumbing installations

· HVAC pipelines

This type of valve is widely selected by distributors and contractors due to its simple operation and practical application range.

Brass Thermometer Ball Valve

A brass thermometer ball valve combines shut-off control with temperature monitoring functionality.

It is commonly used in:

· Heating systems

· HVAC applications

· Water circulation systems

This design helps users monitor system temperature while controlling pipeline flow.

Brass Ball Valve with Filter

A brass ball valve with filter combines flow control and filtration functions.

Compared with installing separate components, this integrated design can simplify pipeline installation.

Common applications include:

· Water supply systems

· Heating systems

· Equipment protection applications

Magnetic Lock Brass Ball Valve

A magnetic lock brass ball valve uses a special locking mechanism to control valve operation.

It is suitable for applications where controlled access is required, such as:

· Water management systems

· Utility applications

· Pipeline control systems

PPR Ball Valve

PPR ball valves are designed for PPR piping systems.

They are commonly used in:

· Residential plumbing

· Water supply installations

· PPR pipeline connections

The valve design provides convenient shut-off control for PPR piping applications.

Mini Brass Ball Valve

Mini brass ball valves feature a compact structure and are suitable for applications with limited installation space.

Common applications include:

· Small pipeline systems

· Equipment connections

· Compact plumbing applications

Applications of Brass Ball Valves

Brass ball valves are widely used in different pipeline systems.

Plumbing Systems

In residential and commercial plumbing systems, brass ball valves are commonly used for:

· Water control

· Pipeline isolation

· Maintenance shut-off points

Water Supply Systems

Brass ball valves are often installed in:

· Building water supply systems

· Distribution pipelines

· Water control equipment

HVAC and Heating Systems

In HVAC applications, brass ball valves are used for:

· Pipeline isolation

· Equipment connection

· Water flow control

Equipment and General Fluid Systems

Depending on product specifications, brass ball valves can also be applied in various equipment and fluid control systems.

How to Choose the Right Brass Ball Valve?

Professional buyers usually evaluate several factors before selecting a brass ball valve.

1. Confirm the Application

Different applications may require different valve designs.

Consider:

· Water system type

· Installation environment

· Operation frequency

2. Select the Correct Size

Choose the valve size according to:

· Pipeline diameter

· Flow requirements

· Installation conditions

3. Confirm Material Specifications

A professional valve supplier should provide clear information about:

· Valve body material

· Internal component materials

· Manufacturing standards

Different components may use different brass alloys according to their functional requirements.

4. Confirm Connection Standards

Before ordering, confirm whether the project requires:

· BSP thread

· NPT thread

5. Evaluate the Supplier's Manufacturing Capability

A reliable brass valve manufacturer should provide:

· Stable production capability

· Quality inspection process

· Technical support

· OEM manufacturing options

Why Choose SHUANGLIN VALVE for Brass Ball Valves?

SHUANGLIN VALVE is a brass valve manufacturer providing valve solutions for international distributors, importers, and OEM customers.

Our product range includes:

· Manual brass ball valves

· Brass thermometer ball valves

· Brass ball valves with filter

· Magnetic lock brass ball valves

· PPR ball valves

· Mini brass ball valves

For standard products:

· No MOQ requirement

· Shipment within 7 days

For customized products:

· MOQ depends on product type and size requirements

· Typical OEM projects are around 3,000-5,000 pcs/model

· Production lead time is around 35 days

SHUANGLIN VALVE supports customers from product selection, technical communication, and manufacturing to final delivery.

Frequently Asked Questions About Brass Ball Valves

What is a brass ball valve used for?

A brass ball valve is mainly used for controlling fluid flow in plumbing, water supply, HVAC, and general pipeline systems.

What sizes are available for brass ball valves?

SHUANGLIN VALVE manual brass ball valves are available from DN15 to DN100. Most standard models are produced in DN15-DN50, while larger sizes can be manufactured according to product requirements.

What materials are used for brass ball valves?

The valve body and valve cap use HPb59-1 brass. The valve stem and compression cap use HPb57-3 brass according to component requirements.

What is the working pressure of brass ball valves?

The working pressure is up to 1.6 MPa depending on the specific product design.

What thread standards are available for brass ball valves?

Brass ball valves can be supplied with BSP or NPT thread options according to customer requirements.

Does SHUANGLIN VALVE provide OEM brass ball valves?

Yes. SHUANGLIN VALVE provides OEM brass valve manufacturing solutions for distributors, importers, and brand owners.
