Temperature-measuring Ball Valve

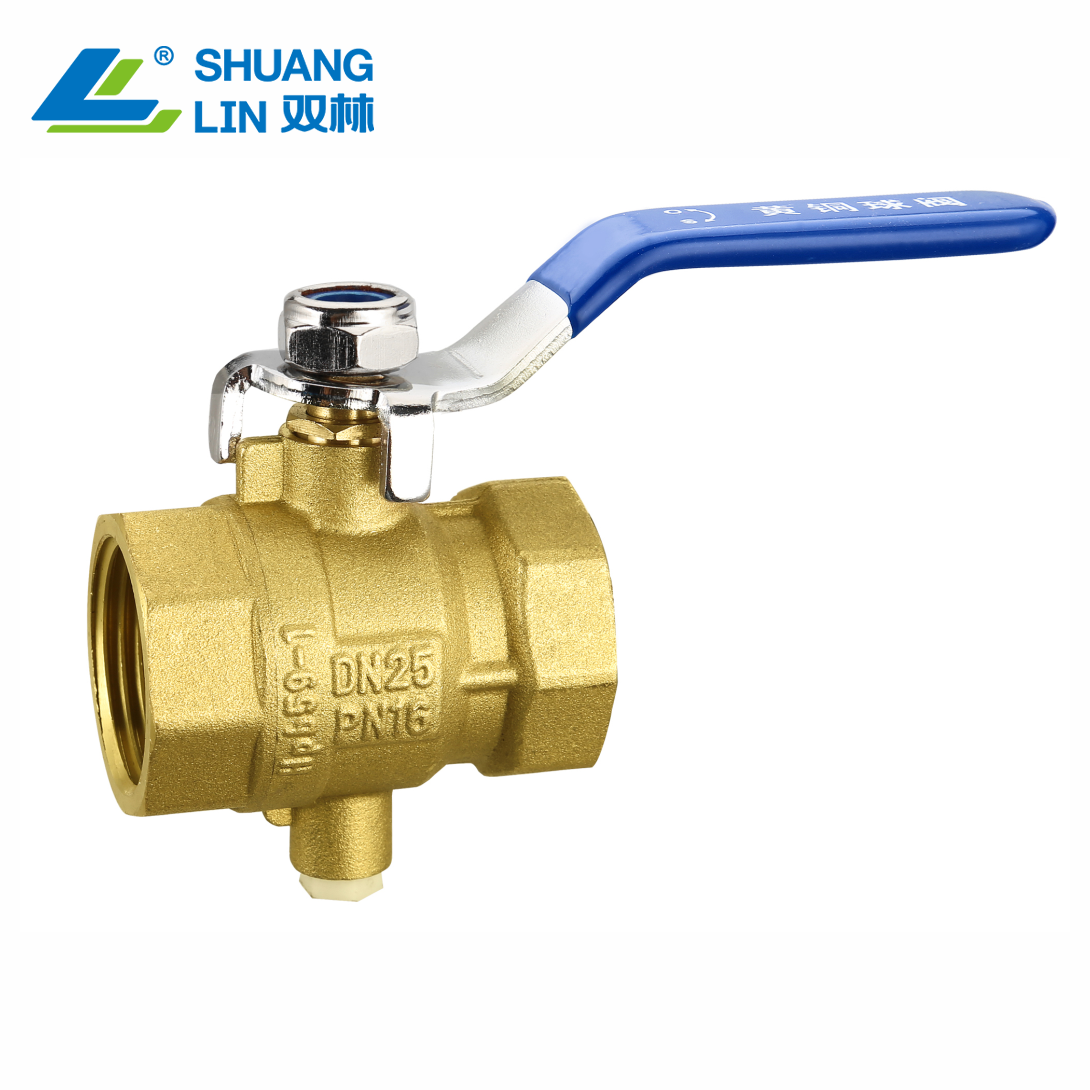

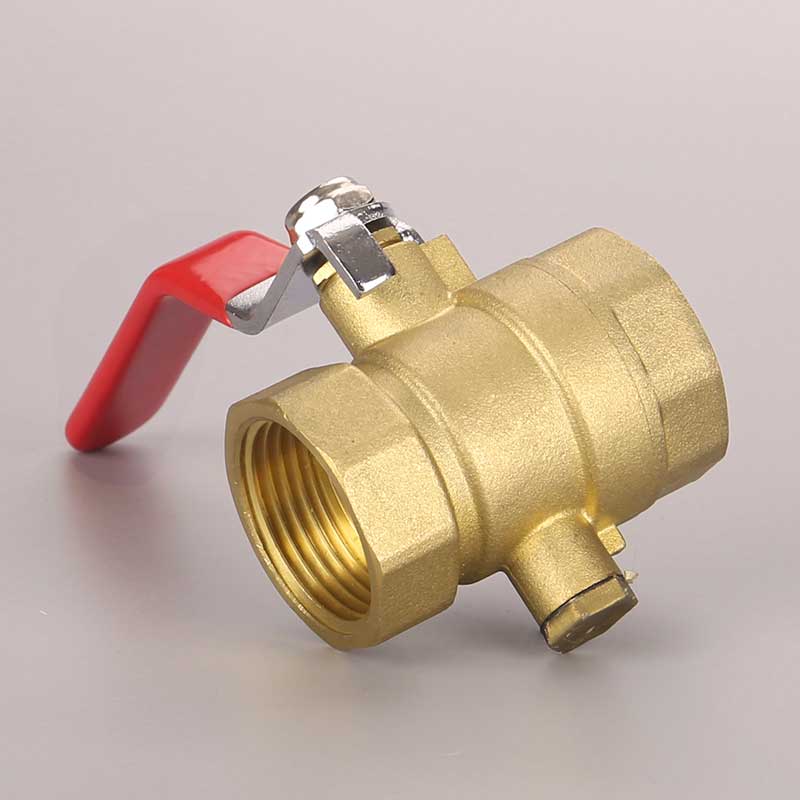

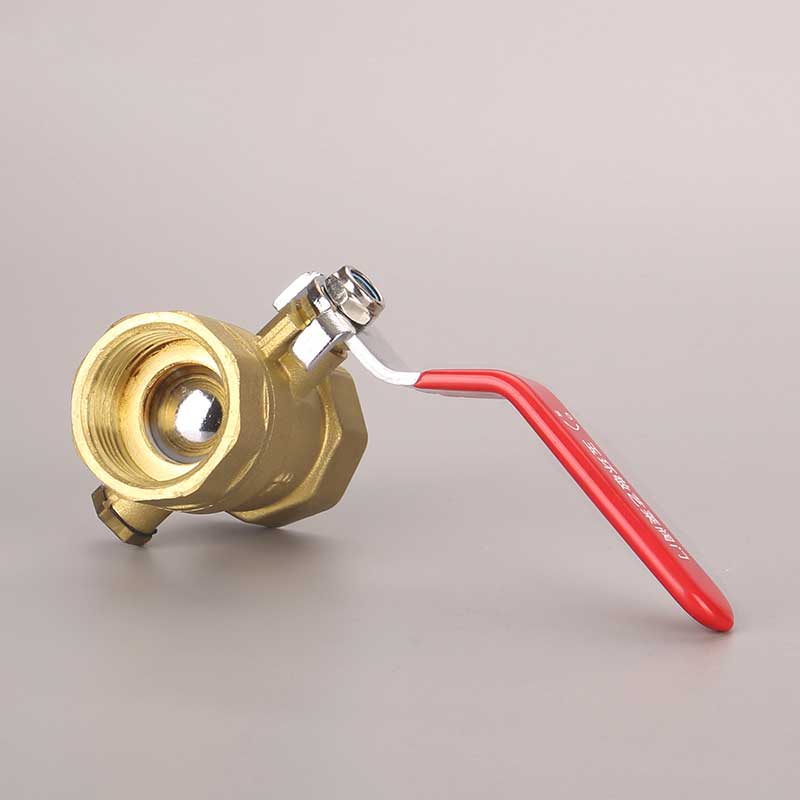

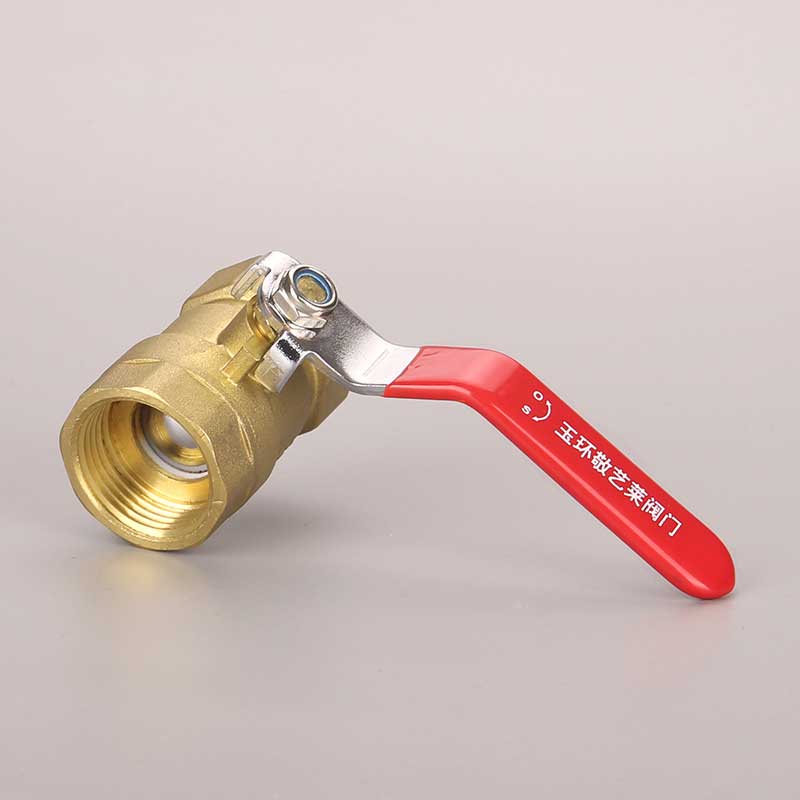

SHUANGLIN VALVE Brass Temperature-Measuring Ball Valve – Integrated Thermometer Ball Valve DN15-DN50

The SHUANGLIN VALVE Brass Temperature-Measuring Ball Valve is an innovative 2-way isolation valve that combines reliable flow control with integrated temperature monitoring in a single compact unit. Featuring a built-in thermometer port that allows direct temperature measurement of the fluid medium, this valve eliminates the need for separate temperature sensor installations, saving space and reducing system complexity. The long lever handle provides comfortable operation and greater leverage for easy quarter-turn (90°) on-off control.

Constructed from high-quality forged brass with a natural finish, SHUANGLIN VALVE temperature-measuring ball valves offer excellent corrosion resistance, high strength, and long service life. The full port design minimizes pressure drop and ensures maximum flow capacity. The chrome-plated brass ball and PTFE seats provide superior sealing performance with zero leakage, while the integrated thermometer port allows quick and accurate temperature readings without system shutdown.

Available in DN15 to DN50 (1/2" to 2") sizes with standard female threaded connections (NPT/BSP), these valves are rated to PN16 (1.6MPa / 232 PSI) with a working temperature range of -10°C to 120°C. They are suitable for water, oil, gas, and other non-corrosive fluids. SHUANGLIN VALVE products are manufactured under strict quality control and comply with ISO9001 and CE standards.

Key Features:

• Integrated Temperature Measurement: Built-in thermometer port enables real-time fluid temperature monitoring

• Long Lever Handle: Extended handle for comfortable grip and effortless operation

• Quarter-Turn Operation: 90° rotation for fast, reliable on-off control

• Full Port Design: Minimizes pressure drop and maximizes flow capacity

• Premium Forged Brass Construction: Corrosion-resistant, durable, and long-lasting

• PTFE Seats & Chrome-Plated Ball: Zero leakage, smooth operation, extended service life

• Available Sizes: DN15, DN20, DN25, DN32, DN40, DN50

• Pressure Rating: PN16 (1.6MPa / 232 PSI)

• Temperature Range: -10°C to 120°C

• Thread Standards: NPT, BSP

• Certifications: ISO9001, CE

Applications:

• HVAC heating and chilled water systems requiring temperature monitoring

• Hydronic heating and cooling circuits

• Plumbing and water supply systems

• Industrial fluid control with temperature verification

• Heat metering and energy measurement systems

Get a Quote Today! Contact SHUANGLIN VALVE for catalogs, samples, or customized solutions. We reply within 24 hours.
