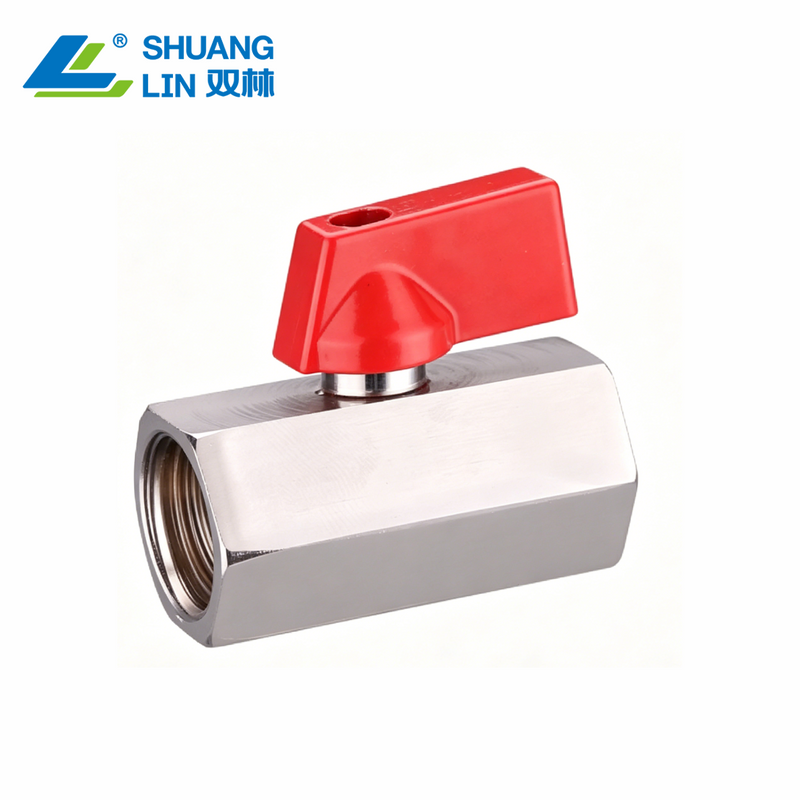

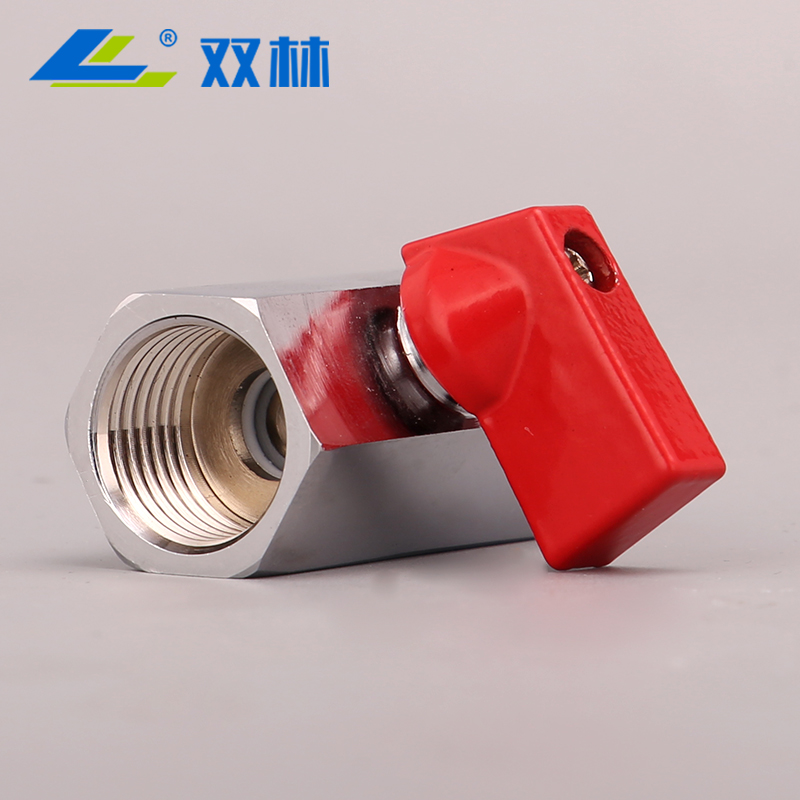

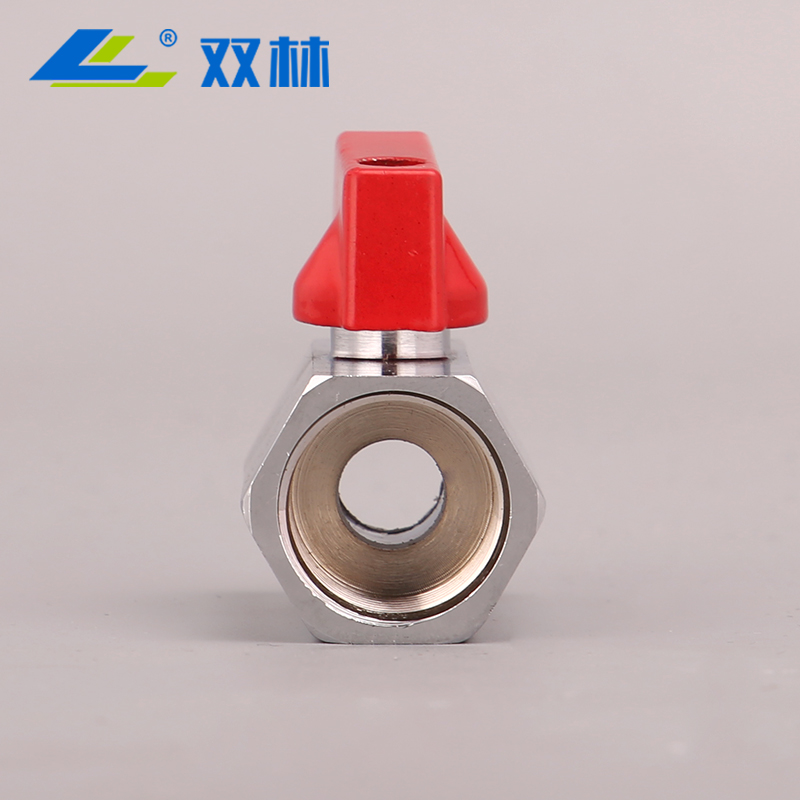

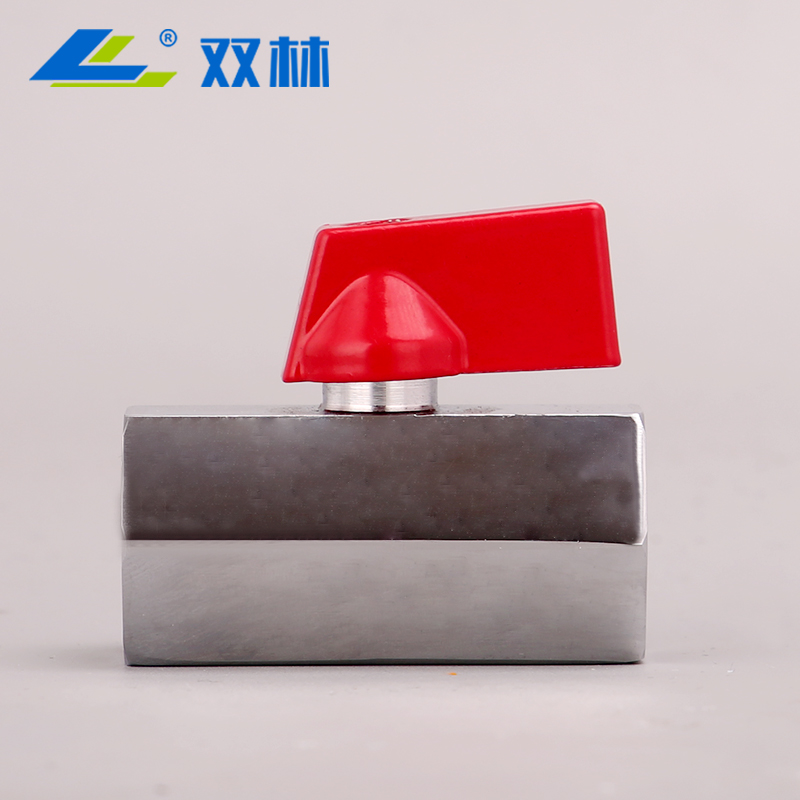

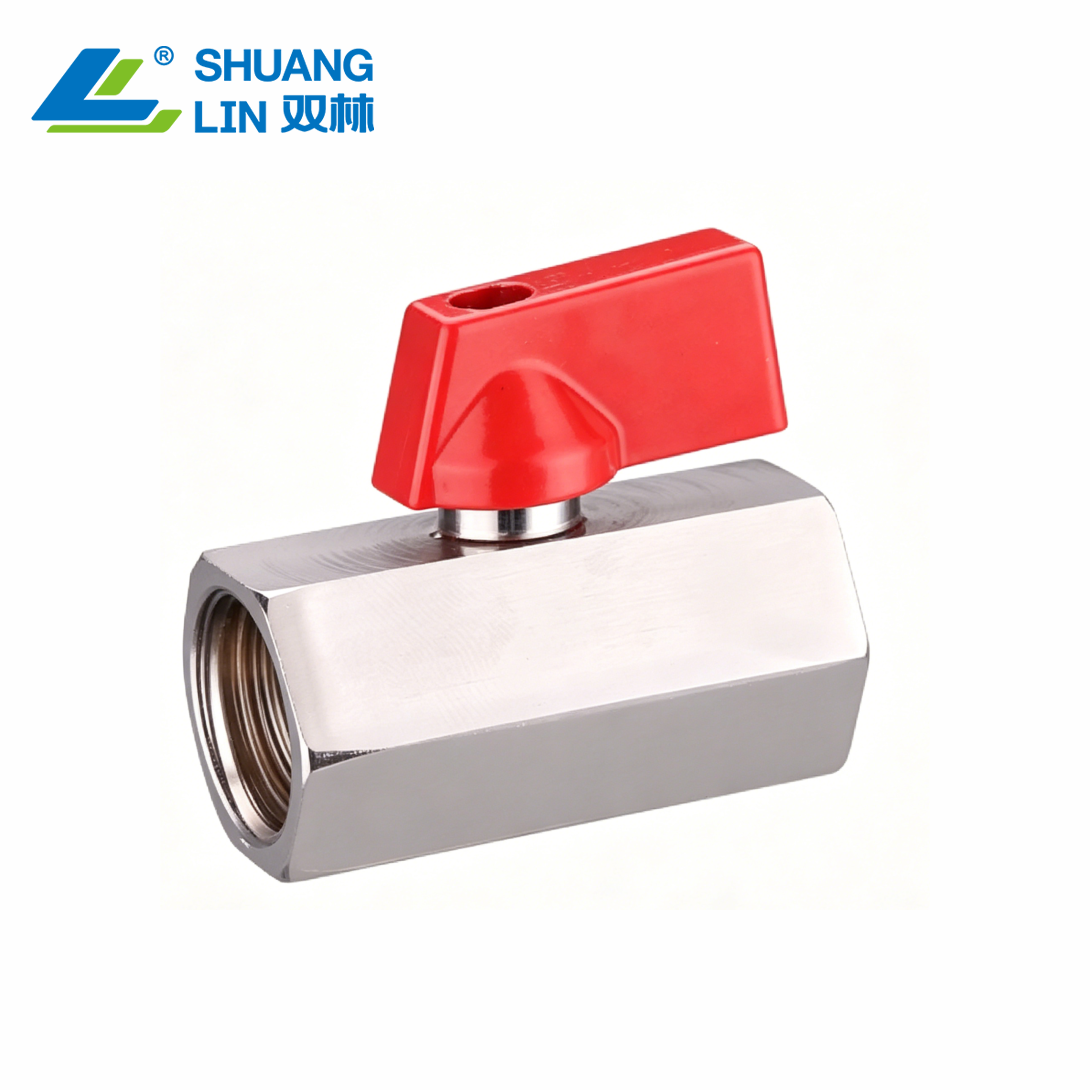

SHUANGLIN VALVE | FxF Mini Ball Valve, DN6–DN25

Sometimes the only thing a small fitting needs is a reliable, no-fuss way to turn the flow on or off. SHUANGLIN VALVE's FxF mini ball valve does exactly that — a compact, quarter-turn shut-off with female threads on both ends, built to drop into a line between two male-threaded fittings without adding unnecessary bulk.

A Straightforward Shut-Off, Built to Last

Inside, a chrome-plated brass ball rotates a quarter turn to open or close the flow path completely, giving instant visual confirmation of valve status from the handle position — in line with flow, it's open; across the line, it's closed. The compact hex body and polished chrome finish keep the valve small and corrosion-resistant, suited to sitting exposed in visible plumbing runs, under sinks, or inline on appliance connections without looking out of place.

Fits Where Space Is Tight

Because both ports are female-threaded, this valve installs directly between two male-threaded nipples or fitting ends — a straightforward substitution wherever a section of pipe currently has no shut-off point. This makes it a practical retrofit option for adding isolation to an existing line without reworking the surrounding fittings. SHUANGLIN VALVE produces this valve across the DN6 to DN25 size range, covering everything from small instrumentation and gauge lines up to standard 1-inch plumbing connections.

Key Features

• Female threads on both ends (FxF) for direct in-line installation between male-fitted components

• Quarter-turn operation with clear open/closed handle indication

• Chrome-plated brass body and ball for corrosion resistance and a clean finish

• Full-bore or reduced-bore options available depending on size, for minimal flow restriction

• Compact hex body suited to visible or space-constrained installations

Common Applications

• Water filter and appliance supply line isolation

• Gauge, instrumentation, and sensor line shut-off

• Compressed air and pneumatic line branch isolation

• General plumbing retrofits requiring an added shut-off point

Ordering Information

• Payment: T/T (Bank Transfer)

• Stock Items: Ships within 7 days

• Custom Orders: 30 days production time

• Logistics: Sea or air freight, with customs clearance assistance

Warranty & Customization

SHUANGLIN VALVE backs every mini ball valve with a 1-year warranty against manufacturing defects, including free repair or replacement where applicable. OEM/ODM services are available for custom handle colors, thread standards, and private-label packaging on bulk orders.

Frequently Asked Questions

Can this valve be installed directly onto a female-threaded pipe? No — since both ends are female-threaded, this version requires a male-threaded nipple or fitting on at least one side. For direct connection to a female port, our FxM (male x female) mini ball valve is the better fit.

Does the handle position show whether the valve is open or closed? Yes. When the handle is aligned with the pipe, the valve is open; when it's turned 90 degrees across the pipe, the valve is closed — giving an immediate visual check without needing to test the flow.

What sizes are available? SHUANGLIN VALVE produces this FxF mini ball valve from DN6 to DN25. Contact us with your thread standard and size requirement for a tailored quotation.

Is this valve suitable for compressed air as well as water? Yes, the brass construction and ball valve design are suitable for both liquid and pneumatic applications within the valve's rated pressure range. Contact us for specific pressure ratings by size.

Contact SHUANGLIN VALVE's sales team for a detailed quotation, technical drawings, or samples.
