Ball Valve, DN15-DN100, Female Thread, Long Handle

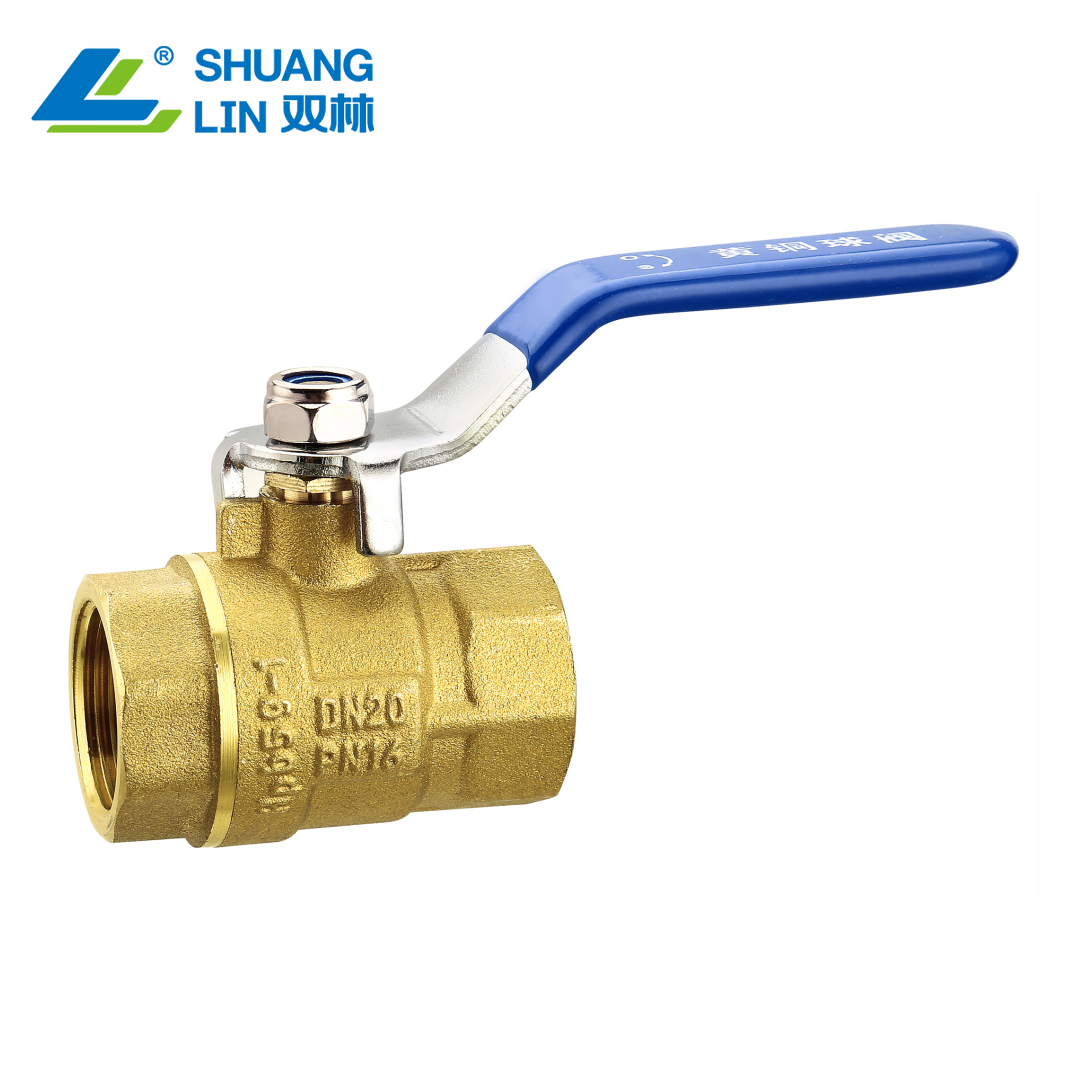

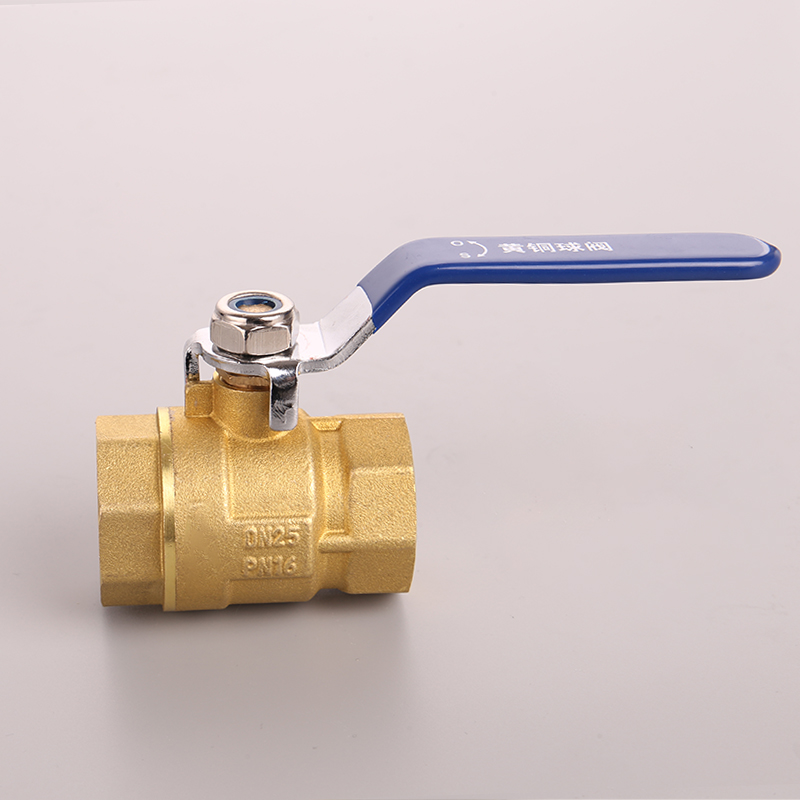

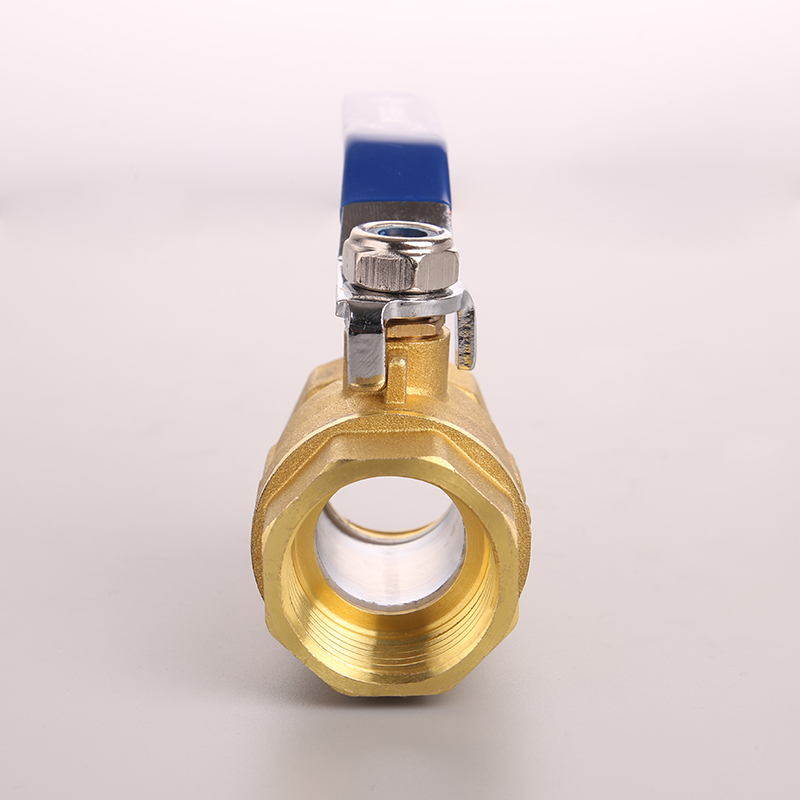

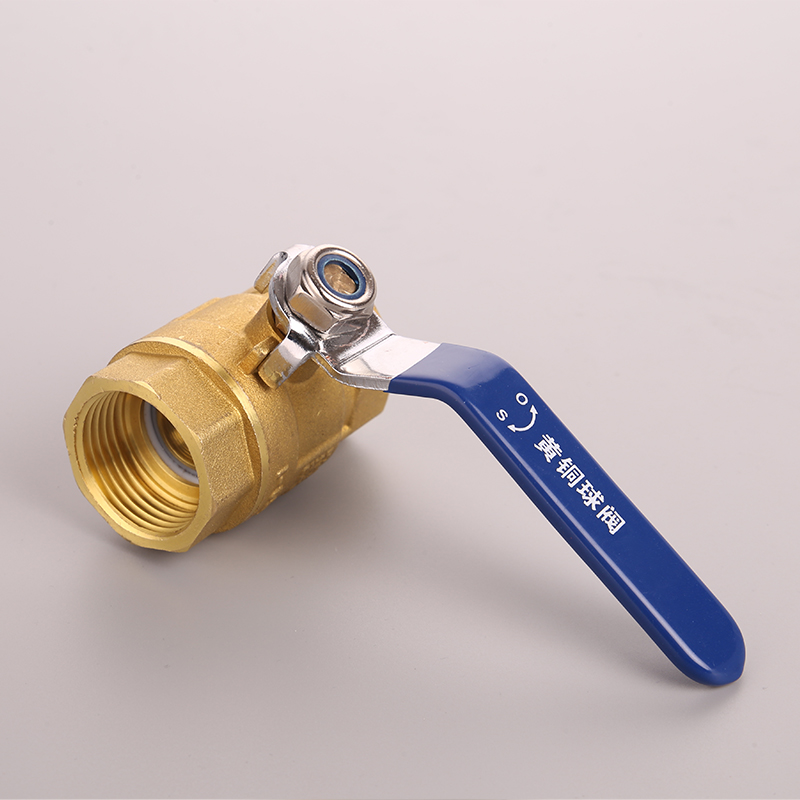

SHUANGLIN VALVE Brass Ball Valve – Full Port 2-Way Ball Valve DN15-DN100 for Reliable On-Off Control

The SHUANGLIN VALVE Brass Ball Valve is a high-performance 2-way, full-port isolation valve designed for reliable on-off control in residential, commercial, and industrial pipeline systems. Featuring a simple quarter-turn (90°) lever operation, this valve provides fast, effortless switching between open and closed positions, making it an ideal choice for applications requiring frequent operation.

Constructed from high-quality forged brass with a natural brass finish, SHUANGLIN VALVE ball valves offer excellent corrosion resistance, high strength, and long service life. The valve features a full port (full bore) design that minimizes pressure drop and ensures maximum flow capacity. The chrome-plated brass ball and PTFE (Teflon) seats provide superior sealing performance with zero leakage, while the self-lubricating properties of PTFE ensure smooth operation and reduced operating torque. The blowout-proof stem design enhances safety, preventing the stem from being ejected under pressure.

Available in DN15 to DN100 (1/2" to 4") sizes with standard female threaded connections (NPT/BSP), these valves are rated to PN16 (1.6MPa / 232 PSI) with a working temperature range of -10°C to 120°C. They are suitable for water, oil, gas, and other non-corrosive fluids. SHUANGLIN VALVE products are manufactured under strict quality control and comply with ISO9001 and CE standards.

Key Features:

• Quarter-Turn Operation: 90° lever handle for fast, easy on-off control

• Full Port Design: Minimizes pressure drop and maximizes flow capacity

• Premium Forged Brass Construction: Corrosion-resistant, durable, and long-lasting

• PTFE Seats: Self-lubricating, zero leakage, smooth operation

• Chrome-Plated Brass Ball: Wear-resistant and reliable sealing

• Blowout-Proof Stem: Enhanced safety during operation

• Available Sizes: DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100

• Pressure Rating: PN16 (1.6MPa / 232 PSI)

• Temperature Range: -10°C to 120°C

• Thread Standards: NPT, BSP

• Certifications: ISO9001, CE

Applications:

• Residential and commercial plumbing systems

• Water supply and distribution networks

• HVAC heating and chilled water circuits

• Industrial fluid control and isolation

• Gas and oil pipeline systems
