SL-8008
SHUANGLIN

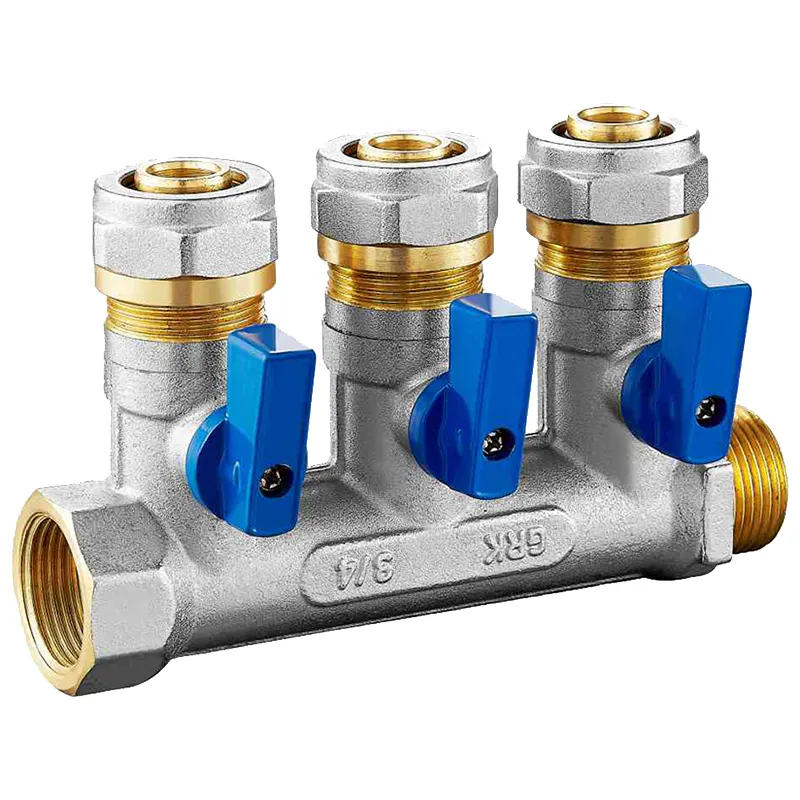

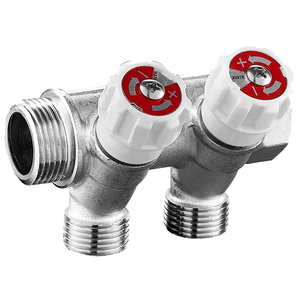

The Compact Nickel Plated Brass Manifold is designed for plumbing layouts that require several branch connections within a relatively concentrated installation area.
Instead of distributing individual connections across multiple separate fittings, a manifold brings several outlets together within one component. This can help create a more organized connection point for downstream water pipes.
The product is available in 2-way, 3-way, 4-way, 5-way, and 6-way configurations. The basic purpose remains the same across the different versions, while the number of outlets changes according to the required pipe layout.
The compact configuration allows multiple branch connections to be grouped around one manifold body.
This can be useful in installations where the available space around the pipework is limited or where the installer wants to keep several connections concentrated in one location.
The actual space required depends on the selected model, connection dimensions, pipe direction, and installation method. Customers should check the product drawing or actual dimensions before final installation.
The manifold uses a brass body with a nickel-plated exterior surface.
The brass construction provides a solid metal body for compatible plumbing and water distribution applications. The nickel-plated surface gives the product a smooth metallic appearance and can be suitable for visible pipe assemblies.
The exact brass grade and nickel-plating specification should be confirmed according to the selected product model.
Different outlet configurations are available to accommodate different numbers of branch connections.
2-way: two branch outlets
3-way: three branch outlets
4-way: four branch outlets
5-way: five branch outlets
6-way: six branch outlets
The way count mainly determines the number of available connection points rather than creating a different operating function.
Several branch connections are integrated into one manifold body, helping concentrate the connection point within the plumbing layout.
Customers can select the number of outlets according to the number of downstream water lines required.
The brass body provides a solid metal construction, while the nickel-plated exterior provides a smooth metallic finish.
The concentrated outlet arrangement can be considered for plumbing layouts where installation space and pipe routing need to be carefully planned.
The Compact Nickel Plated Brass Manifold can be considered for:
Residential plumbing
Water pipe assemblies
Multi-branch water systems
Building service plumbing
Heating water circuits
Utility water connections
Commercial plumbing installations
Equipment water connections
The actual application should be evaluated according to the connection specification, operating conditions, installation environment, and applicable medium.
Before installing the manifold, customers should check the number of required branches, inlet and outlet connection sizes, thread standard, available installation space, and pipe routing direction.
For compact installations, outlet spacing and the direction of connected pipes can be particularly important. Selecting the appropriate way configuration and connection size can help avoid unnecessary adapters or changes to the existing pipe layout.
Product images can highlight the nickel-plated brass body, compact manifold structure, central inlet, multiple outlet connections, threaded sections, outlet arrangement, and overall dimensions.
The actual specification should be confirmed according to the selected model, including number of ways, connection sizes, thread standard, brass material grade, surface finish, working pressure, and working temperature.
A compact brass manifold is a multi-connection plumbing component that groups several branch outlets around one common supply point.
This product series is available from 2-way to 6-way configurations.
No. The basic manifold function is the same. The main difference is the number of available branch outlets.
It is made from brass with a nickel-plated exterior surface.
Its compact multi-connection arrangement can be considered for space-conscious plumbing layouts. However, the actual suitability depends on the model dimensions and pipe routing requirements.
For an accurate quotation, it is useful to provide the required number of ways, inlet and outlet sizes, thread standard, quantity, and any specific material or connection requirements.
