SL-8007
SHUANGLIN

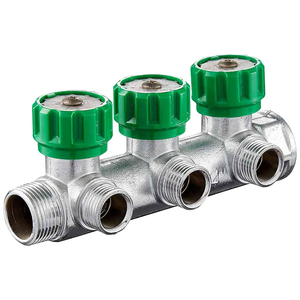

The Nickel Plated Brass Plumbing Manifold is designed to bring multiple pipe connections together within a single compact component.
In a multi-branch plumbing installation, several individual connections may need to be arranged around the same supply line. A manifold provides a centralized connection point with multiple outlets, helping create a more structured pipe layout.
This product series is available in 2-way through 6-way configurations, allowing the outlet quantity to be selected according to the actual plumbing design.
The manifold can be integrated into suitable water and plumbing systems where several downstream lines need to connect to a common supply.
The different way options provide the same basic manifold function. The selection mainly depends on the number of branch pipes that need to be connected.

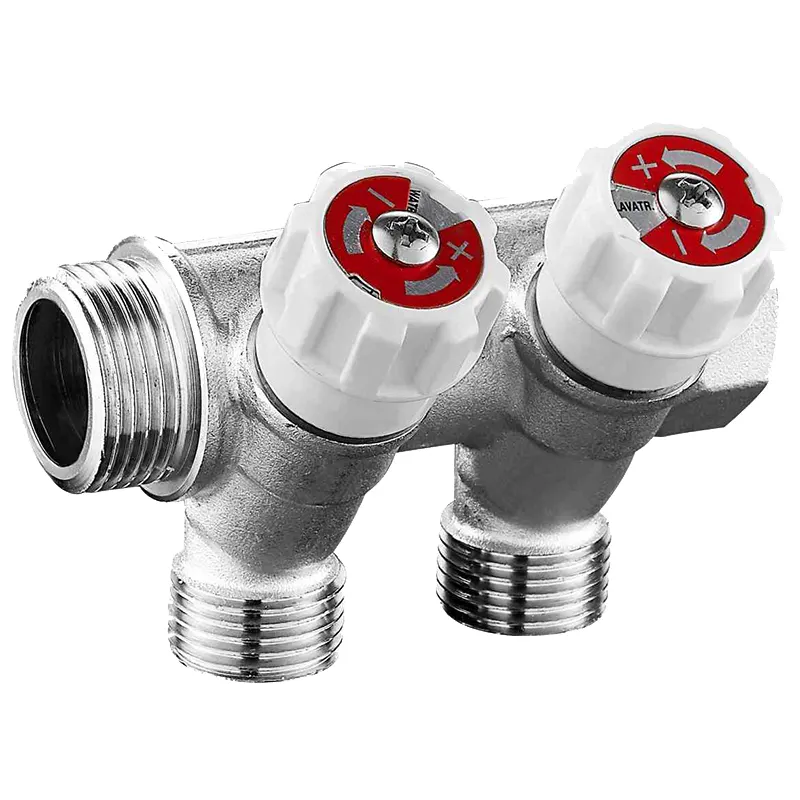

For example, a 2-way version provides two branch outlets, while a 6-way version provides six outlet connections. The appropriate configuration should be selected according to the actual pipe arrangement.
The manifold body is made from brass with a nickel-plated surface.
The brass body provides a solid metal construction for compatible plumbing applications, while the nickel-plated exterior gives the manifold a smooth metallic appearance.
The actual brass grade and plating specification should be confirmed according to the selected product model rather than assumed from the appearance.
A multi-way manifold can help concentrate several pipe connections into one assembly.
This can be useful when the plumbing system contains several branch lines and installation space needs to be considered. Instead of arranging multiple separate distribution fittings, a suitable manifold can provide several connection points within one component.
The final installation layout should consider outlet direction, pipe routing, connection dimensions, and available space.
The product series provides different outlet quantities from 2 to 6 ways for different branch pipe requirements.
The brass body provides a solid construction for suitable water and plumbing installations.
The nickel-plated surface gives the manifold a smooth metallic appearance suitable for visible plumbing assemblies.
Multiple downstream pipe connections can be arranged around one manifold, helping simplify suitable multi-branch plumbing layouts.
The Nickel Plated Brass Plumbing Manifold can be considered for:
Residential plumbing
Building water systems
Water distribution assemblies
Heating pipework
Utility plumbing
Commercial water systems
Equipment connections
Multi-branch pipe installations
The actual suitability depends on the connection specification, working conditions, installation environment, and medium.
The first consideration is the number of branch connections required.
A 2-way manifold is suitable for systems requiring two outlet branches, while a 3-way, 4-way, 5-way, or 6-way version can be selected when additional connections are required.
The connection dimensions are equally important. Before ordering, customers should match the manifold's inlet and outlet specifications with the existing pipework and fittings.

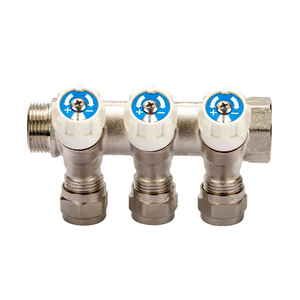

Product images can show the nickel-plated brass body, central inlet, branch outlets, threaded connection sections, outlet arrangement, and overall manifold dimensions.
The actual product specification should be confirmed for number of ways, inlet size, outlet size, thread standard, material grade, surface finish, working pressure, and working temperature.
A plumbing manifold is a component that provides several pipe connection points from a common supply section, allowing multiple branches to be arranged within one assembly.
This series covers 2-way to 6-way configurations.
It can be used in compatible water and plumbing systems, subject to the actual material, connection, pressure, temperature, and installation requirements.
The brass manifold has a nickel-plated exterior surface.
Select the number of outlets according to the number of downstream branch pipes required by your plumbing layout. Connection dimensions should also be checked for compatibility.
