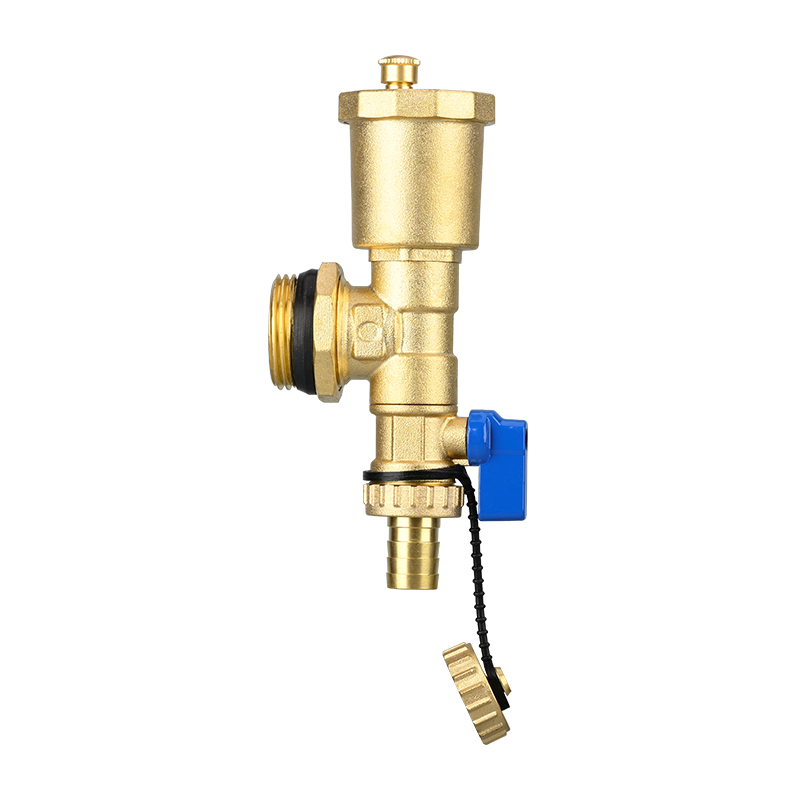

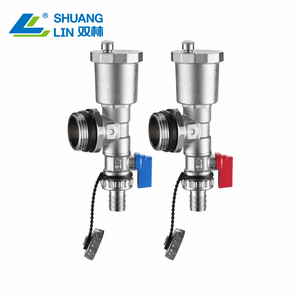

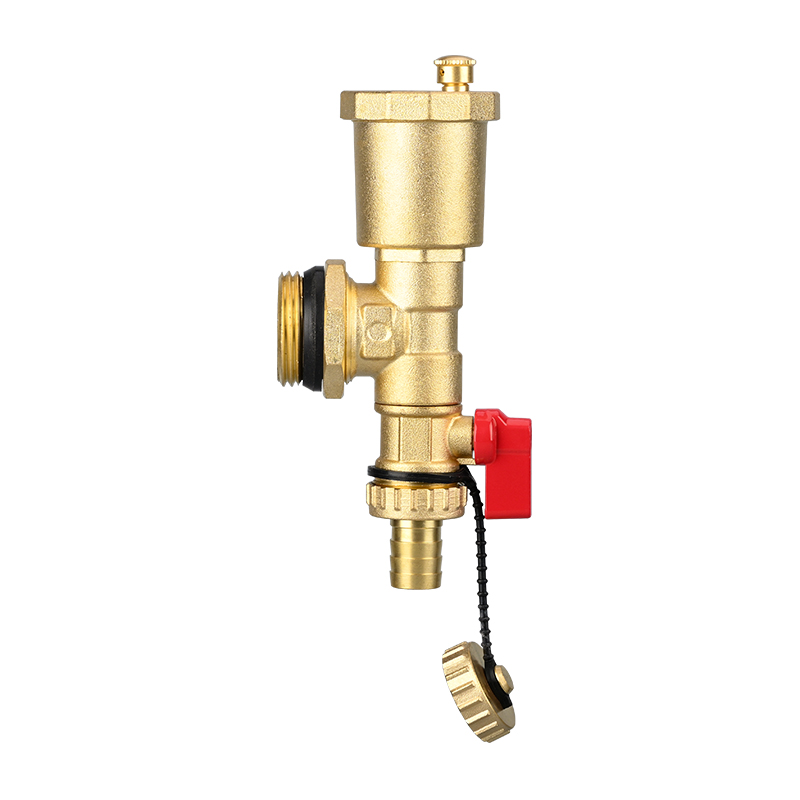

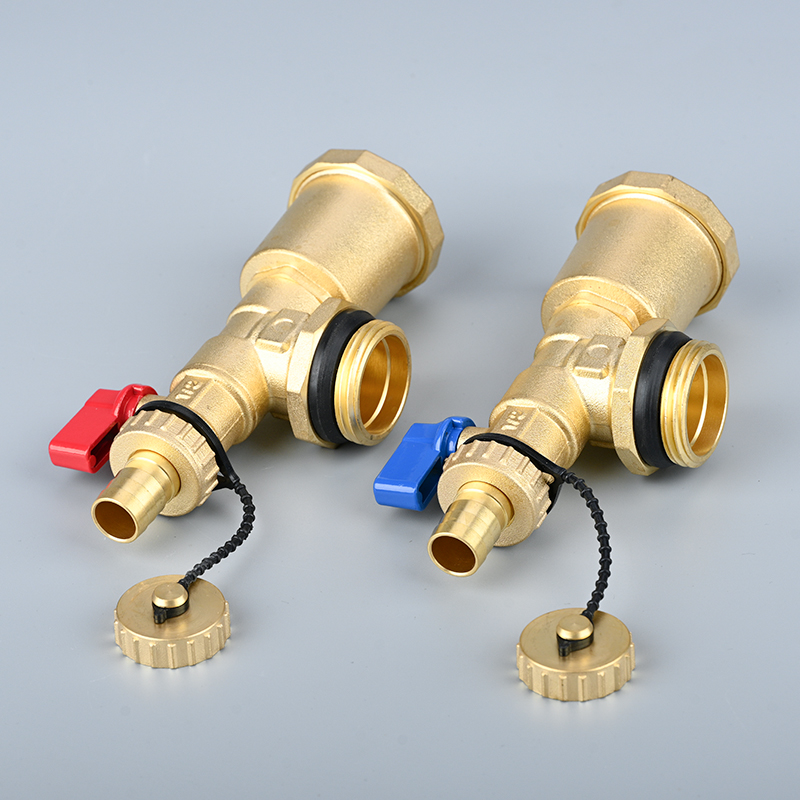

Automatic Brass Air Vent & Drain Valve for Heating Manifold System

The Automatic Brass Air Vent & Drain Valve (SL-8022) is designed for heating manifolds, underfloor heating, and water-based HVAC systems. Made from Brass 59-1, it combines automatic air release with a drain outlet to remove trapped air and support system flushing and maintenance. Available in 1″ (DN25) and 11/4'' (DN32) sizes, it operates at pressures up to 1.6 MPa and temperatures from -10°C to 120°C, with water as the working medium.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • SL-8022

  • SHUANGLIN

Automatic Air Vent & Drain Valve for Heating Manifold System

The Automatic Air Vent & Drain Valve from SHUANGLIN VALVE is designed for modern heating and HVAC systems where trapped air and system pressure stability are critical concerns.

Air accumulation inside pipelines can significantly reduce heating efficiency and cause noise, uneven heat distribution, or pump stress. This valve is engineered to automatically release trapped air while providing an additional drainage outlet for system flushing.

It is widely used in underfloor heating manifolds, boiler systems, and closed-loop water circulation networks.

Functional Design

The upper structure of the valve is designed for automatic or semi-automatic air release, ensuring continuous removal of micro air bubbles during system operation.

The lower outlet is equipped with a drainage interface, allowing technicians to discharge water during maintenance or system flushing.

This dual-function structure helps maintain stable hydraulic performance and improves overall system efficiency.

Key Features

  • Automatic air release design

  • Integrated drain / flush outlet

  • Suitable for HVAC and manifold systems

  • Reduces air blockage and noise in pipelines

  • Improves heating circulation efficiency

  • Compact brass construction for long service life

Application Scenarios

Underfloor Heating Systems

Underfloor heating manifolds distribute heated water through multiple floor circuits. During filling and commissioning, air can remain inside the loops or collect around manifold connections, affecting water circulation and heating consistency.

The automatic air vent helps discharge collected air, while the drain outlet provides access for circuit flushing and water removal. This combination is useful in residential floor heating, apartment buildings, and commercial radiant heating installations.

Boiler and Heating Circuits

Hydronic boiler systems rely on continuous water circulation between the heat source and connected heating circuits. Accumulated air may interfere with circulation, create unwanted noise, or reduce the effectiveness of heat transfer.

The SL-8022 can be considered for compatible manifold assemblies and suitable connection points within water-based boiler circuits. Its integrated drain connection also assists technicians when a circuit needs to be emptied or flushed during servicing.

Closed-Loop HVAC Systems

Closed-loop HVAC networks commonly use circulating water to transfer heating energy between mechanical equipment and terminal units. Air accumulation can occur during initial filling, repairs, or system operation.

Automatic air venting supports regular air removal, while the drain function provides access for planned service work. Typical applications include building heating distribution networks, pump circulation lines, and manifold-based heating installations.

OEM and Bulk Purchasing

SHUANGLIN supplies brass valves and heating-system accessories for distributors, importers, installation contractors, and OEM customers. Buyers can discuss requirements for product dimensions, materials, surface finishes, branding, and packaging.

For customized products, customers can provide technical drawings, samples, or detailed specifications for engineering review. The customization process includes requirement assessment, quotation, sample development, sample approval, production, inspection, packaging, and shipment.

Standard products have no fixed minimum order quantity requirement, while customized orders are subject to minimum quantities based on the requested configuration. SHUANGLIN also provides product selection assistance, technical support, and after-sales service.
