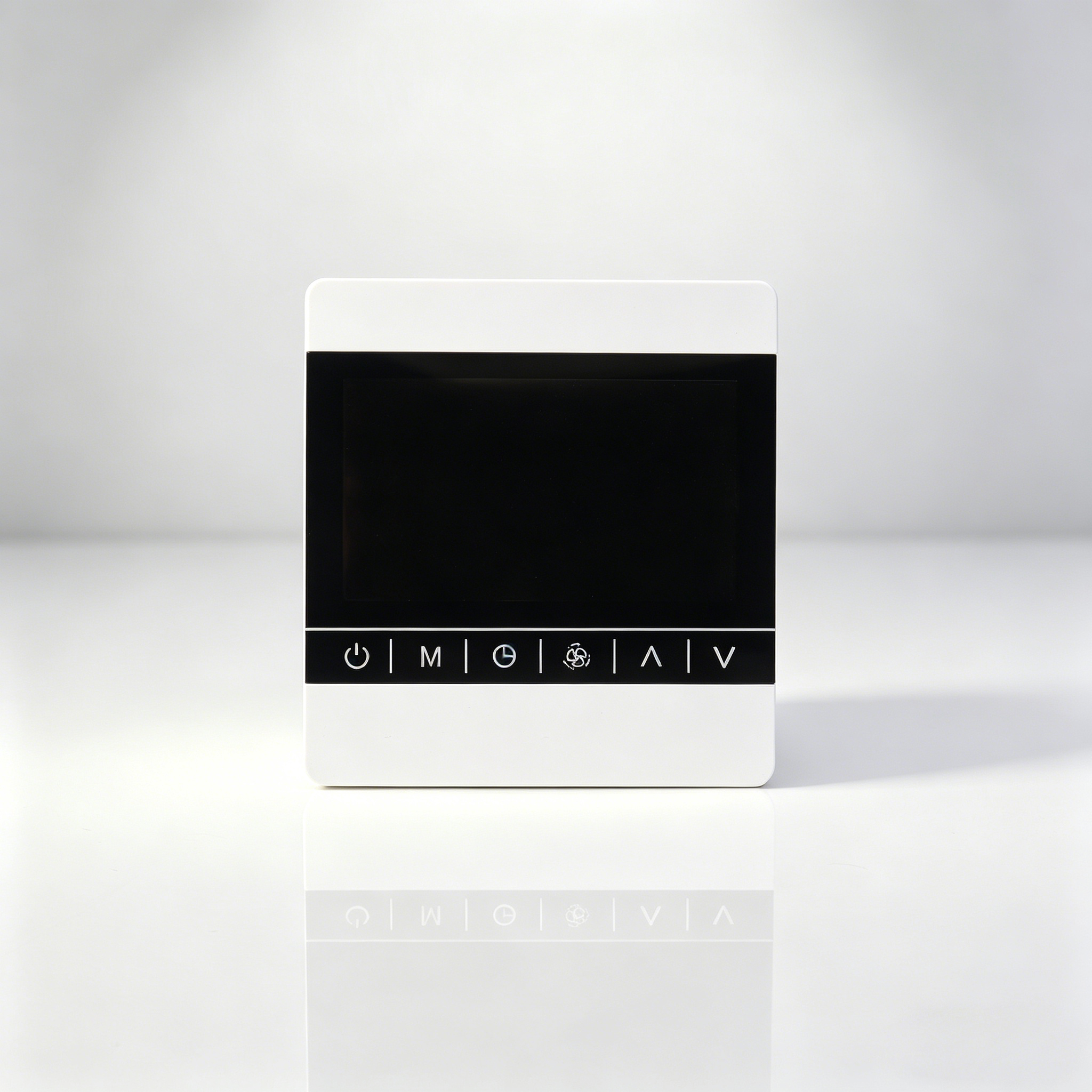

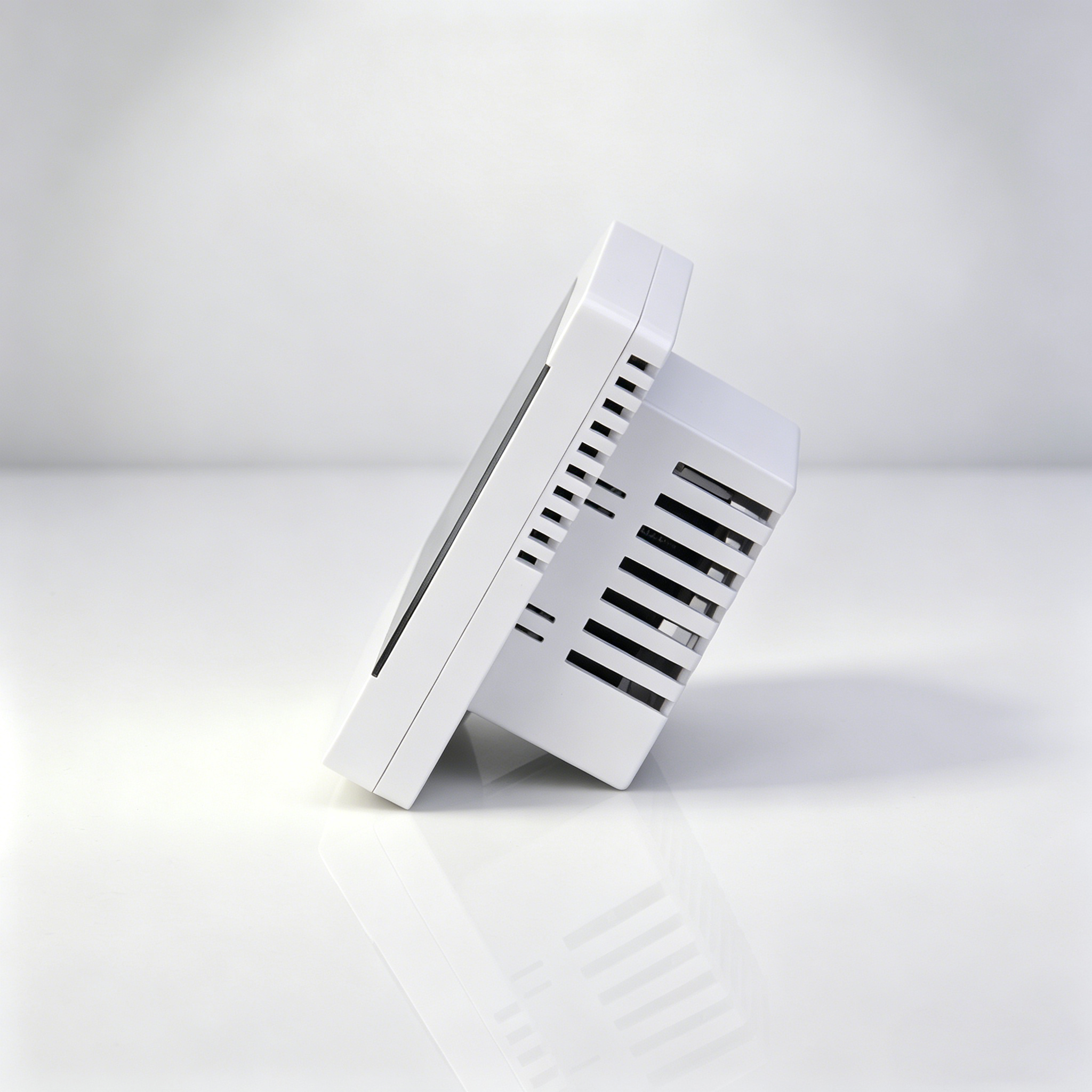

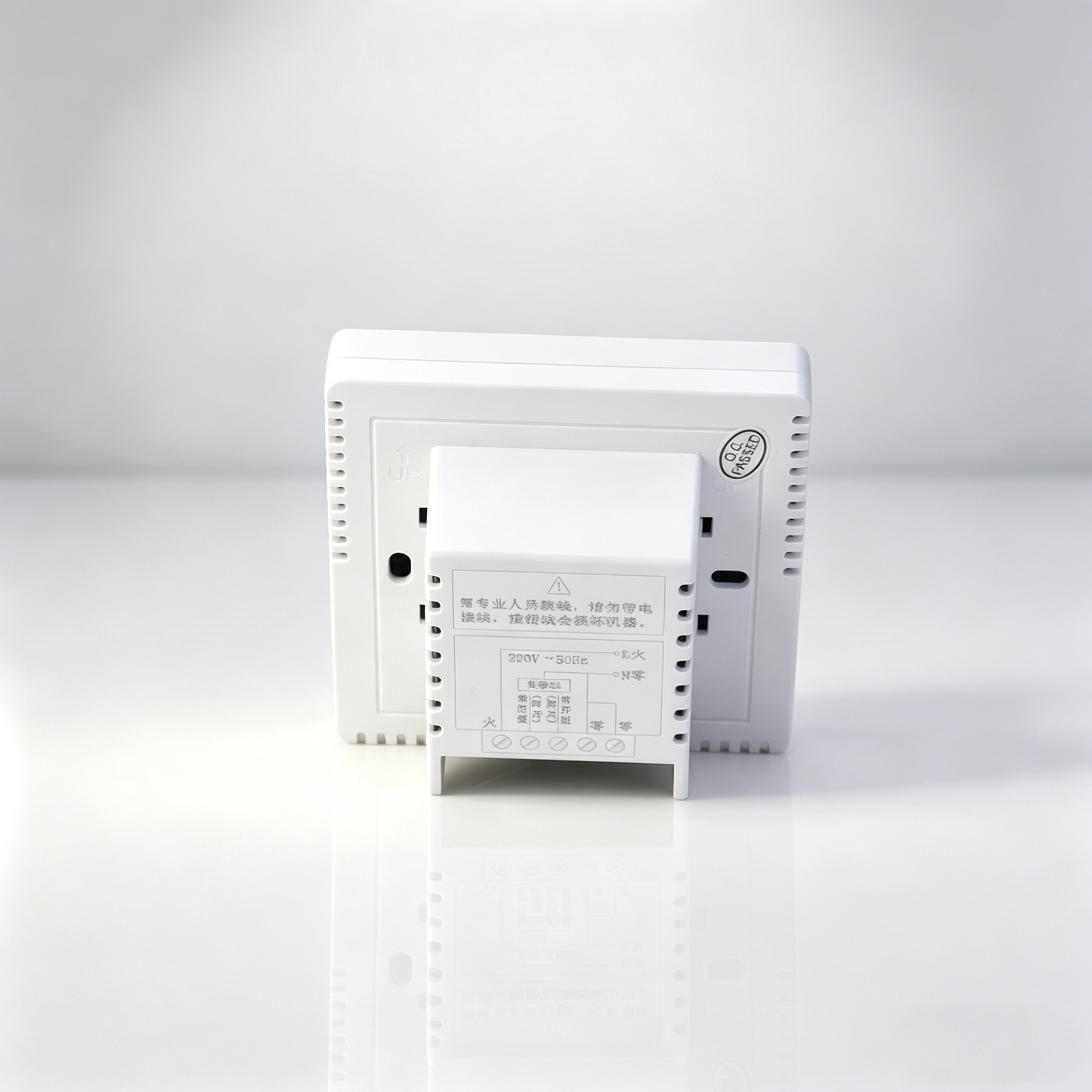

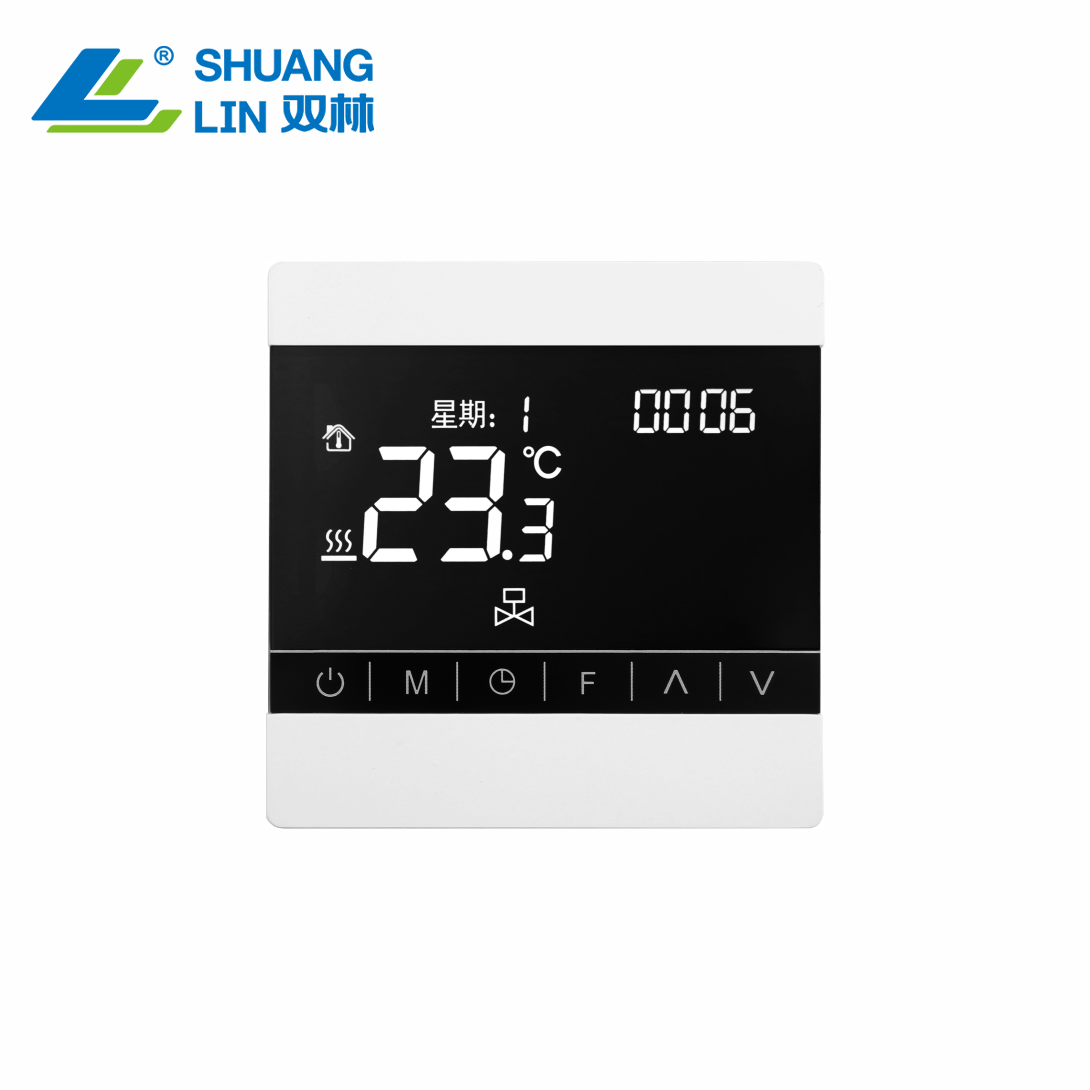

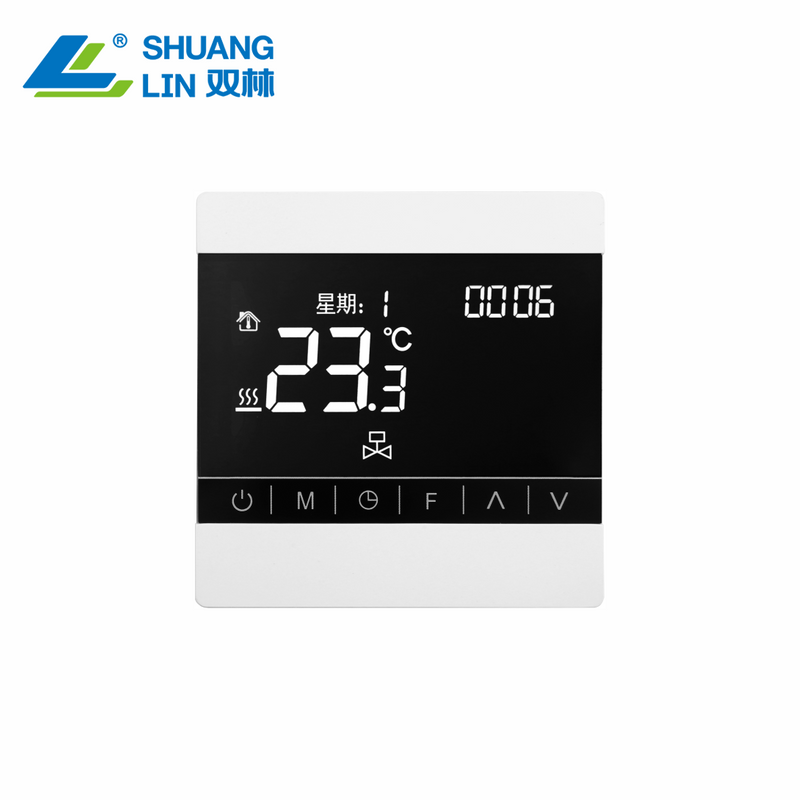

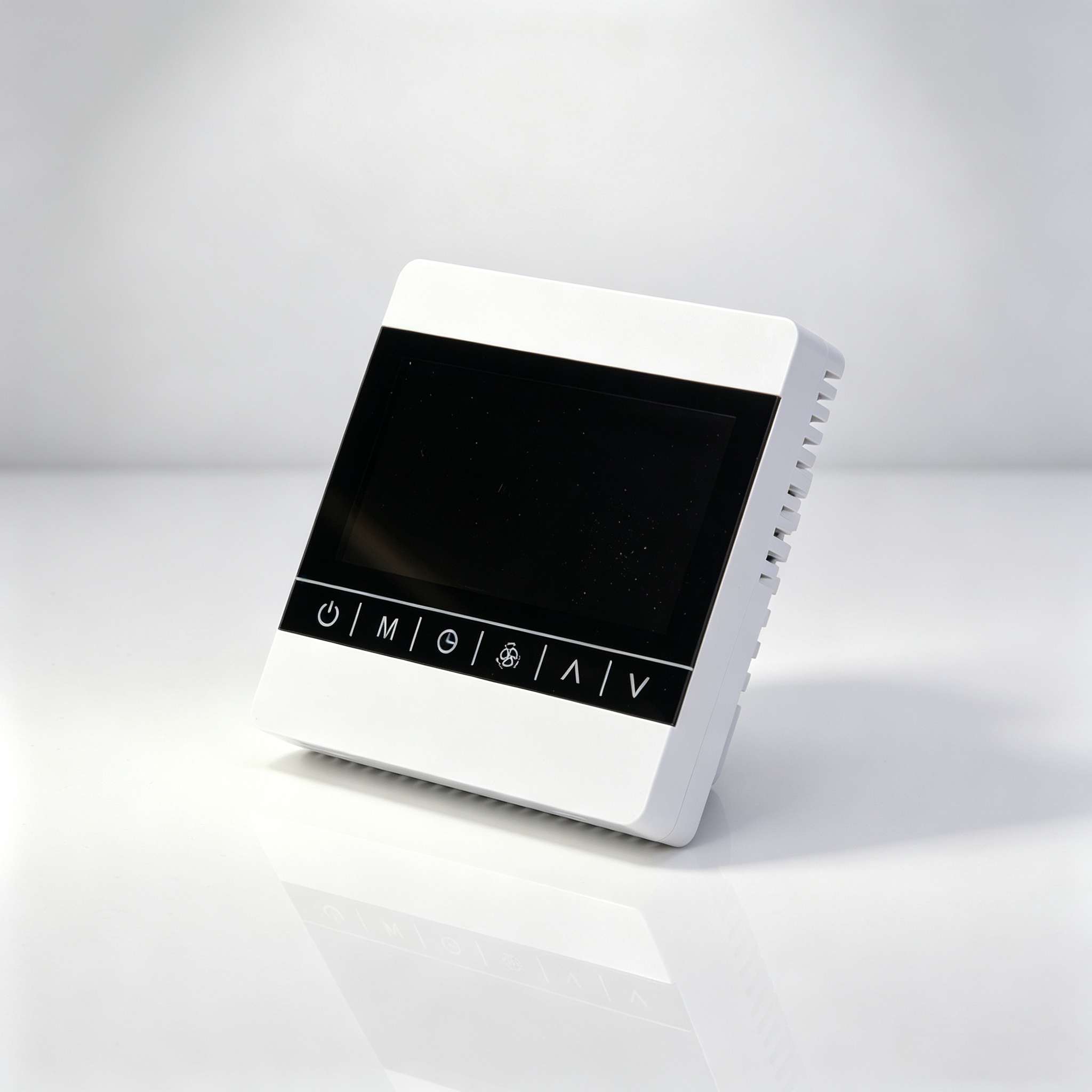

Multi-Zone Heating Control Panel – Independent Circuit Management System

This multi-zone heating control panel is designed for buildings that require independent temperature control across multiple areas. It enables each heating circuit to operate separately while maintaining overall system balance.

The structure supports multiple output channels, allowing precise hydraulic distribution to different zones such as rooms, floors, or functional building areas. Each circuit can be adjusted individually, improving comfort control and energy efficiency.

The hydraulic system is designed to maintain consistent pressure distribution even when multiple zones operate simultaneously. This helps prevent uneven heating and improves overall system stability.

Its modular configuration also allows flexibility during installation, making it suitable for both new construction and retrofit projects where heating zones may vary in complexity.

Key Advantages

• Independent control of multiple heating zones

• Stable hydraulic balance across circuits

• Flexible configuration for different building layouts

• Improved comfort through zoned temperature management

• Compatible with modern HVAC systems

• Suitable for scalable heating projects

Application Areas

Residential apartments, multi-room villas, office buildings, schools, and hotels with zoned heating requirements.
