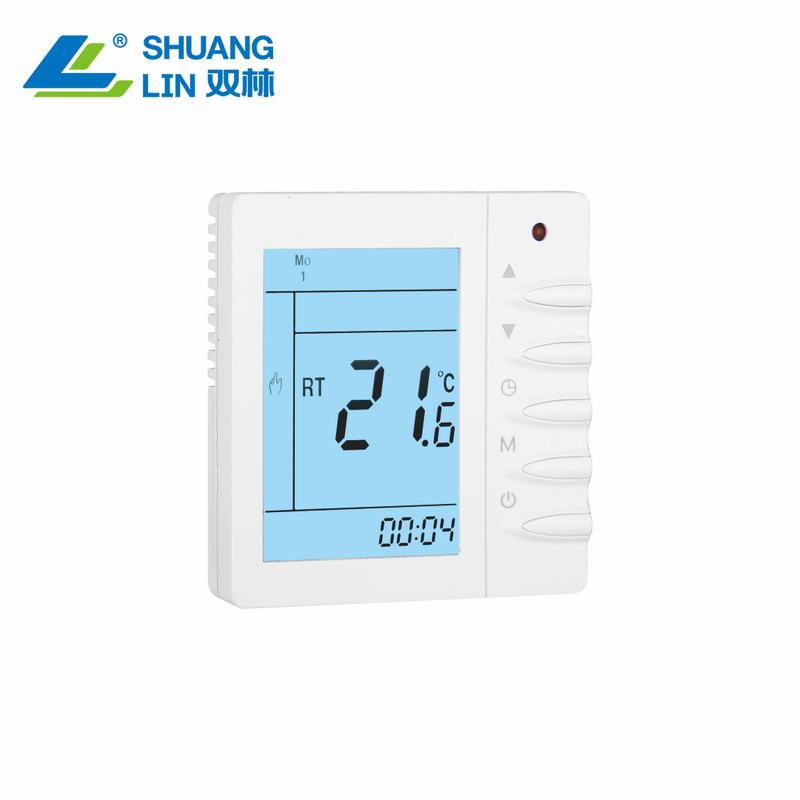

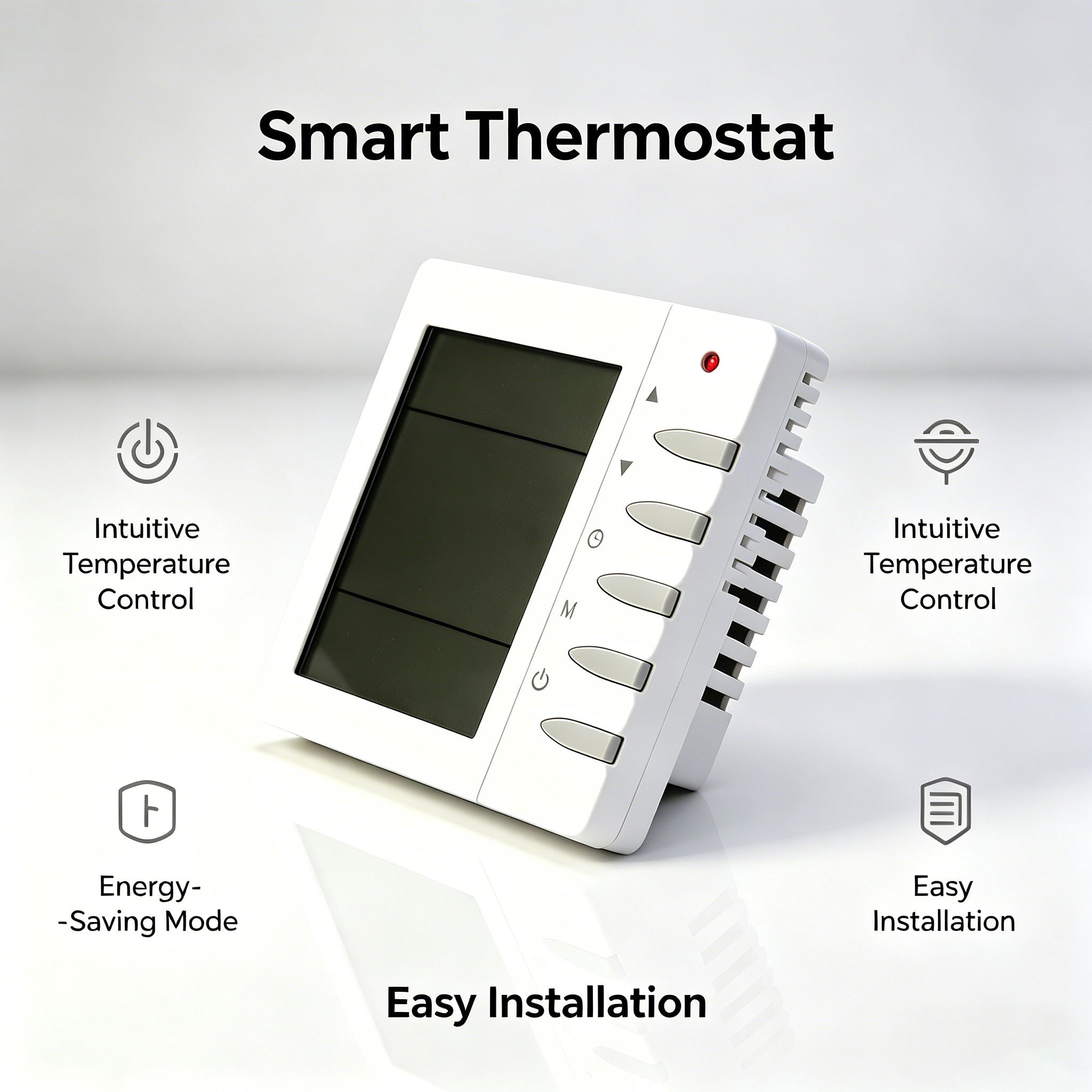

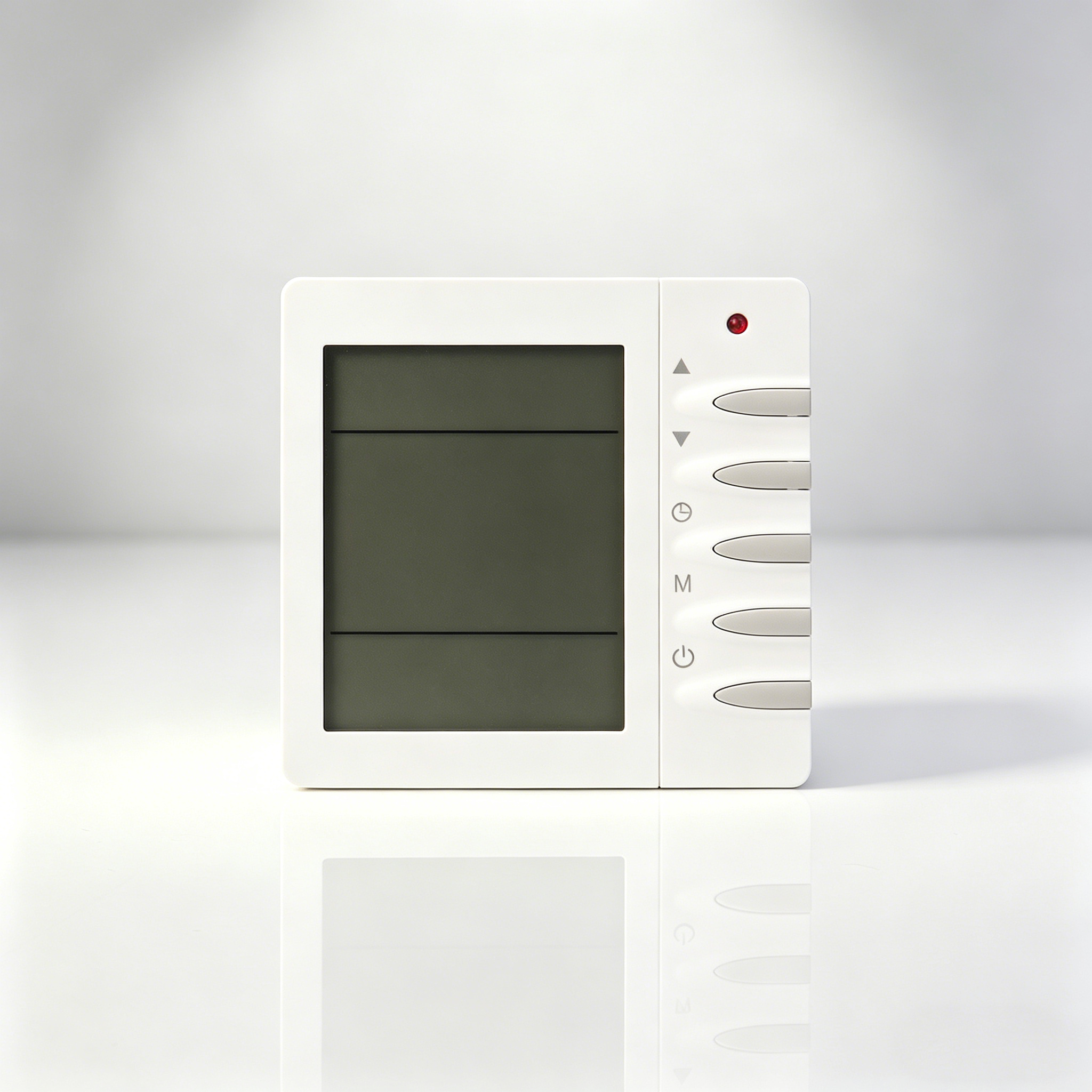

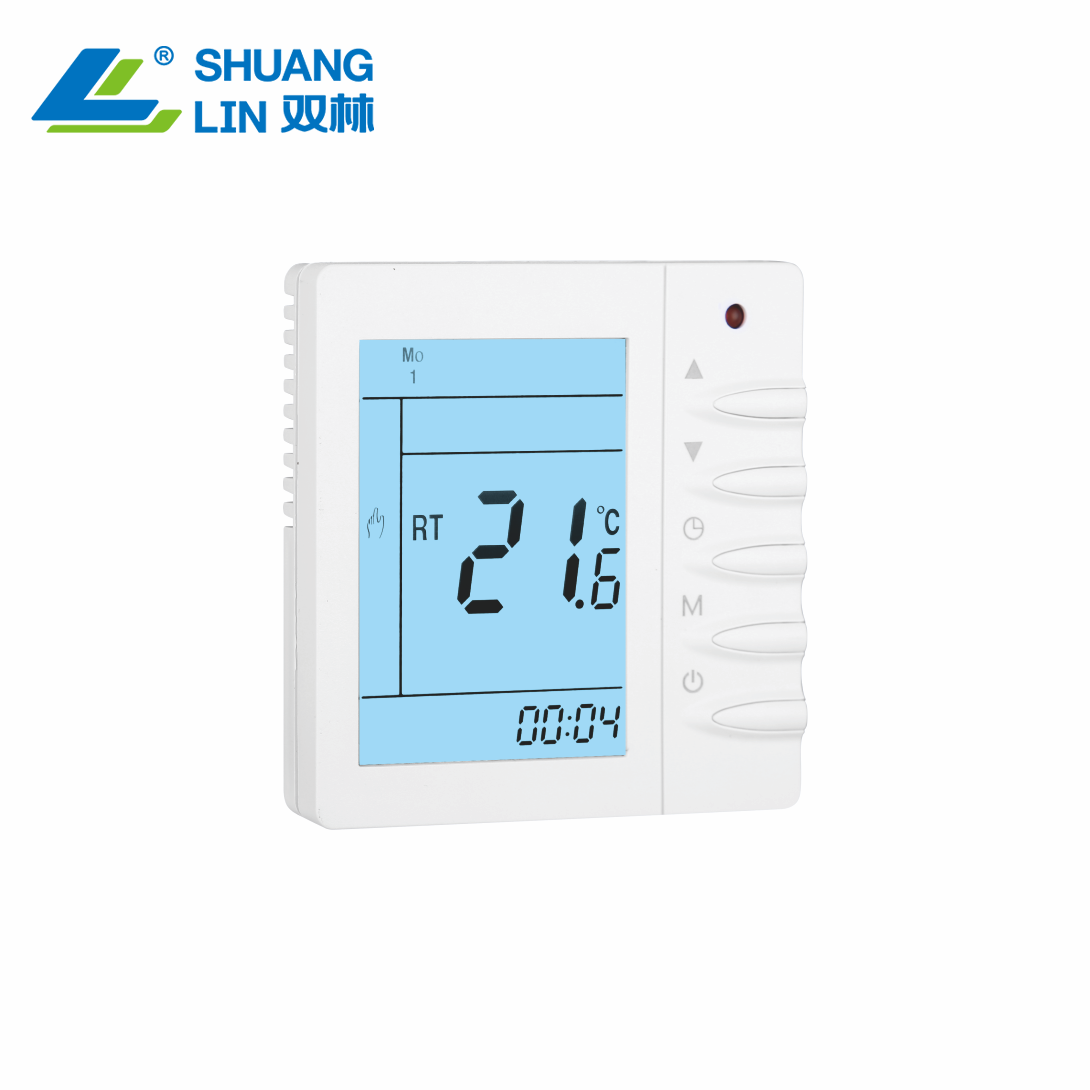

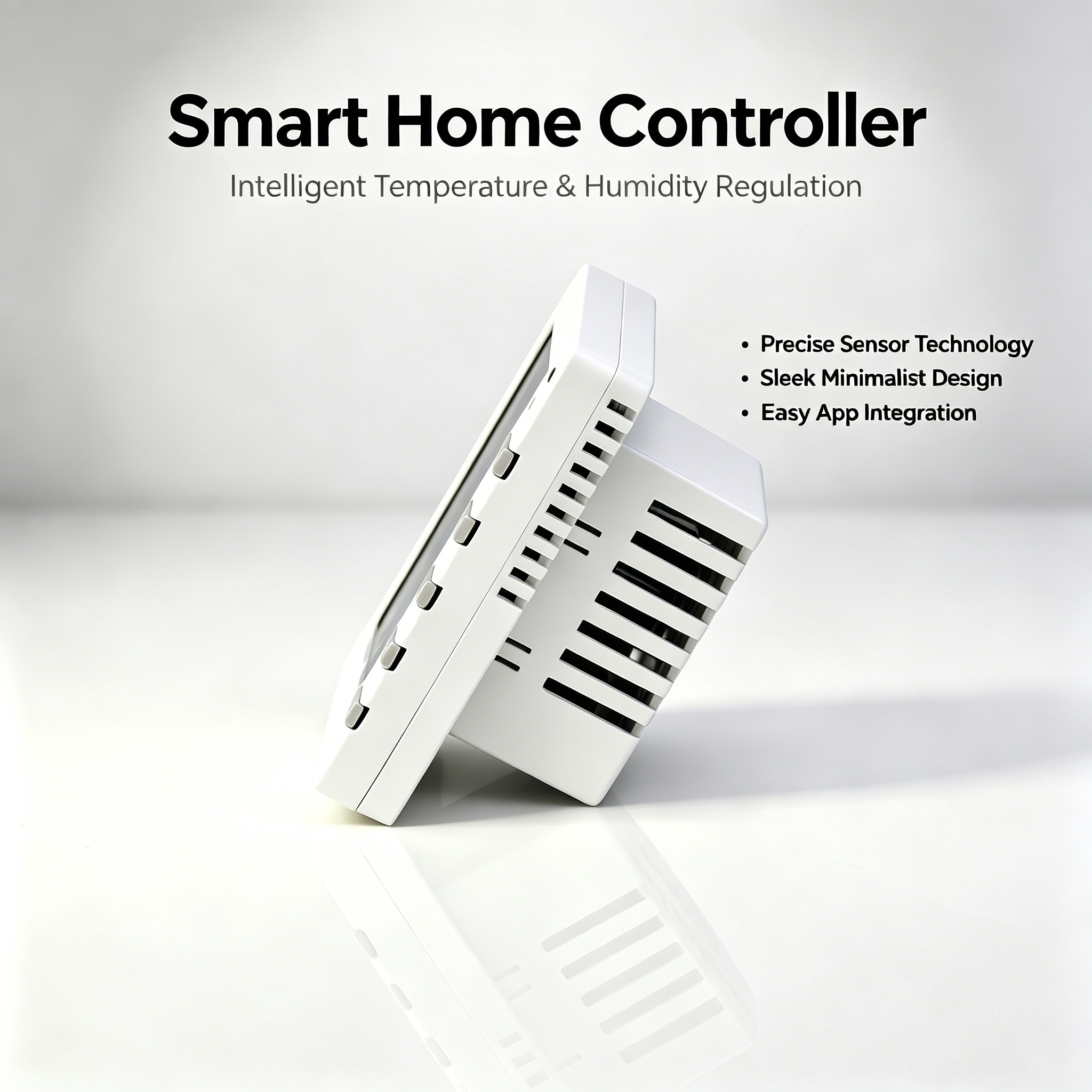

Energy-Efficient HVAC Control Panel – Optimized Heating Consumption Design

This energy-efficient HVAC control panel is designed to help heating systems operate with improved thermal efficiency while reducing unnecessary energy consumption. It focuses on optimizing how heat is distributed, controlled, and maintained across different zones of a hydronic heating system.

The internal control logic is designed to stabilize heating cycles by avoiding frequent start-stop operation of pumps and mixing components. This helps maintain a smoother hydraulic balance, which directly contributes to lower energy waste and more consistent indoor temperatures.

Unlike standard control units that only react to temperature changes, this model is designed with a more balanced operational approach. It ensures heating output is delivered only when required, reducing strain on boilers, pumps, and distribution systems.

The panel structure is designed with clear separation between control components and hydraulic components, improving airflow and reducing heat accumulation inside the installation cabinet. This contributes to longer system lifespan and more stable long-term operation.

Key Advantages

• Reduces unnecessary energy consumption in heating systems

• Stabilizes system operation cycles for improved efficiency

• Supports consistent temperature regulation across zones

• Optimized hydraulic coordination between components

• Suitable for residential and light commercial HVAC systems

• Designed for long-term continuous operation

Application Areas

This model is widely used in underfloor heating systems, energy-efficient residential buildings, apartment complexes, and renovation projects where reducing operational cost is a priority.
