SL-8006
SHUANGLIN

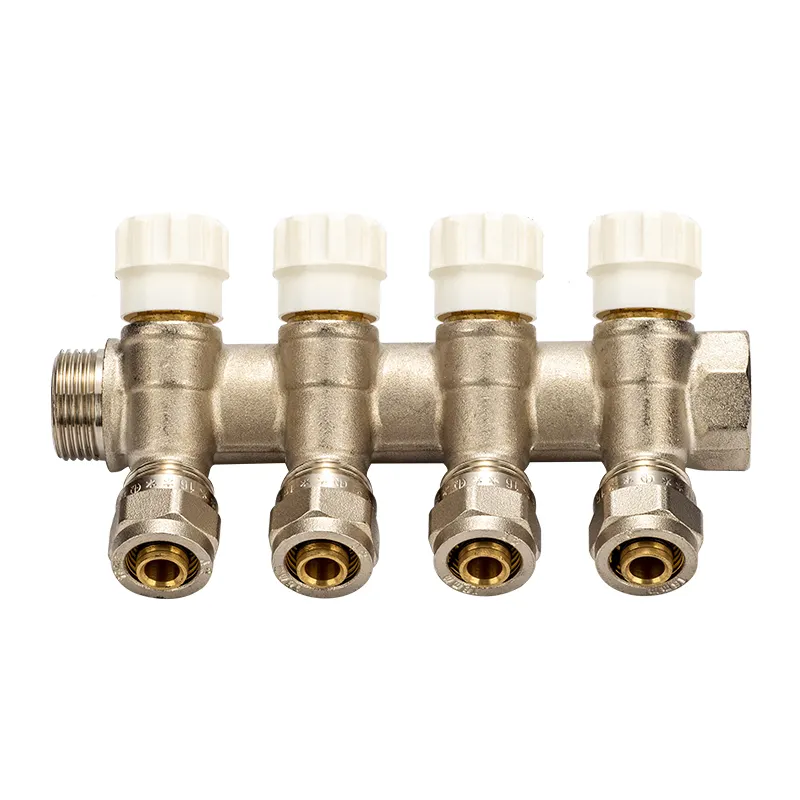

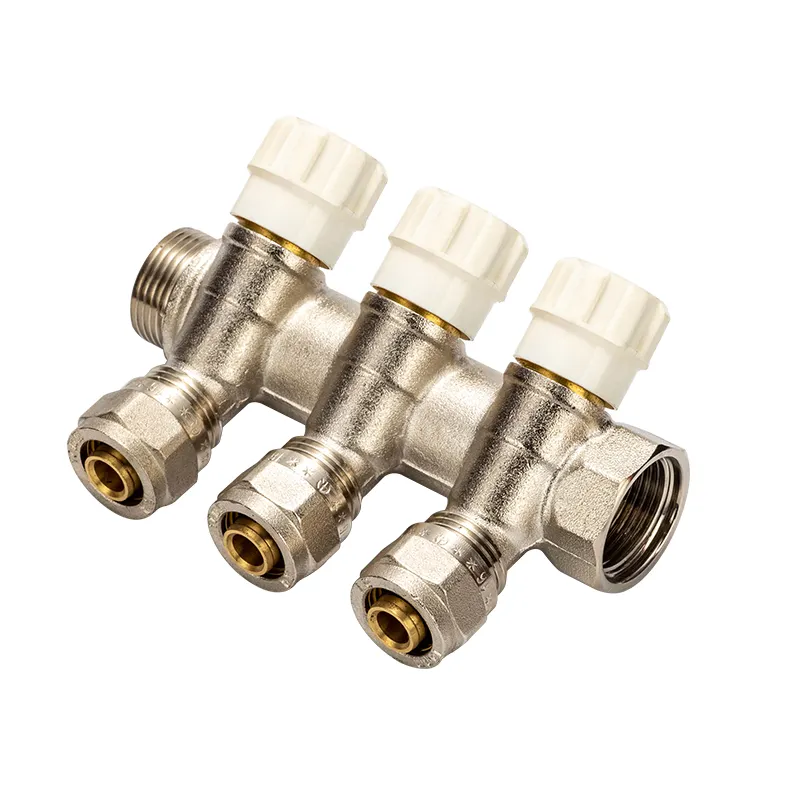

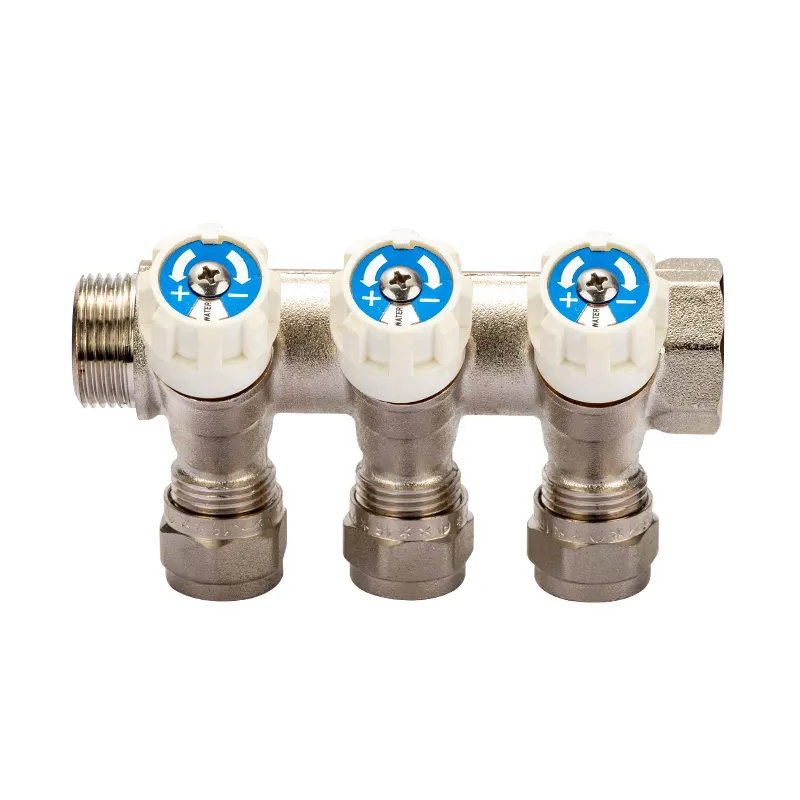

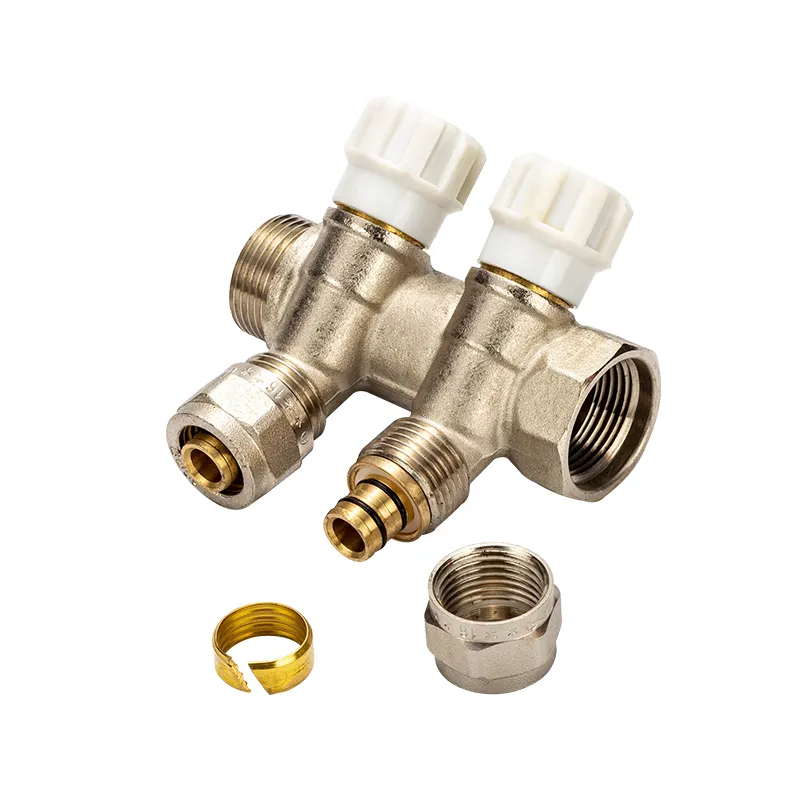

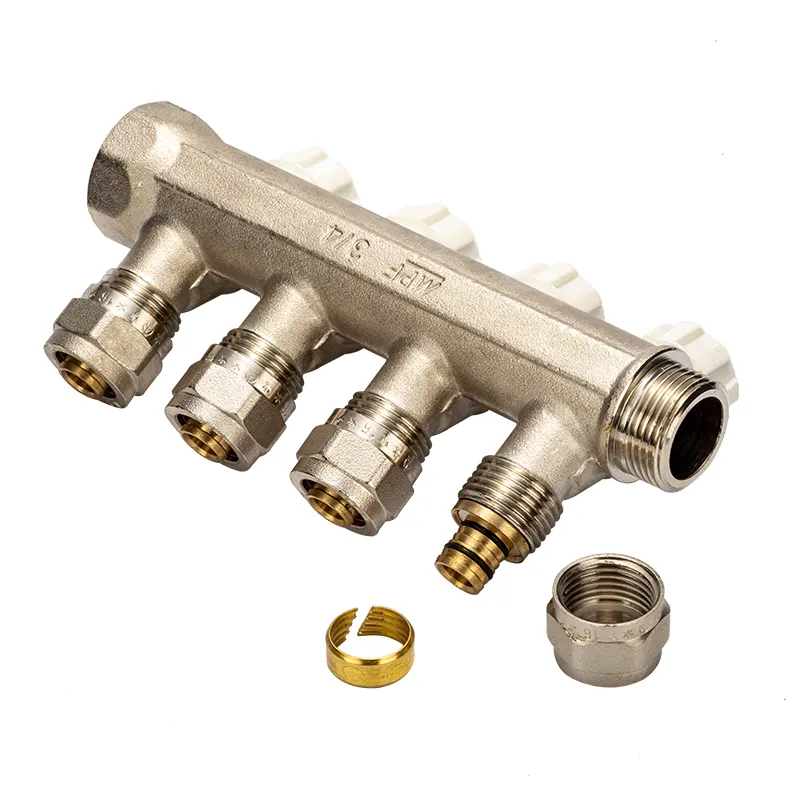

The Nickel Plated Brass Water Distribution Manifold provides a centralized connection point for multiple water lines. It can be used when one incoming supply needs to be divided into several downstream branches within a plumbing system.
By bringing multiple connections into one manifold assembly, the product can help keep branch piping organized and reduce the need to arrange numerous individual fittings around the same water supply point.

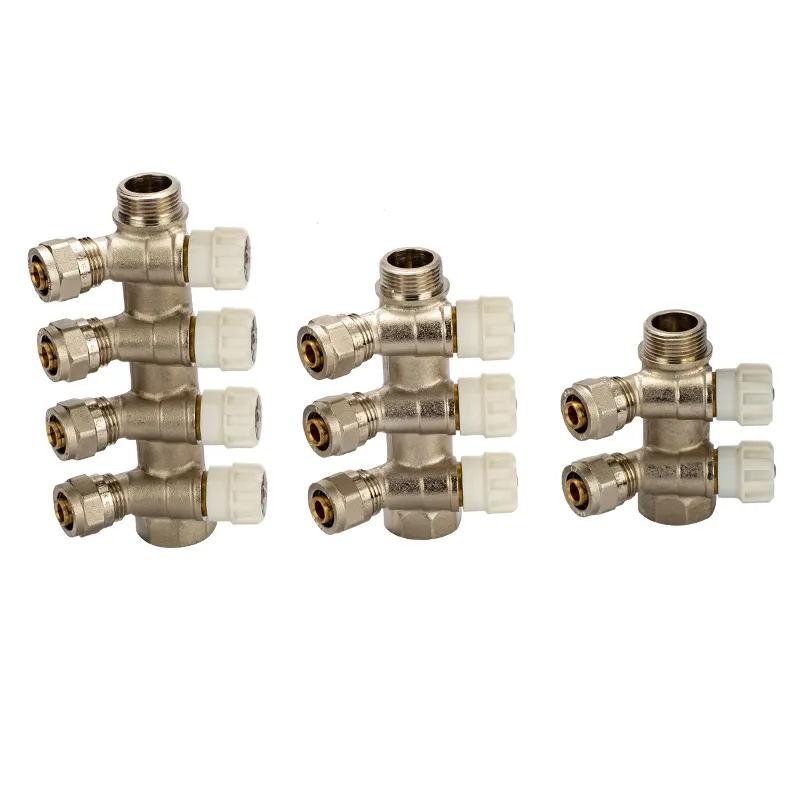

The series is available in 2-way, 3-way, 4-way, 5-way, and 6-way configurations, giving customers flexibility when selecting the number of required branch connections.
A manifold provides a practical way to bring multiple water connections together.
The incoming water supply enters the manifold and is distributed through the available outlet connections. Each outlet can then be connected to its corresponding downstream pipe or circuit according to the installation design.
The manifold itself does not change the basic function between different way configurations. The main difference between the models is the number of available outlet connections.
The manifold body is manufactured from brass and finished with a nickel-plated exterior surface.
The nickel plating gives the manifold a smooth metallic appearance, which can be useful for visible plumbing installations. The brass body provides a solid metal construction for compatible water distribution applications.
The specific brass grade and surface-treatment specification should be confirmed according to the actual product model.
One practical benefit of a multi-outlet manifold is the ability to concentrate several branch connections around a single distribution component.
This can make the overall pipe arrangement easier to organize, particularly in systems with several downstream water lines.
The actual installation should take into account the manifold dimensions, outlet spacing, pipe direction, connection standards, and available installation space.
Multiple downstream water lines can be connected to a common manifold, creating a centralized distribution point.
Different outlet quantities are available to match the number of branch connections required by the plumbing layout.
The brass construction provides a solid metal body, while the nickel-plated exterior provides a smooth metallic finish.
The integrated outlet structure can help keep several water branches together instead of using multiple separate distribution components.
The Nickel Plated Brass Water Distribution Manifold can be considered for:
Residential water systems
Building plumbing
Water supply distribution
Heating systems
Utility water lines
Commercial plumbing
Equipment water connections
Multi-branch pipework
It is suitable for applications where several compatible water lines need to be connected to one common distribution point.
The number of manifold outlets should be based on the required number of downstream branches.
A 2-way manifold is suitable for two branch connections, while higher-way configurations can be selected when more lines need to be distributed from the same supply point.
When choosing the product, customers should consider not only the number of outlets but also the inlet and outlet connection sizes, thread standard, installation space, and working conditions.
Product images can highlight the nickel-plated brass body, main inlet, multiple outlet ports, threaded connections, outlet arrangement, and overall dimensions.
The exact number of ways, connection sizes, thread standards, material specification, working pressure, and working temperature should be confirmed according to the selected product model.
A water distribution manifold is a plumbing component that provides multiple outlet connections from a common water supply point.
This product series is available in 2 to 6 ways, depending on the required number of branch outlets.
Yes. A centralized manifold can bring multiple branch connections together, which can make a multi-line plumbing arrangement more organized.
The basic distribution function is the same. The primary difference is the number of outlet connections available for downstream water lines.
Yes. The product uses a brass body with a nickel-plated exterior surface. The specific material grade should be confirmed from the product specification.
