SL-2116
SHUANGLIN

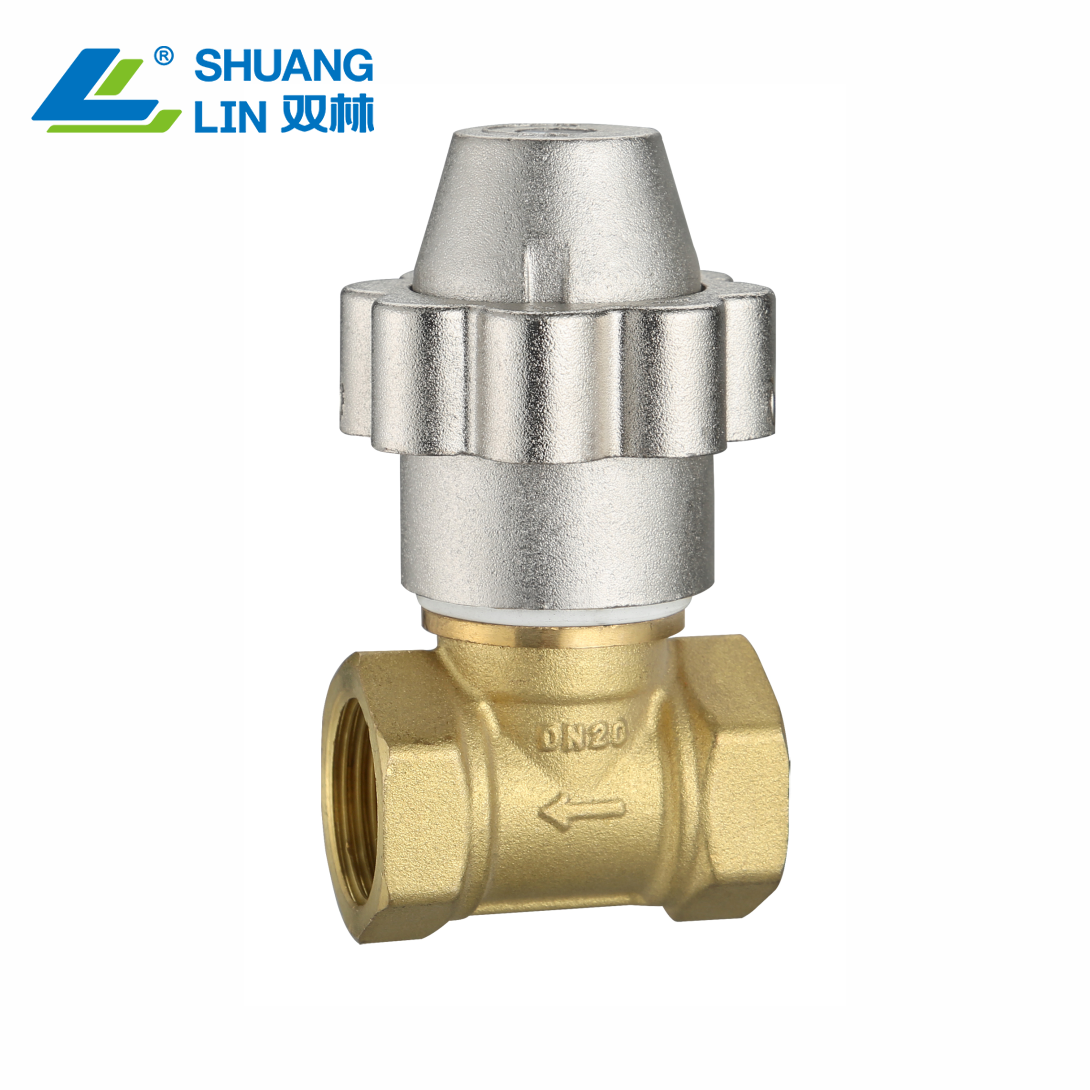

Balancing a heating or water system takes real effort — measuring flow, adjusting each branch, and fine-tuning until every zone gets what it needs. All of that work is wasted the moment someone turns a setting they shouldn't have. SHUANGLIN VALVE's magnetic locking regulating valve protects that effort with a sealed magnetic lock cap in place of an exposed adjustment dial, so a carefully commissioned flow setting stays exactly where it was left.
Like a standard lockshield-type regulating valve, this valve restricts flow through an internal adjustable orifice, and is typically set once during system commissioning to achieve a specific, calculated flow rate at that branch. The difference here is what happens after that setting is made: instead of a visible numbered dial that anyone can turn, the adjustment mechanism sits behind a sealed magnetic lock cap, opened only with a matching magnetic key. This is a different concern from SHUANGLIN VALVE's magnetic locking ball valve, which secures a valve's open/closed state against unauthorized operation — here, the goal is protecting a specific flow calibration from being nudged out of adjustment by cleaning staff, curious occupants, or well-meaning but uninformed maintenance work.

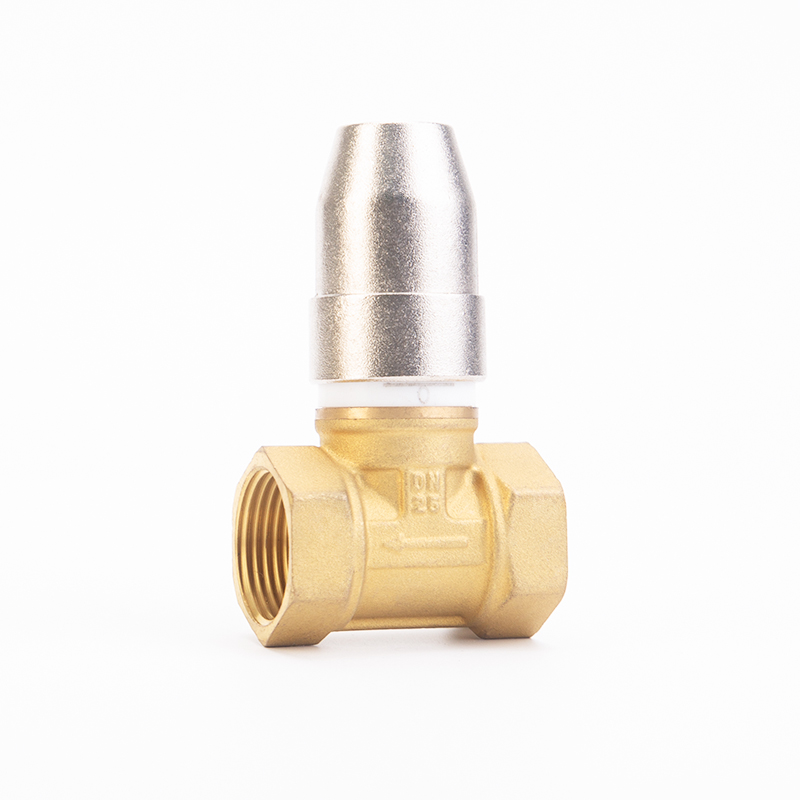

Once commissioned and locked, the valve requires the magnetic key to reopen the adjustment mechanism, whether for re-balancing, seasonal adjustment, or planned maintenance. The body carries a flow direction arrow, as this valve type is directional, and SHUANGLIN VALVE manufactures it in solid brass across the DN15 to DN50 size range, suitable for heating, chilled water, and general hydronic balancing applications.
Multi-zone heating and chilled water systems where flow settings must remain stable after commissioning
Rental and multi-tenant properties where tenants shouldn't be able to alter balanced flow rates
Commercial buildings requiring documented, protected commissioning settings
Retrofit projects where previous unauthorized adjustments have caused system imbalance
Payment: T/T (Bank Transfer)
Stock Items: Ships within 7 days
Custom Orders: 30 days production time
Logistics: Sea or air freight, with customs clearance assistance
SHUANGLIN VALVE backs every magnetic locking regulating valve with a 1-year warranty against manufacturing defects, including free repair or replacement where applicable. OEM/ODM services are available for custom flow ranges, thread types, and matched key sets for multi-valve installations.
Is this the same as SHUANGLIN VALVE's magnetic locking ball valve? No. The ball valve version locks the open/closed shut-off position to prevent unauthorized operation. This regulating valve instead locks a specific flow adjustment setting in place, protecting a commissioned balance point from being accidentally or deliberately changed.
Can the flow setting still be checked without the key? The flow setting itself is fixed mechanically once configured; the magnetic lock only prevents the adjustment mechanism from being turned. Verifying actual flow typically requires standard commissioning instruments rather than visual inspection of a dial, since the setting is concealed.
What happens if the magnetic key is lost? Losing the key means the setting can't be adjusted through normal means until a replacement or matched key is obtained. We recommend keeping a labeled spare key with facility records, and can supply replacement keys on request.
What sizes are available? SHUANGLIN VALVE produces this magnetic locking regulating valve from DN15 to DN50. Contact us with your specification for a tailored quotation.
Contact SHUANGLIN VALVE's sales team for a detailed quotation, technical drawings, or samples.
