Brass Globe Valve (Stop Valve) vs Gate Valve: How to Choose | SHUANGLIN VALVE

When selecting a brass valve for a water supply, plumbing, or HVAC system, many buyers compare two common valve types: brass globe valves and brass gate valves.

Although both valves can be used for pipeline shut-off applications, their internal structures and intended functions are different.

The key difference is:

· A brass globe valve is designed for better flow control and regulation.

· A brass gate valve is mainly designed for full opening or full closing of pipelines.

For importers, distributors, and engineering companies, choosing the correct valve type can affect system performance, installation efficiency, and long-term maintenance.

SHUANGLIN VALVE manufactures brass valves for global customers, including brass globe valves, brass stop valves, brass gate valves, and customized valve solutions.

This article explains the differences between brass globe valves and gate valves, helping buyers understand which valve is more suitable for different applications.

What Is a Brass Globe Valve (Stop Valve)?

A brass globe valve, also known as a brass stop valve, is a multi-turn valve designed to control and shut off fluid flow.

Unlike gate valves, globe valves are commonly used when the user needs to adjust or regulate flow.

The internal structure of a globe valve creates a controlled flow path, allowing the valve to perform better in applications where flow adjustment is required.

Common applications include:

· Plumbing systems

· Heating systems

· HVAC pipelines

· Water flow control systems

· Equipment connections

For projects where flow adjustment is more important than minimizing pressure loss, brass globe valves are often a suitable choice.

How Does a Brass Globe Valve Work?

A brass globe valve controls fluid flow through the movement of an internal disc.

When the valve handle is turned:

· The stem moves the disc upward or downward.

· The distance between the disc and valve seat changes.

· The flow rate can be adjusted according to system requirements.

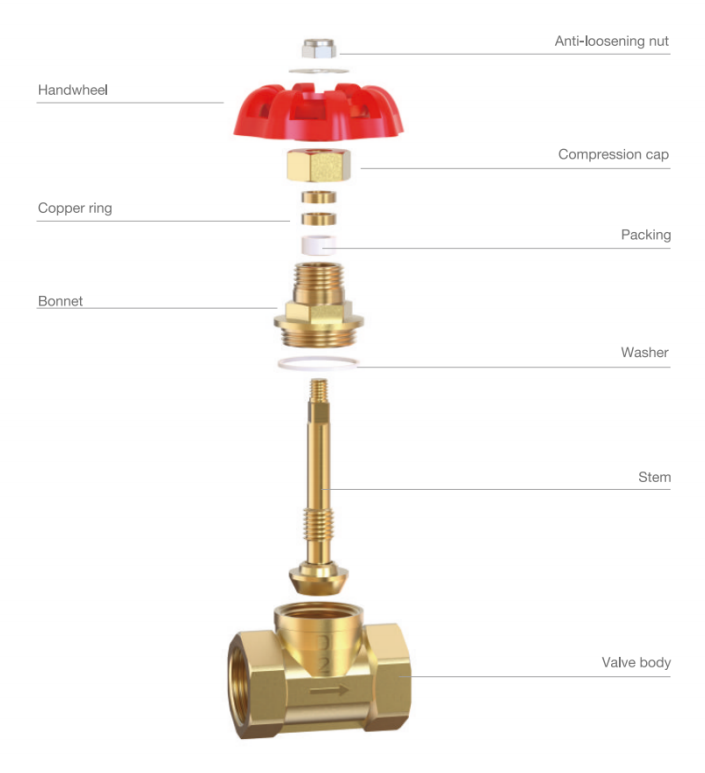

The main components include:

Valve Body

The valve body is the main pressure-bearing component.

SHUANGLIN VALVE brass globe valves use HPb59-1 brass for the valve body.

The material selection provides suitable strength and machining performance for water-related applications.

Valve Stem

The valve stem transfers operating force from the handle to the internal closing mechanism.

SHUANGLIN VALVE uses HPb57-3 brass for the valve stem according to component requirements.

Valve Cover

The valve cover supports the internal structure and provides connection between valve components.

SHUANGLIN VALVE uses HPb57-3 brass for the valve cover.

Compression Cap

The compression cap is an important component related to valve assembly and sealing performance.

SHUANGLIN VALVE uses HPb57-3 brass for the compression cap.

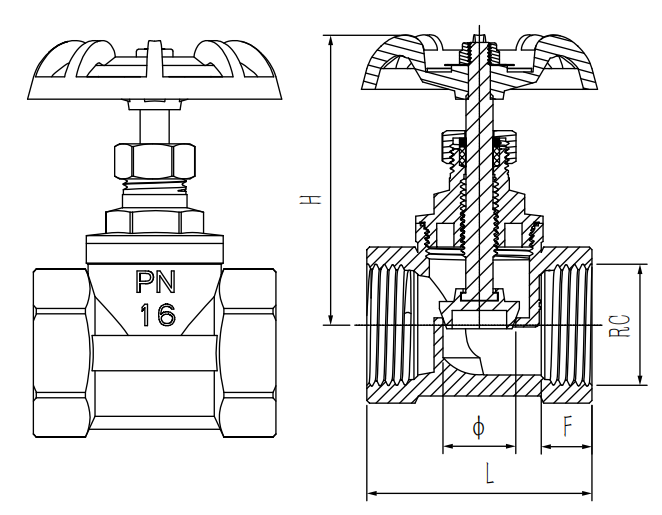

Brass Globe Valve Specifications

SHUANGLIN VALVE brass globe valves are available in sizes from:

DN15 to DN50

The common technical specifications include:

What Is a Brass Gate Valve?

A brass gate valve is a shut-off valve that uses a moving gate to control fluid flow.

When fully opened, the gate moves away from the flow passage, creating a relatively direct flow path.

Gate valves are mainly designed for:

· Full opening

· Full closing

· Pipeline isolation

They are commonly used in:

· Main water pipelines

· Building water systems

· Pipeline maintenance points

SHUANGLIN VALVE brass gate valves use a concealed stem design, also known as a non-rising stem gate valve.

The product range includes brass gate valves from DN15-DN100.

Brass Globe Valve vs Gate Valve: Key Differences

Understanding the difference between globe valves and gate valves helps buyers select the correct solution.

Flow Control Performance

Brass Globe Valve

A globe valve is designed with a structure that allows better control of flow.

It is suitable when users need to:

· Adjust water flow

· Control system balance

· Regulate pipeline operation

For HVAC and heating systems, flow adjustment is often an important requirement.

Brass Gate Valve

A gate valve is generally used when the pipeline needs to be completely opened or closed.

It is not recommended for continuous flow adjustment because partially opening the valve may increase wear on internal components.

Pressure Loss Difference

Because of their different internal structures:

Globe Valve

The flow path changes direction inside the valve, which creates higher flow resistance.

Advantages:

· Better control ability

Consideration:

· Higher pressure loss

Gate Valve

The flow passage is more direct when fully open.

Advantages:

· Lower pressure resistance

· Suitable for main pipeline isolation

When Should You Choose a Brass Globe Valve?

A brass globe valve is usually a better choice when the system requires:

Flow Regulation

Examples:

· Heating system adjustment

· HVAC water control

· Equipment flow control

Frequent Operation

Globe valves are suitable for applications where users need more precise control during operation.

Smaller Pipeline Control

Brass globe valves are commonly used in smaller pipeline systems where adjustment capability is required.

When Should You Choose a Brass Gate Valve?

A brass gate valve is usually more suitable when the requirement is:

Full Shut-Off

Examples:

· Main water pipeline isolation

· Building water supply control

· Maintenance shut-off points

Lower Flow Resistance

When the valve remains fully open for long periods, gate valves can provide a more direct flow path.

SHUANGLIN VALVE Brass Globe Valve Series

Besides standard brass globe valves, SHUANGLIN VALVE provides additional valve solutions for different applications.

Standard Brass Globe Valve

The standard brass globe valve is designed for general shut-off and flow control applications.

Typical uses include:

· Plumbing systems

· Water supply applications

· HVAC pipelines

Drain Globe Valve

Drain globe valves combine shut-off function with drainage capability.

They are suitable for applications requiring:

· Pipeline draining

· System maintenance

· Water discharge control

Brass Flow Control Valve

Flow control valves are designed for applications requiring more precise adjustment of fluid flow.

They are commonly used in:

· Heating systems

· Water circulation systems

· HVAC applications

Magnetic Lock Flow Control Valve

Magnetic lock flow control valves add controlled access functionality to flow adjustment applications.

They are suitable for systems where unauthorized operation needs to be limited.

Common applications include:

· Water management systems

· Controlled pipeline systems

How to Choose Between Brass Globe Valve and Gate Valve?

Professional buyers should consider the following factors:

1. Application Purpose

Ask:

Is the valve mainly used for:

· Flow adjustment?

· Full shut-off?

· Pipeline isolation?

Flow adjustment → Globe valve

Full isolation → Gate valve

2. Installation Location

Consider:

· Pipeline size

· Available installation space

· Maintenance requirement

3. Operating Frequency

If the valve needs frequent adjustment, a globe valve may be more suitable.

If the valve mainly stays open or closed, a gate valve may be a better choice.

4. Supplier Manufacturing Capability

A reliable brass valve manufacturer should provide:

· Stable production quality

· Clear material information

· Product customization capability

· Quality inspection process

Why Choose SHUANGLIN VALVE for Brass Globe Valves?

SHUANGLIN VALVE specializes in brass valve manufacturing, providing products for distributors, importers, and OEM customers.

Our valve solutions include:

· Brass globe valves

· Brass stop valves

· Drain globe valves

· Flow control valves

· Brass gate valves

· Customized brass valve products

For standard products:

· No MOQ requirement

· Shipment within 7 days

For customized products:

· MOQ depends on product type and size

· Typical MOQ: 3,000-5,000 pcs/model

· Production lead time: around 35 days

SHUANGLIN VALVE supports customers from product development and technical communication to manufacturing and delivery.

Frequently Asked Questions About Brass Globe Valves

What is the difference between a globe valve and a gate valve?

A globe valve is mainly used for flow control and regulation, while a gate valve is mainly used for full opening or full closing of pipelines.

What sizes are available for SHUANGLIN VALVE brass globe valves?

SHUANGLIN VALVE brass globe valves are available in sizes from DN15 to DN50.

What materials are used for brass globe valves?

The valve body uses HPb59-1 brass. The valve stem, valve cover, and compression cap use HPb57-3 brass according to component requirements.

What pressure rating do brass globe valves have?

SHUANGLIN VALVE brass globe valves are designed for PN16 pressure systems.

Does SHUANGLIN VALVE provide OEM brass globe valves?

Yes. SHUANGLIN VALVE provides standard and customized brass valve manufacturing solutions for global customers.
