SL-7127
SHUANGLIN

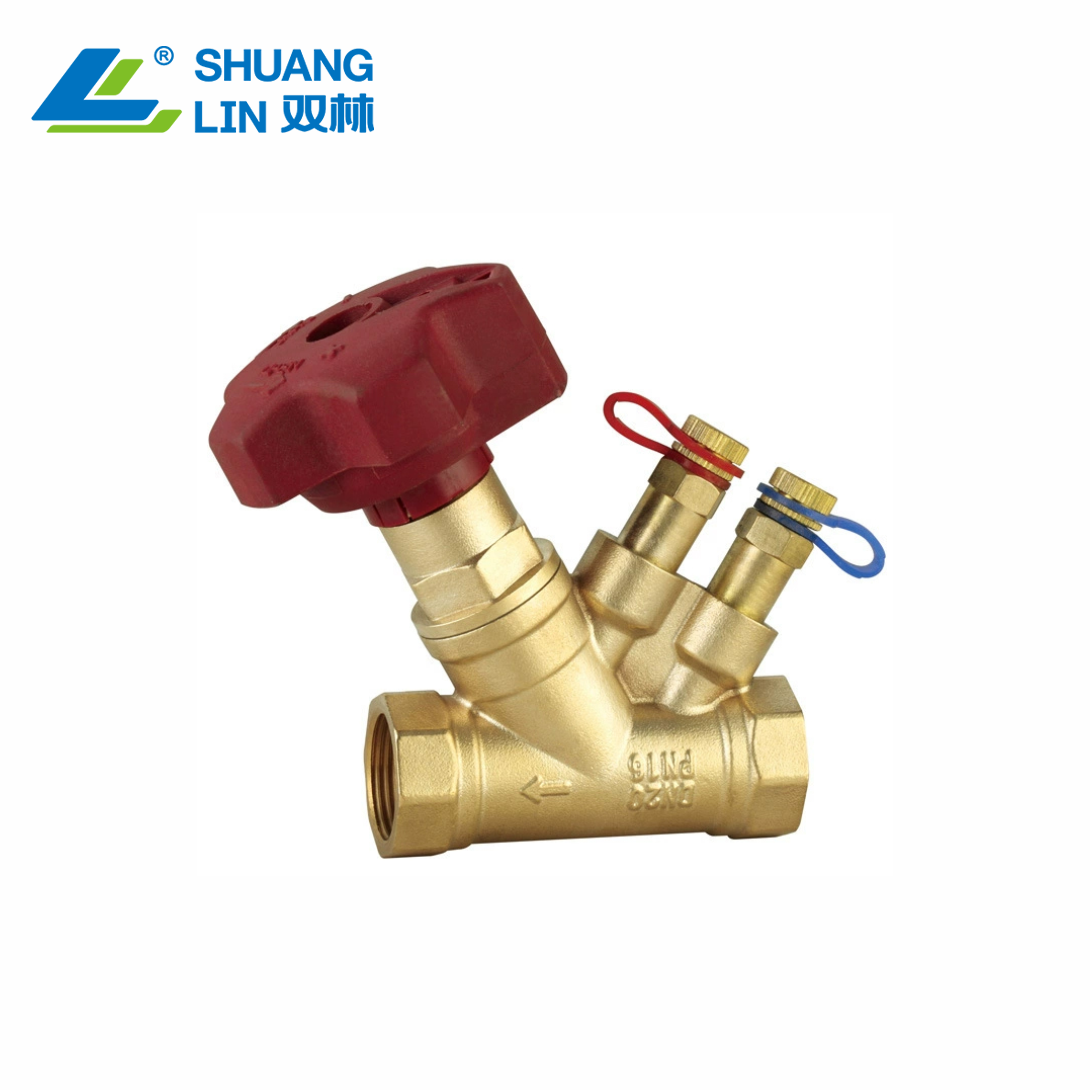

Getting a balancing valve's setting close is usually not good enough — a system that's slightly out of balance still wastes energy and leaves some zones under- or over-heated. For projects where commissioning accuracy directly affects performance and energy compliance, SHUANGLIN VALVE offers this precision version of our static balancing valve, built around a finer graduated scale for more exact flow settings.
The valve uses the same internal throttling mechanism as our standard balancing valve, but pairs it with a heavy-duty metal handwheel featuring a more finely divided scale. This makes intermediate settings easier to read and repeat accurately — an advantage on projects with many circuits to balance, where small setting errors on each valve can add up to a noticeably unbalanced system overall. The metal handwheel also holds its position more firmly than a lighter plastic wheel, reducing the risk of the setting drifting during long-term operation.

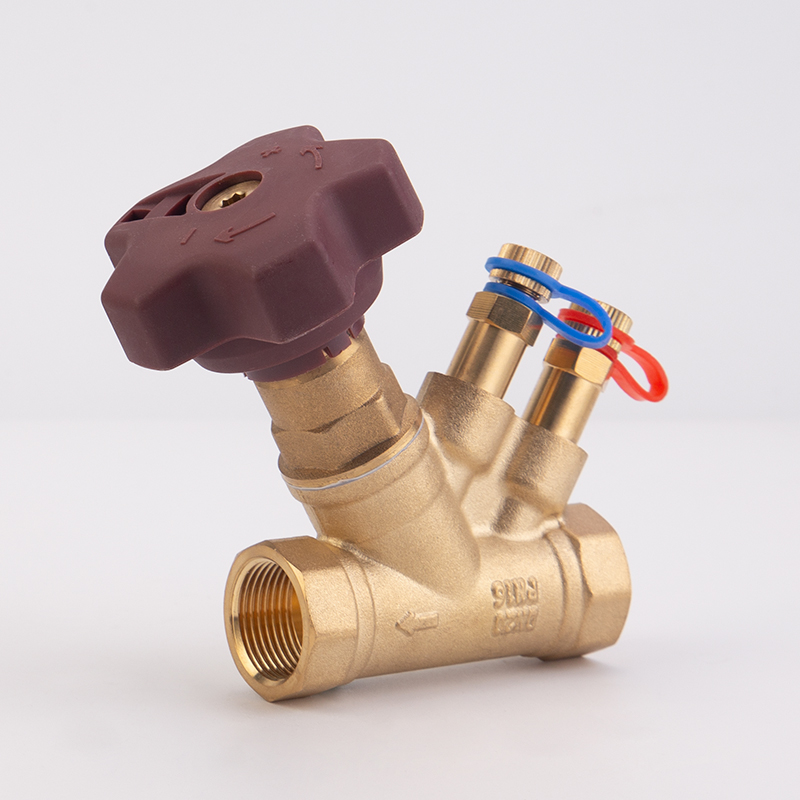

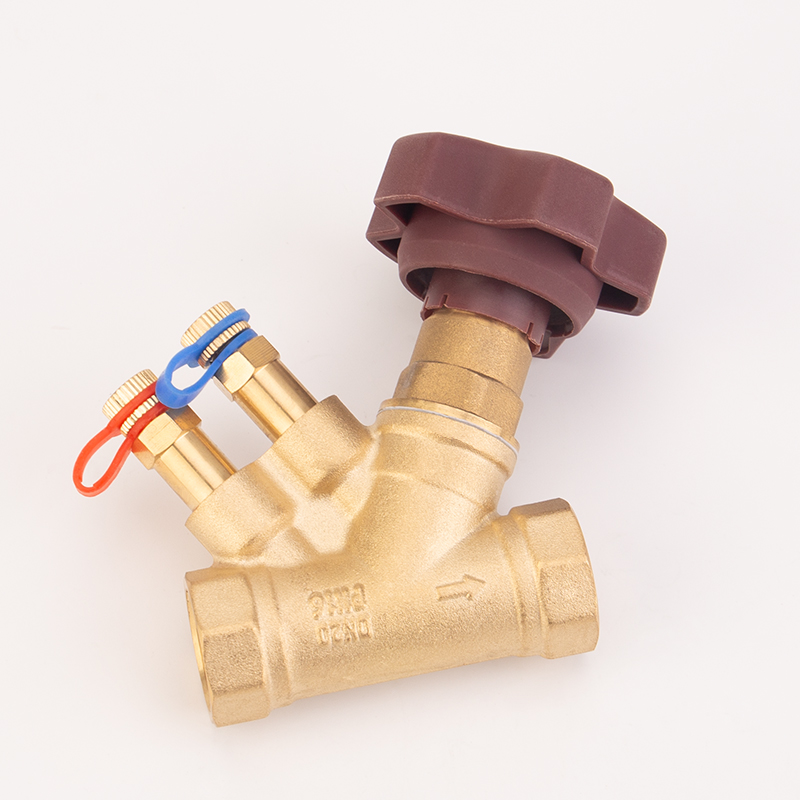

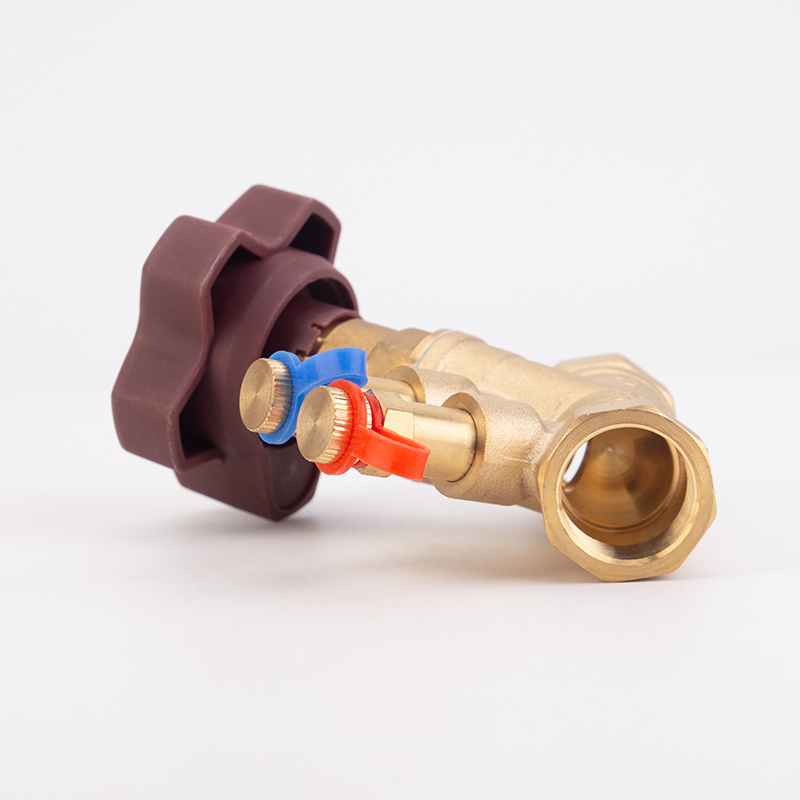

Two self-sealing measuring ports on top of the valve body — color-coded red and blue — allow a differential pressure meter to be connected directly across the valve while the system remains in operation. Technicians read the pressure differential, cross-reference it against the valve's flow chart, and adjust the handwheel to the precise scale position needed to achieve the design flow rate. Because the scale divisions are finer on this version, technicians can dial in intermediate flow rates with less guesswork than on a standard handwheel.

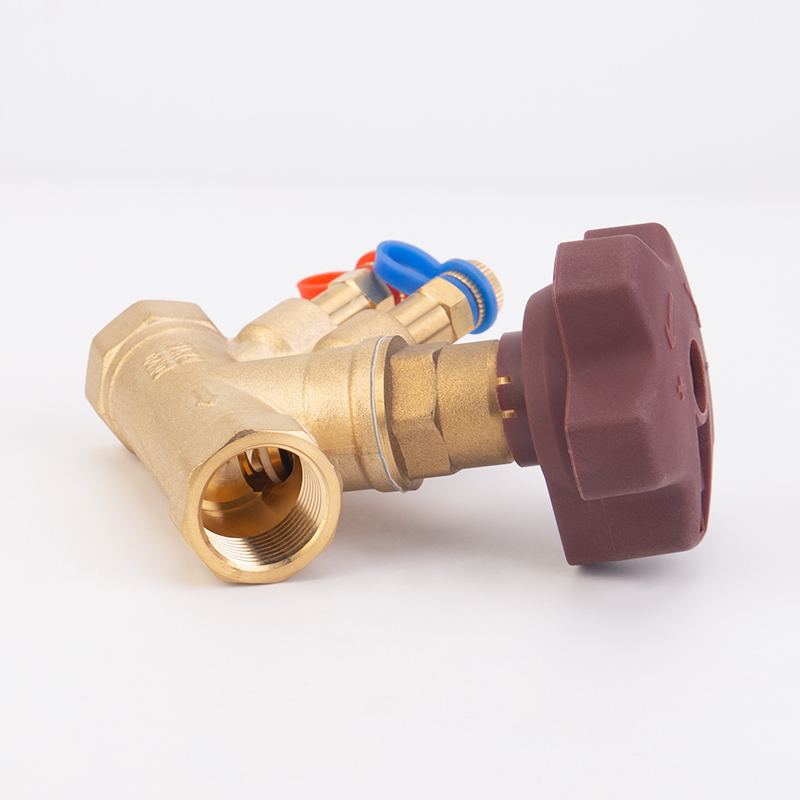

SHUANGLIN VALVE manufactures this precision balancing valve in solid brass, rated to PN16, in sizes from DN15 to DN50, with female threaded connections for standard HVAC and heating pipework. It's suited to projects where design engineers specify tight flow tolerances — commercial buildings with complex multi-zone systems, district heating networks with long branch runs, or any installation where commissioning reports need to demonstrate accurate, repeatable settings.
Commercial and institutional HVAC systems with strict commissioning requirements
District heating and cooling networks with many branch circuits
Retrofit projects requiring re-balancing to tight design tolerances
Projects requiring documented, repeatable flow settings for energy compliance reporting
Payment: T/T (Bank Transfer)
Stock Items: Ships within 7 days
Custom Orders: 30 days production time
Logistics: Sea or air freight, with customs clearance assistance
SHUANGLIN VALVE backs every precision balancing valve with a 1-year warranty against manufacturing defects, including free repair or replacement where applicable. OEM/ODM services are available for custom thread types, sizing, and private-label packaging on bulk orders.
How is this different from SHUANGLIN VALVE's standard balancing valve? Both use the same internal adjustable orifice and measuring port system. This version adds a metal handwheel with a more finely divided scale, making precise, repeatable settings easier to achieve — particularly useful on projects with many circuits to balance accurately.
Is the finer scale necessary for every project? Not always. Simple systems with only a few branches may balance adequately with a standard handwheel. Projects with many zones, tight design tolerances, or formal commissioning documentation requirements benefit most from the finer scale.
Can the setting be verified after installation? Yes. The measuring ports allow technicians to reconnect a pressure meter at any time to confirm the valve is still delivering its set flow rate, without needing to drain the system.
What sizes and thread options are available? SHUANGLIN VALVE produces this precision balancing valve from DN15 to DN50. Contact us with your specification for a tailored quotation.
Contact SHUANGLIN VALVE's sales team for a detailed quotation, technical drawings, or samples.
