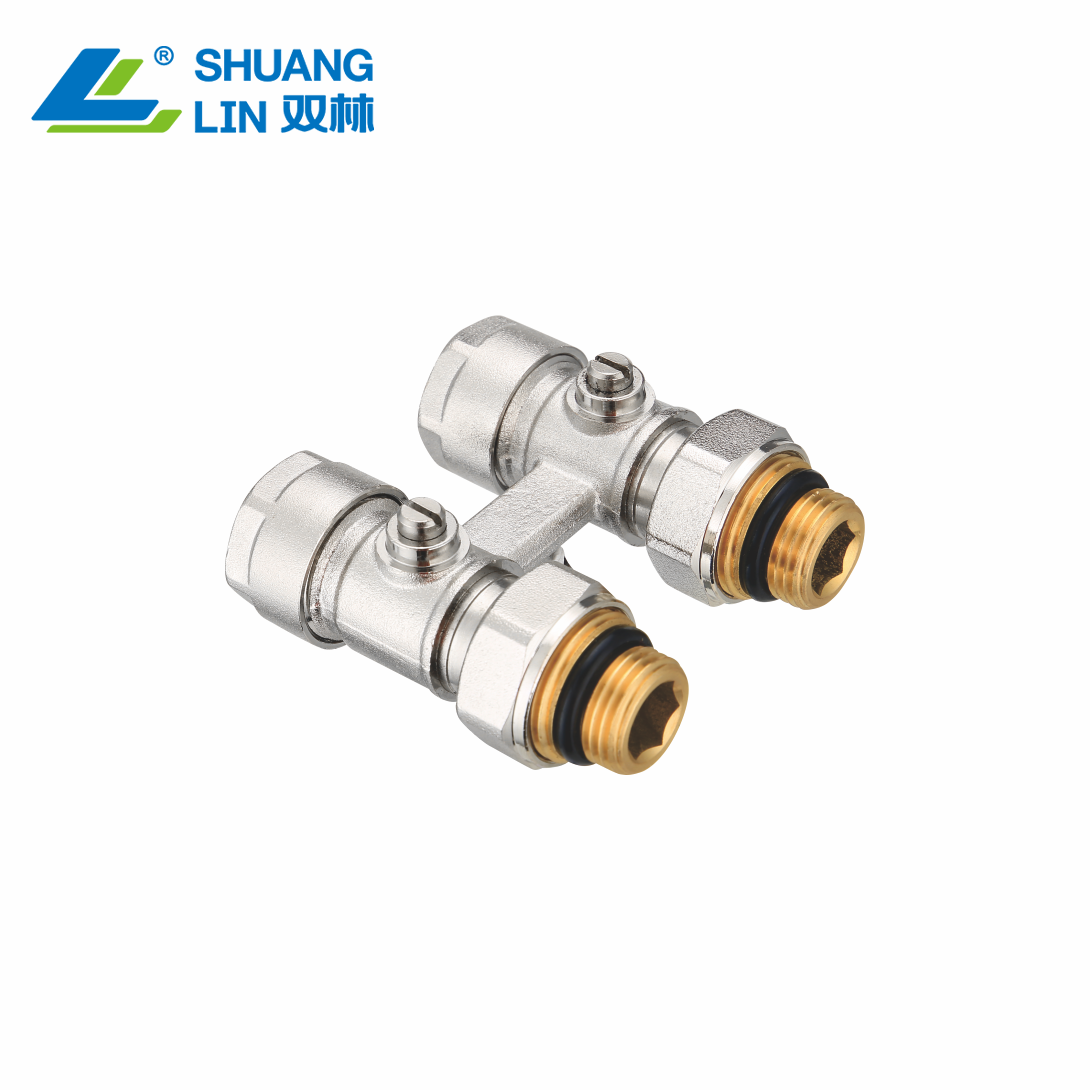

H-Type Radiator Valve (Straight Type, DN15)

Streamlined Inline Control Solution for Radiator Heating Systems

The DN15 Straight H-Type Radiator Valve is designed for heating systems that require a clean inline connection between supply and return pipework. Unlike angle configurations, the straight version is optimized for installations where pipes are aligned in a single direction, making it especially suitable for wall-mounted radiator layouts and pre-planned concealed piping systems.

By integrating supply and return paths into a single compact body, the H-type structure reduces the number of external fittings required while ensuring stable hydraulic performance. This makes it a practical choice for both new-build hydronic systems and renovation projects where space efficiency and installation speed are important considerations.

Designed for Linear Pipe Layouts

The straight configuration allows both inlet and outlet connections to follow a consistent linear direction, which simplifies alignment during installation. This design is particularly advantageous in systems where piping is routed horizontally along walls or within service channels.

Compared to more complex piping arrangements, the straight H-type valve reduces installation complexity and helps maintain a visually clean and organized pipe layout. It is especially useful in modern residential buildings where exposed pipework is minimized.

Integrated H-Type Structure for System Efficiency

The valve combines dual flow paths within a single forged brass body, ensuring that supply and return circulation remain stable and well-balanced. This integrated approach helps reduce pressure inconsistencies across radiator circuits and supports more uniform heat distribution.

The internal channel geometry is engineered to minimize turbulence, allowing water to move smoothly through the system. As a result, the heating system operates more quietly and efficiently, particularly in multi-radiator environments.

Robust Construction for Long-Term Operation

Manufactured from high-strength forged brass, the valve body offers excellent resistance to pressure, thermal cycling, and long-term mechanical stress. The nickel-plated surface provides additional protection against corrosion, making it suitable for closed-loop heating systems where water quality may vary.

Precision-machined sealing surfaces ensure tight connections and reduce the risk of leakage, even under continuous operation. This makes the valve a reliable component for systems that demand long service life with minimal maintenance intervention.

Installation Advantages in Straight-Line Systems

The straight H-type design simplifies installation in environments where pipe routing follows a direct path. Installers benefit from easier alignment, fewer directional fittings, and reduced assembly time.

Because the inlet and outlet are arranged in a linear configuration, the valve integrates naturally into prefabricated pipework systems and modular heating setups. This also makes future system expansion or modification more straightforward.

Suitable for Modern Hydronic Heating Applications

The DN15 straight H-type valve is widely applicable in residential heating systems, apartment complexes, and commercial buildings. It is compatible with most standard radiator connections and can be used in both single-zone and multi-zone heating networks.

Its compact structure makes it particularly effective in installations where space behind the radiator is limited, while still maintaining full functional performance.

Key Features

• DN15 straight H-type radiator valve

• Inline supply and return configuration for linear pipe systems

• Compact integrated design reduces external fittings

• Forged brass construction with corrosion-resistant finish

• Smooth internal flow path for stable hydraulic performance

• Reduced turbulence for quieter system operation

• High sealing reliability for long-term use

• Ideal for wall-mounted and concealed piping installations

• Suitable for residential and commercial hydronic heating systems

• Optimized for efficient installation and system maintenance

The DN15 Straight H-Type Radiator Valve provides a practical and efficient solution for linear piping layouts, offering a balance of structural simplicity, hydraulic stability, and long-term durability. Its streamlined design makes it a strong choice for modern heating systems that prioritize both performance and installation efficiency.
