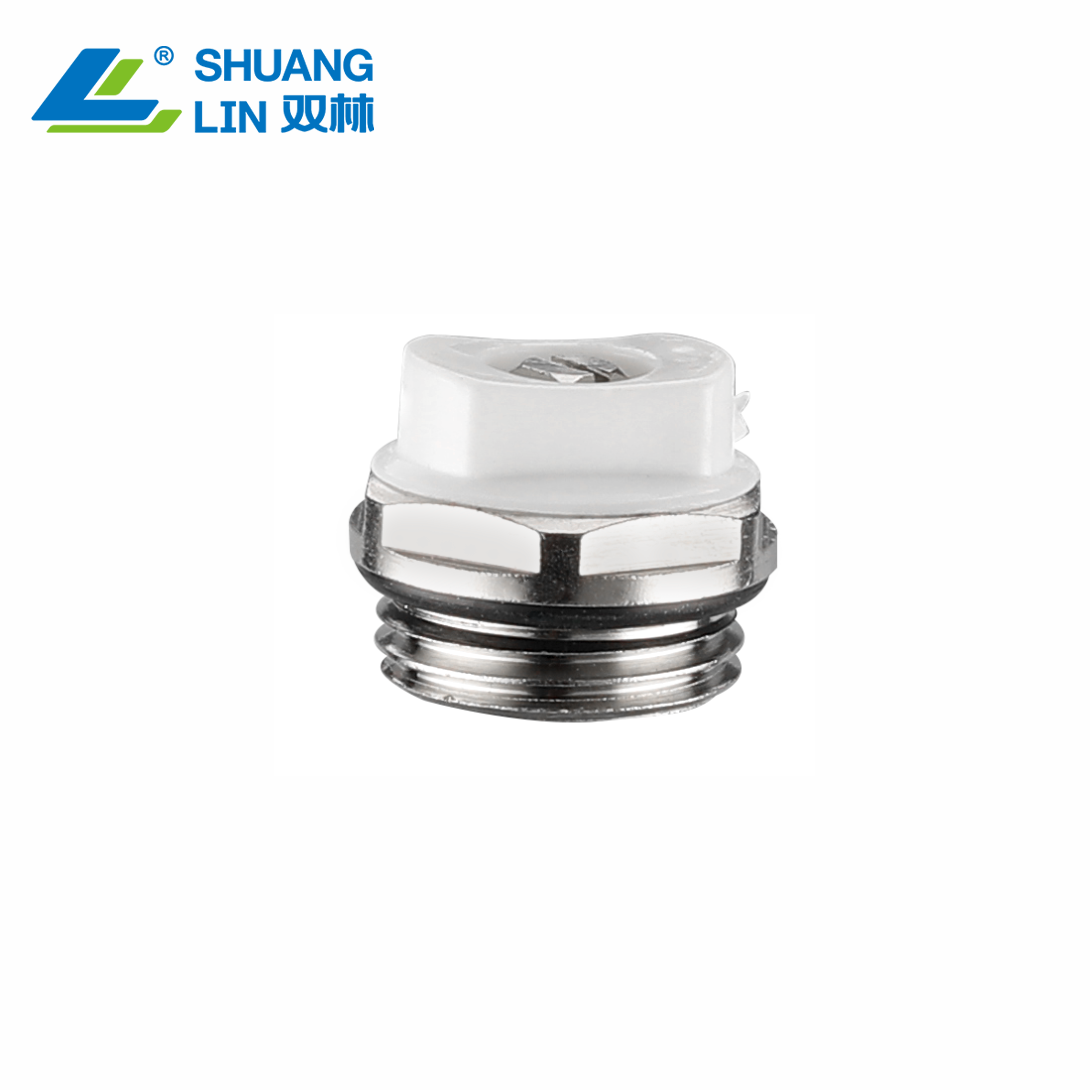

DN15 Stainless Steel Plug by SHUANGLIN VALVE for HVAC and Plumbing Systems

Product Overview

The DN15 stainless steel plug by SHUANGLIN VALVE is a reliable sealing component designed for modern piping systems. It is used to close unused pipe ends in HVAC systems, plumbing networks, and manifold installations, ensuring a secure and leak-free connection.

This plug helps maintain system pressure stability while preventing fluid leakage and contamination.

Design & Structure

Manufactured with precision, the SHUANGLIN VALVE DN15 plug features a high-strength stainless steel body combined with an integrated sealing O-ring. This structure ensures excellent sealing performance even under long-term pressure conditions.

The external threaded design allows easy installation into standard female pipe fittings, making it suitable for a wide range of system configurations.

Key Features

• Size: DN15 / 1/2”

• Material: Stainless steel (SS304 or equivalent grade)

• Thread compatibility: BSP / NPT optional

• High corrosion resistance and durability

• Built-in O-ring for enhanced sealing performance

• Compact structure for confined installation spaces

• Easy installation and removal with standard tools

Technical Specifications

• Product Type: Pipe Plug / Threaded Sealing Plug

• Size: DN15 (1/2”)

• Working Pressure: ≤ 1.6 MPa (system dependent)

• Temperature Range: -10°C to 120°C

• Material Options: Stainless steel

• Application: HVAC, plumbing, manifold systems

Applications

The SHUANGLIN VALVE DN15 stainless steel plug is widely used in:

• Underfloor heating manifold outlet sealing

• HVAC pipeline termination points

• Residential and commercial plumbing systems

• Water distribution networks

• Pressure testing and maintenance systems

It is especially useful for sealing unused ports in distribution manifolds.

Advantages

Compared with conventional sealing caps, SHUANGLIN VALVE stainless steel plugs provide:

• Stronger corrosion resistance for long-term use

• Better mechanical strength and stability

• Reliable sealing under fluctuating pressure

• Reduced maintenance requirements

• Extended service life in humid and high-temperature environments

Installation Guide

Before installation, ensure the thread interface is clean and properly aligned. Apply thread seal tape if necessary. Tighten the plug evenly to achieve a secure and leak-free connection without damaging the sealing surface.

Conclusion

The DN15 stainless steel plug from SHUANGLIN VALVE is a durable and efficient solution for sealing pipe systems. With its compact design, reliable sealing performance, and corrosion-resistant material, it is ideal for HVAC and plumbing applications requiring long-term stability.
