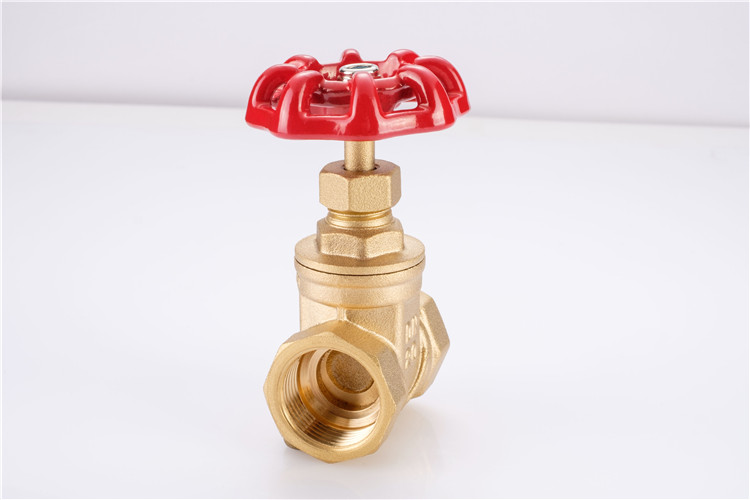

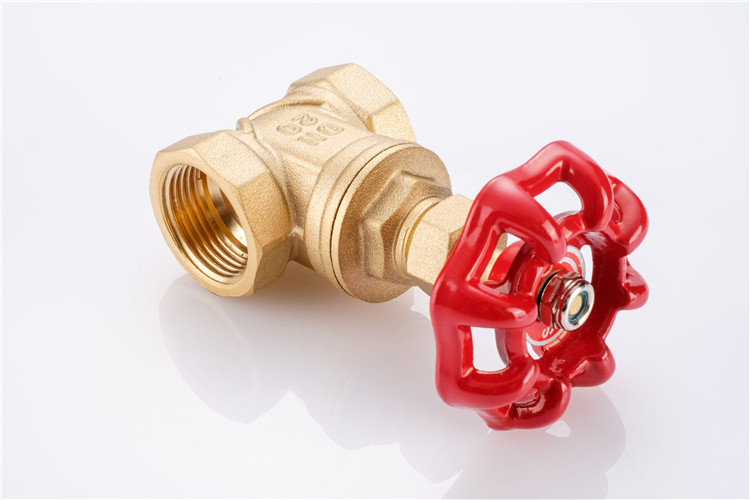

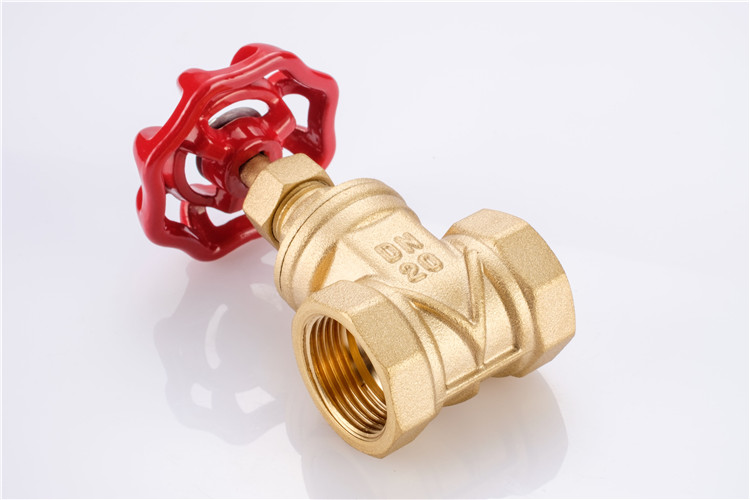

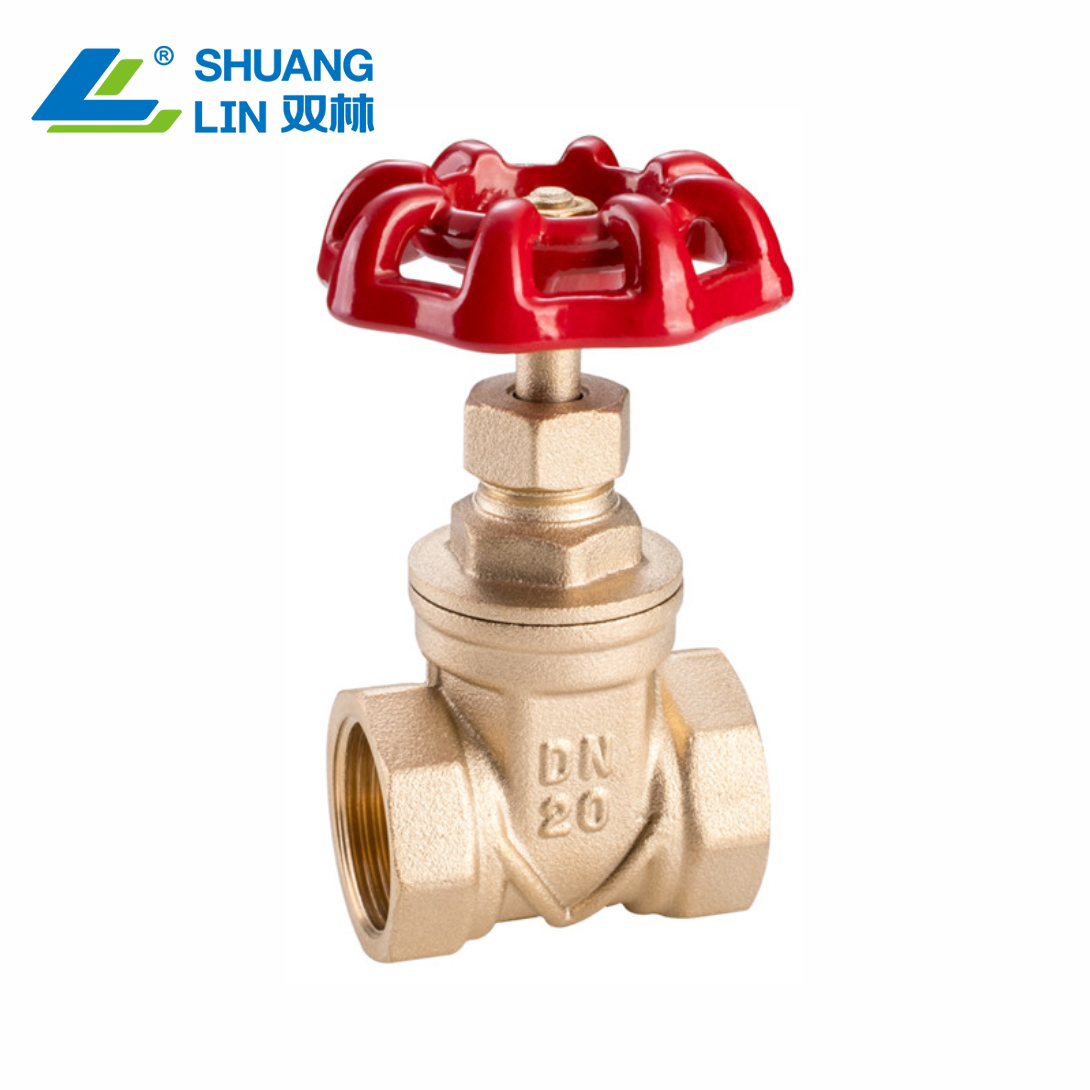

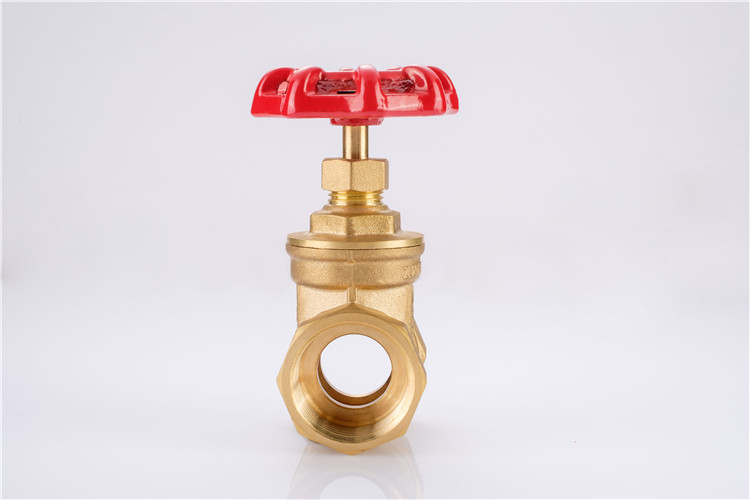

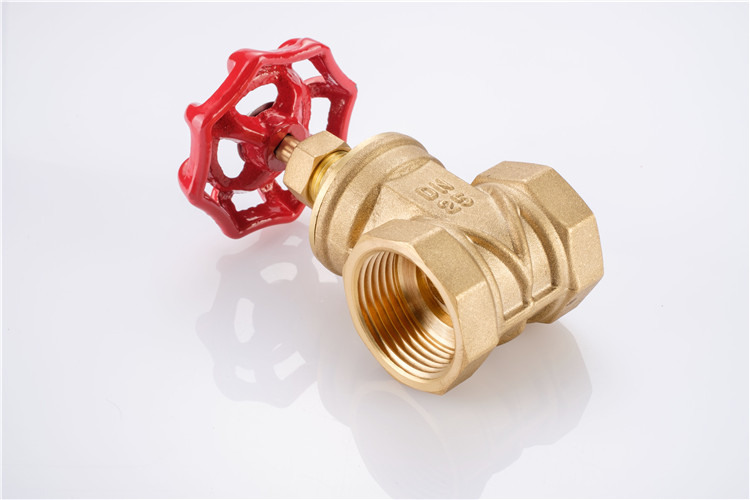

Gate Valve, DN15-DN50, for Water

Design and Construction Features of SHUANGLIN VALVE Brass Gate Valves

The design and construction of a gate valve directly impact its performance, reliability, and service life. SHUANGLIN VALVE brass gate valves incorporate several key design features that ensure superior functionality across diverse applications.

1. Straight-Through Flow Path
The straight-through design minimizes fluid resistance and allows unrestricted medium flow when the valve is fully open. This design feature reduces pressure drop and promotes efficient system operation.

2. Solid Wedge Disc
The solid wedge disc is the most commonly used disc type, valued for its simplicity and strength. It provides reliable bi-directional sealing and can be installed in any position. The disc is precision-machined to ensure tight shut-off and zero leakage.

3. Non-Rising Stem Design
The non-rising stem configuration is particularly advantageous for installations where vertical space is limited, such as underground piping networks or confined equipment rooms. The stem remains fixed in position while the gate travels up and down on threads.

4. Full Port Configuration
SHUANGLIN VALVE brass gate valves feature full port design, ensuring that the valve opening matches the inner diameter of the pipeline for maximum flow capacity. This design minimizes pressure drop and maintains system efficiency.

5. Multi-Turn Handwheel Operation
The multi-turn handwheel provides smooth, low-torque operation with clear indication of valve position. The handwheel is designed for comfortable grip and easy operation, even in demanding conditions.

6. Precision-Machined Threads
Standardized threaded connections (NPT, BSP, BSPT) ensure secure, leak-free installation. Precision machining guarantees proper fit and reliable sealing.

7. Compact Footprint
The compact design of SHUANGLIN VALVE brass gate valves makes them ideal for piping systems where space is limited, without compromising performance or reliability.
