SL-3126
SHUANGLIN

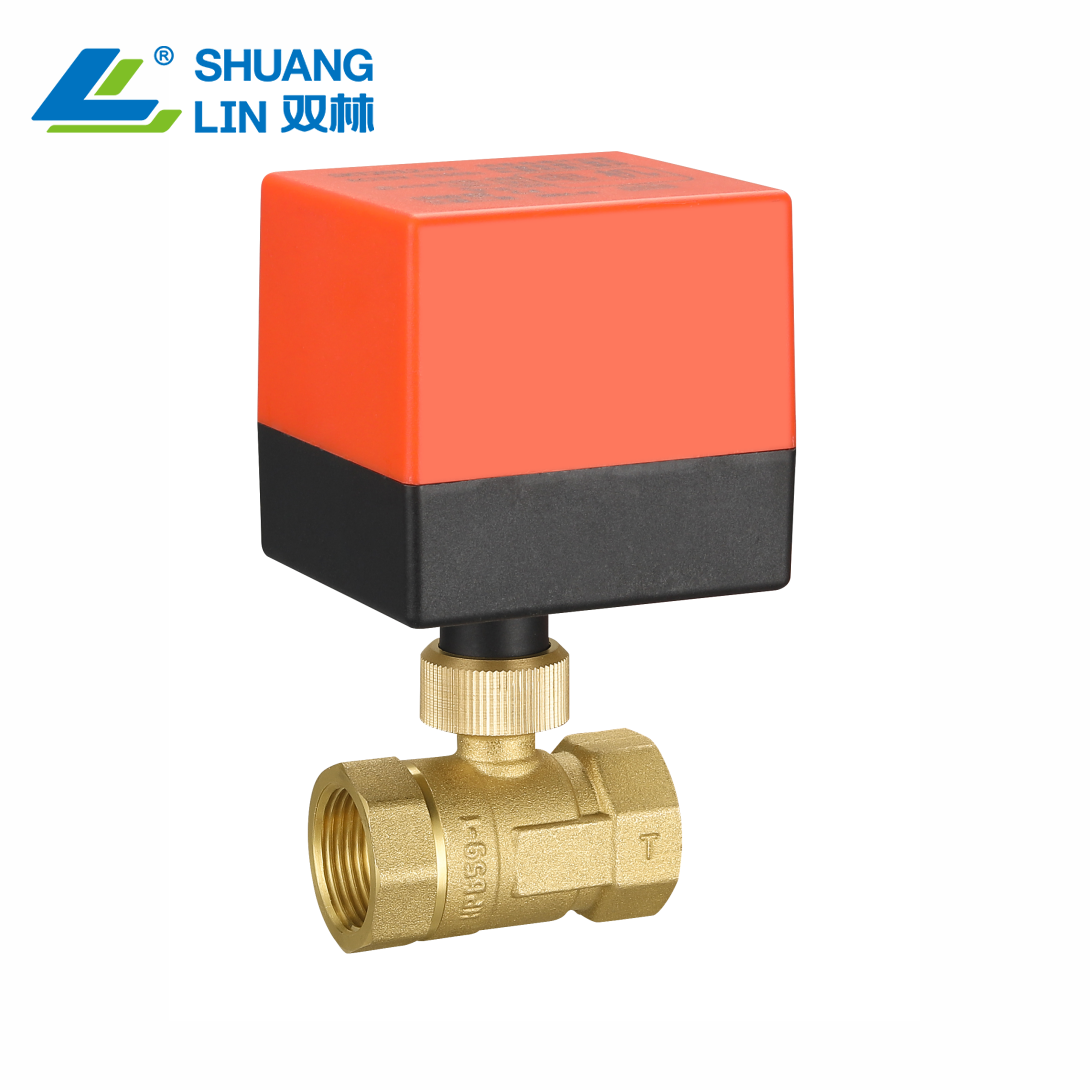

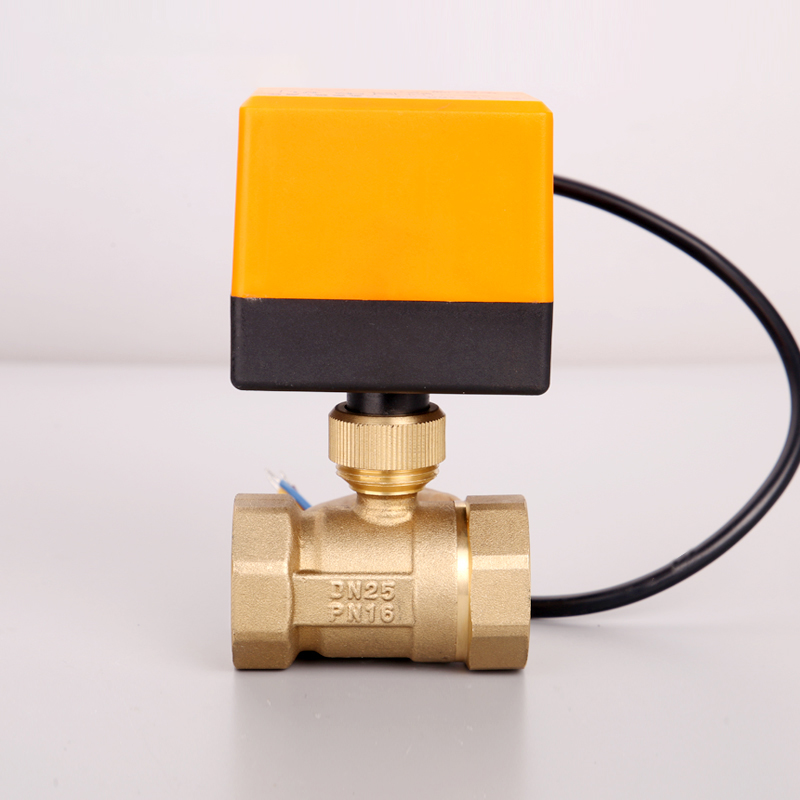

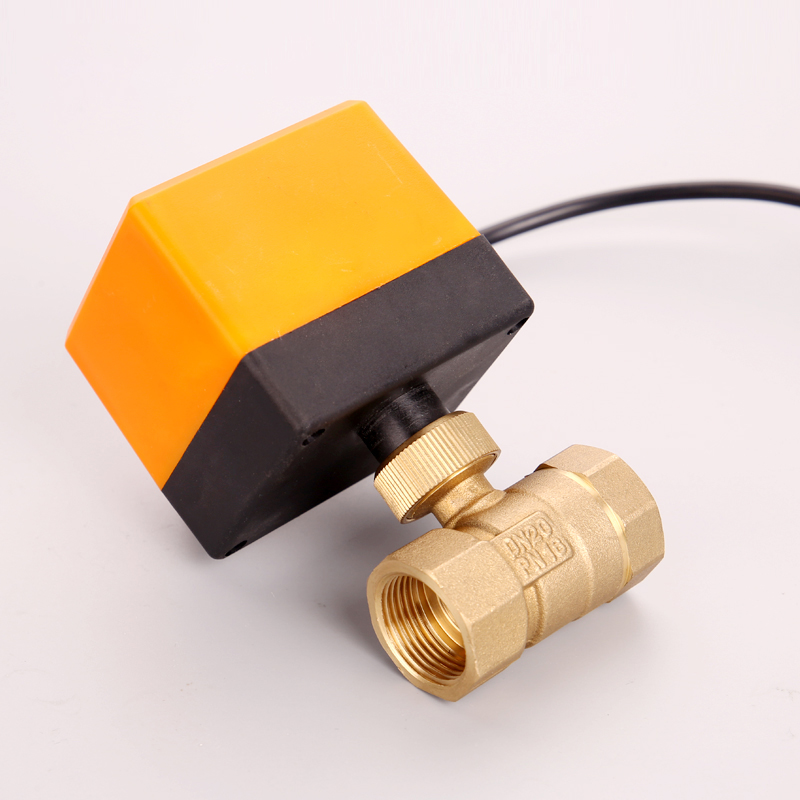

The SHUANGLIN SL-3126 electric ball valve, 3-wire 2-control type combines a brass valve body with an electric actuator for electrically controlled water flow. Its two-way design provides a direct inlet-to-outlet flow path, making it suitable for water piping systems that require automated opening and closing.
Designed for applications where manual valve operation is inconvenient or integration with an electrical control system is needed, this motorized brass ball valve is available in sizes from 1/2" to 2" (DN15–DN50). Its compact valve-and-actuator assembly can be considered for compatible water supply, heating, HVAC, and building automation applications.
Before ordering, confirm the actuator voltage, wiring diagram, connection size, and control requirements to ensure that the valve matches your system.
The two-way valve design provides a straightforward flow path between the inlet and outlet. It is suitable for water circuits that require electrically controlled flow shut-off or opening.
The valve body is made from Brass 59-1, providing a brass construction for compatible water piping applications. Material suitability should be checked against the water quality, operating conditions, and applicable project requirements.

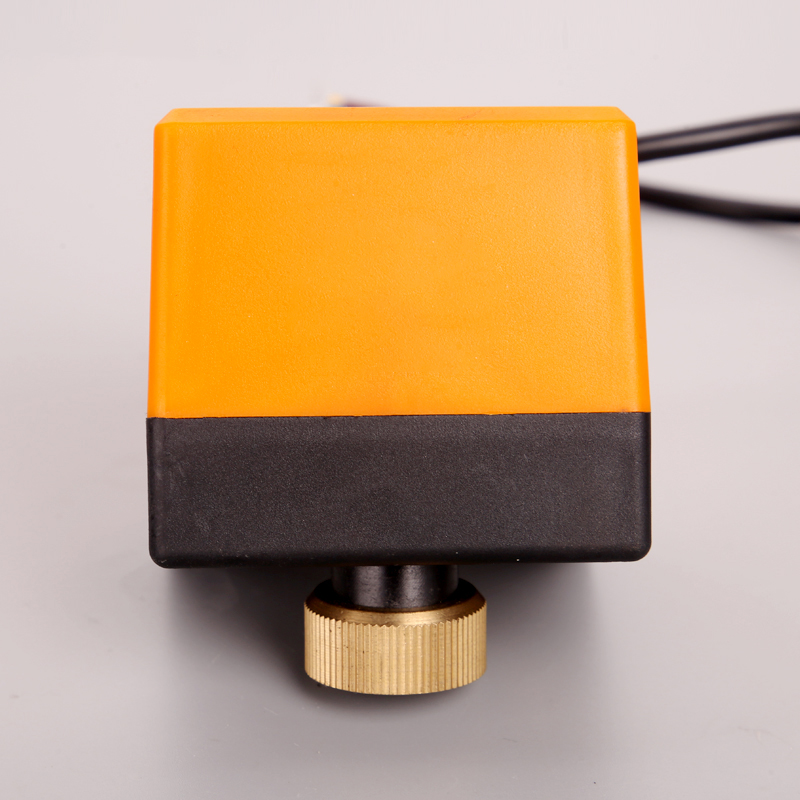

The electric actuator enables the valve to be operated through a compatible electrical control system. This can reduce the need for manual access to valves installed in equipment, utility areas, or other locations where remote operation is preferred.
This model uses a 3-wire, 2-control configuration. Buyers should verify the wiring diagram, rated voltage, control logic, and controller compatibility before installation. The exact electrical requirements should be confirmed against the actuator specifications for the selected model.
Available sizes range from 1/2" to 2", covering nominal diameters DN15, DN20, DN25, DN32, DN40, and DN50. This range allows buyers to select a valve size according to the pipeline and system requirements.
Parameter | Specification |
|---|---|
Product Name | Electric Ball Valve, 3-Wire 2-Control Type |
Model | SL-3126 |
Brand | SHUANGLIN |
Valve Type | Two-Way Motorized Ball Valve |
Valve Body Material | Brass 59-1 |
Available Sizes | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" |
Nominal Diameter | DN15, DN20, DN25, DN32, DN40, DN50 |
Nominal Pressure | ≤ 1.6 MPa |
Working Medium | Water |
Working Temperature | -10°C to 120°C |
Actuation | Electric |
Control Configuration | 3-Wire, 2-Control |
The SL-3126 can be considered for water-based systems where electrically controlled two-way flow is required and the operating conditions fall within the product's specified limits.
Typical application areas include:
Water supply systems: Electrically controlled opening and closing in compatible water distribution circuits.
HVAC water circuits: Water flow shut-off in suitable heating and air-conditioning systems.
Building automation: Integration into compatible control systems where electrical valve operation is required.
Equipment water circuits: Automated water control in machinery and auxiliary equipment.
Heating systems: Water circuit control where the valve's temperature and pressure ratings meet the system requirements.
The valve is specified for water as its working medium. Suitability for glycol mixtures, treated water containing additives, or other fluids should be confirmed with the supplier before use.
When choosing a motorized brass ball valve, buyers should evaluate more than the nominal pipe size. The actuator and control configuration must also match the intended installation.
1. Confirm the valve size. Match the nominal diameter and connection dimensions to the pipeline design. Do not select the valve based on nominal diameter alone if the connection standard is critical.
2. Check pressure and temperature. Confirm that the system's normal and maximum operating conditions are compatible with the valve's specified limits.
3. Verify actuator voltage. The power supply must match the actuator's rated voltage. Do not assume that all electric ball valves use the same voltage.
4. Check the wiring and control logic. A 3-wire, 2-control actuator may require a different control arrangement from a 2-wire, 1-control model. Review the wiring diagram and controller requirements before installation.
5. Confirm the intended operation. This is a two-way valve intended for an inlet-to-outlet flow path. If the system needs to divert or mix flow between three ports, a three-way valve may be more appropriate.
6. Review installation requirements. Confirm connection type, installation space, actuator clearance, and any applicable electrical protection requirements.

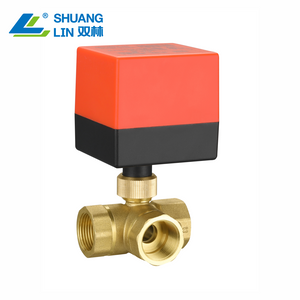

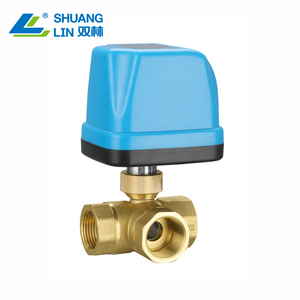

For systems requiring a different control arrangement, compare the Two-Way Motorized Brass Ball Valve, 2-Wire 1-Control. For applications requiring three-port flow switching, see the Three-Way Motorized Brass Ball Valve, 3-Wire 2-Control.
You can also explore the full range of electric valves from SHUANGLIN to compare available valve types and control configurations.
For OEM projects, distributors, and equipment manufacturers, choosing a valve supplier involves more than matching a product to a specification sheet. Material verification, production consistency, and clear technical communication are also important.
SHUANGLIN's manufacturing and quality-control processes include incoming material verification, production inspections, and pneumatic tightness testing of finished valves. The company also offers OEM/ODM services for suitable products and project requirements.
When requesting a quotation for the SL-3126, provide the required quantity, nominal size, connection standard, actuator voltage, wiring diagram requirements, and intended application. This information helps the supplier confirm whether the selected configuration is suitable for your project.
It identifies the actuator's electrical wiring and control configuration. The exact wire functions and control logic depend on the actuator design. Buyers should confirm the wiring diagram and rated voltage for the SL-3126 before connecting it to a controller.
The product page lists sizes from 1/2" to 2", corresponding to DN15 through DN50.
The listed nominal pressure is ≤ 1.6 MPa. The permissible operating conditions should be confirmed for the selected valve size and installation.
The product page specifies water as the working medium. For glycol solutions, chemical additives, or other fluids, consult the supplier to verify material compatibility and operating limits.
A two-way valve provides an inlet-to-outlet flow path and is commonly used for opening and closing a water circuit. A three-way valve has three ports and can be used for flow switching or distribution, depending on its internal port arrangement.
Provide the required size, quantity, working pressure and temperature, actuator voltage, wiring and control requirements, connection standard, and intended application. If the valve must connect to an existing controller, include the relevant electrical specifications.
Looking for a 3-wire 2-control electric ball valve for your water piping or automation project?
Contact SHUANGLIN to confirm the SL-3126 specifications, actuator compatibility, available sizes, and OEM requirements. Providing your pipeline and electrical control details will help ensure that the selected valve matches your application.
