SL-8013
SHUANGLIN

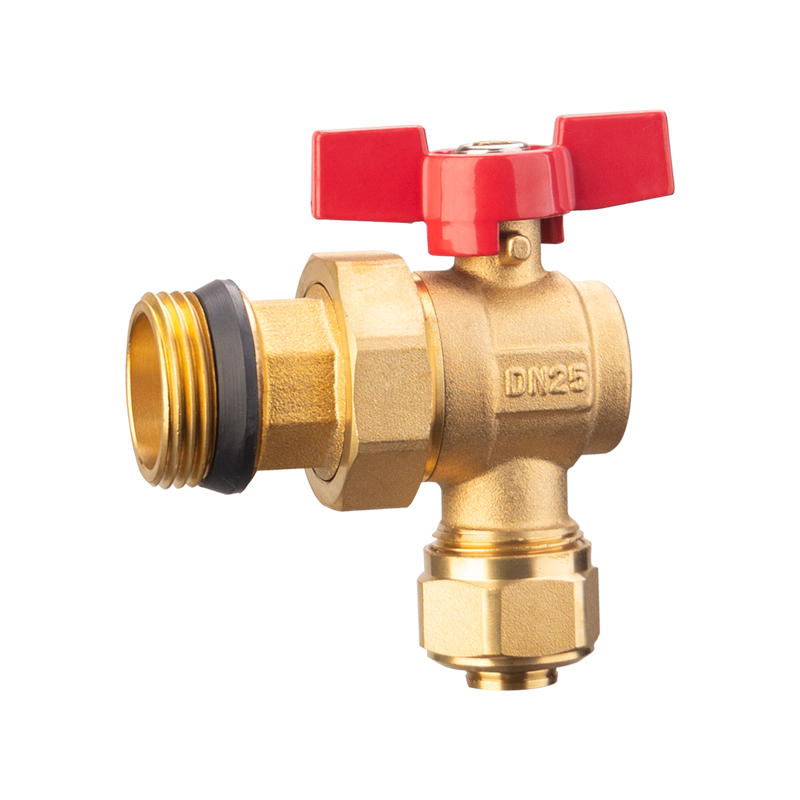

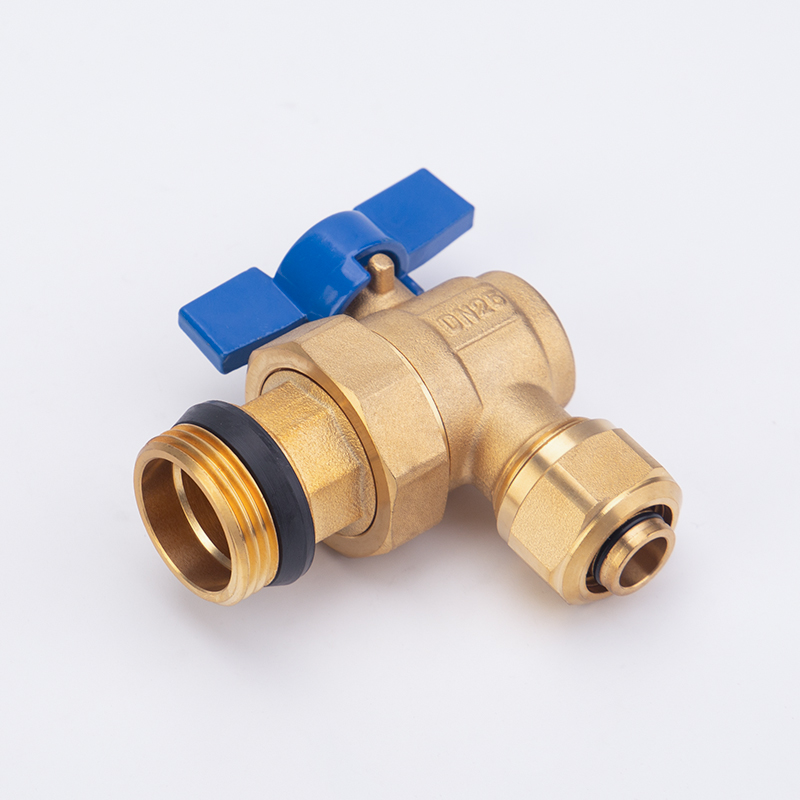

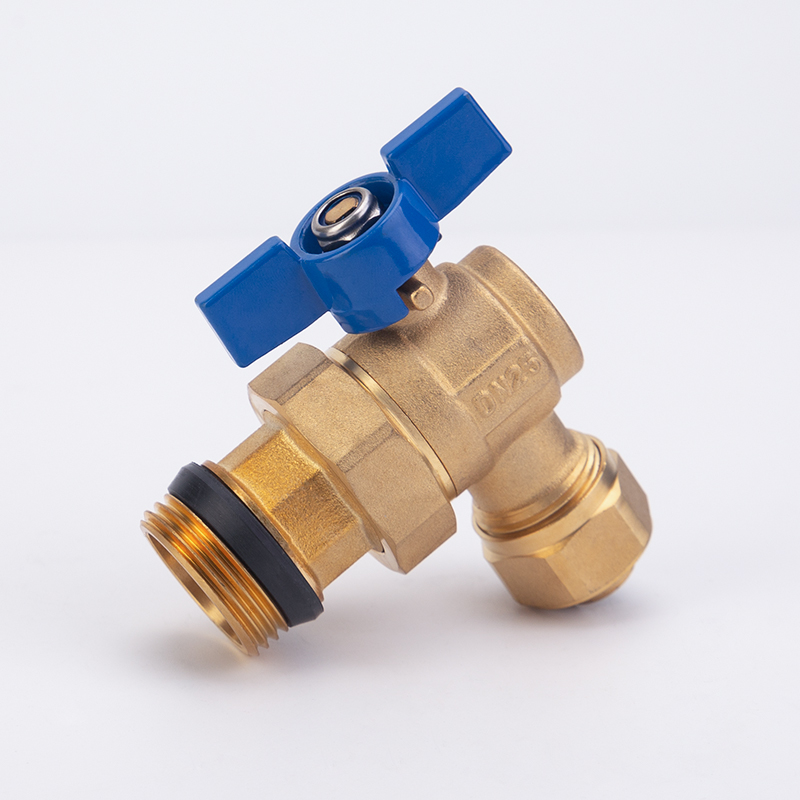

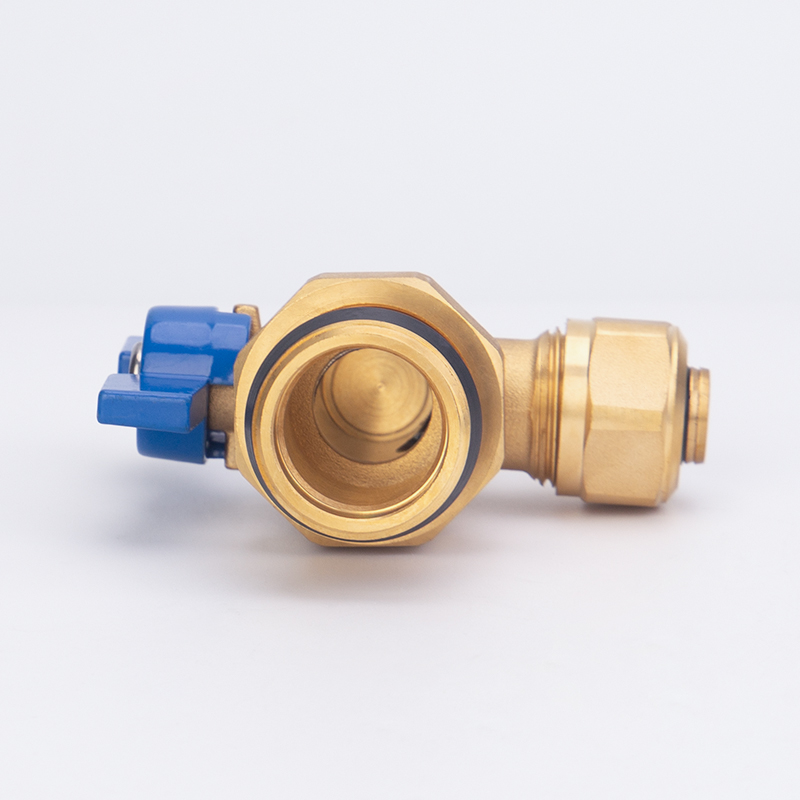

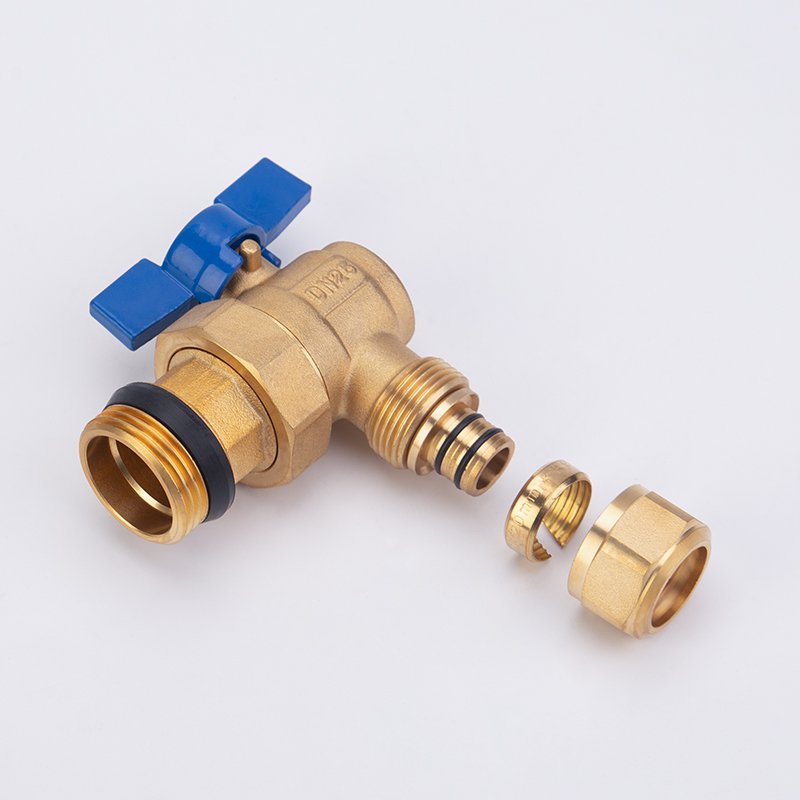

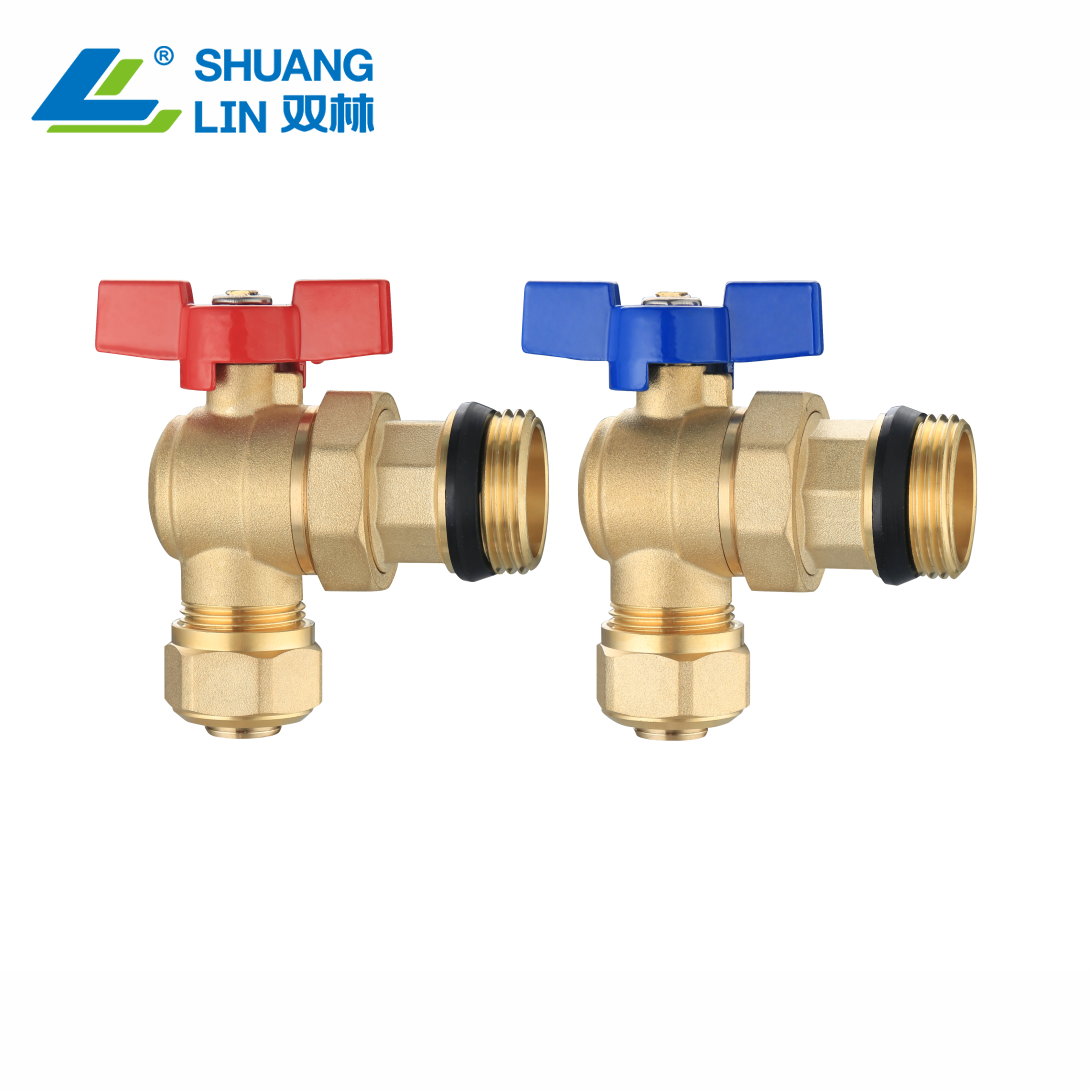

The Brass Angle Ball Valve set from SHUANGLIN VALVE is designed for hot and cold water pipeline systems that require compact installation and reliable shut-off control. This product is supplied as a matched pair of two valves, one red-handled and one blue-handled, typically used to distinguish hot and cold water lines in plumbing systems.
The angle structure allows the flow direction to change by 90 degrees, making it ideal for installations where space is limited or where piping needs to be routed along walls or inside concealed plumbing boxes.
This set includes two specifications: DN25×20×2.0 and DN25×25×2.5, providing flexible connection options for different pipe transitions within the same system.
This angle ball valve operates through a butterfly handle mechanism, allowing quick manual rotation to control water flow. The internal ball structure ensures tight sealing performance when fully closed, preventing leakage in both hot and cold water conditions.
The angled body design reduces the need for additional pipe fittings, helping installers achieve cleaner and more efficient piping layouts. It also improves system stability by minimizing unnecessary pressure loss caused by extra elbows or adapters.
The product is suitable for domestic water supply systems as well as light commercial plumbing networks.
Angle-type structure for 90° flow direction change
Butterfly handle for easy manual operation
Designed for hot and cold water systems
Supplied as a matched red/blue valve set
DN25 inlet with DN20 (2.0) and DN25 (2.5) outlet configurations
Compact design suitable for concealed installation
Reliable shut-off performance with low leakage risk
The combination of two different outlet sizes allows flexible adaptation to mixed pipeline systems without additional fittings.
This brass angle ball valve set is widely used in modern plumbing and HVAC-related water systems, especially in residential and light commercial environments.
Typical applications include bathroom water distribution, kitchen plumbing systems, residential hot water supply networks, and building utility installations where compact valve positioning is required.
The color-coded butterfly handles (red and blue) make it easy to identify hot and cold water lines during installation and maintenance, reducing operational errors and improving system clarity.
The angle structure significantly simplifies piping layout by reducing the number of required joints and fittings. This not only lowers installation cost but also reduces potential leakage points in the system.
Because the valve is designed for compact spaces, it is particularly suitable for wall-mounted installations or confined mechanical areas. The butterfly handle also allows easy operation even in narrow environments where traditional handles would be difficult to use.
Each SHUANGLIN VALVE brass angle ball valve is manufactured under strict quality control standards, including sealing tests and dimensional inspection. The brass body is processed to ensure stable mechanical strength and long-term durability in water system applications.
Our production focuses on delivering reliable plumbing components for global HVAC and water distribution markets, ensuring consistent performance across different installation environments.
The Brass Angle Ball Valve Set (DN25×20×2.0 / DN25×25×2.5) from SHUANGLIN VALVE is a practical and reliable solution for hot and cold water systems. Its compact angle structure, dual-size configuration, and color-coded butterfly handle design make it an efficient choice for modern plumbing installations.
If you are looking for a stable and cost-effective brass angle valve supplier from China, SHUANGLIN VALVE provides dependable products designed for long-term water system performance.
